Schneider Electric NSYEC781
One entry cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W700 D800mm, fixed by clips
- MPN
- NSYEC781
- EAN
- 3606480211508
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC781?

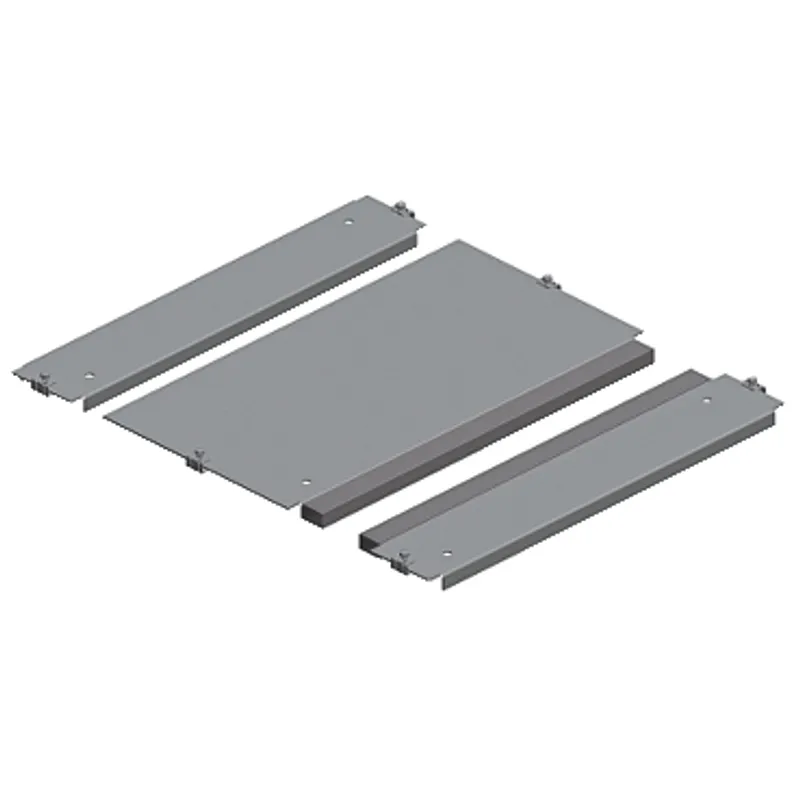

This is a multi-purpose 1-entry cable gland plate for PanelSeT SFN, PrismaSeT and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 700 and 800 mm respectively. The set contains one plate with 1-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Prisma application, Multi-purpose |
| Range compatibility | Prisma Prisma PH, PanelSeT PanelSeT SFP SFP |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 1 entry |
| Device composition | Fixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Width | Nominal: 700 mm, Useful: 516 mm |
| Depth | Nominal : 800 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 3.000 cm × 34.500 cm × 55.000 cm (L × W × H), 5.488 kg |
| Package 2 | 40 P12, 120.000 cm × 80.000 cm × 46.000 cm (L × W × H), 233.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEC781: frequently asked questions
When can NSYEC781 be shipped?
NSYEC781 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEC781 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEC781 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEC781, subject to availability and destination.
