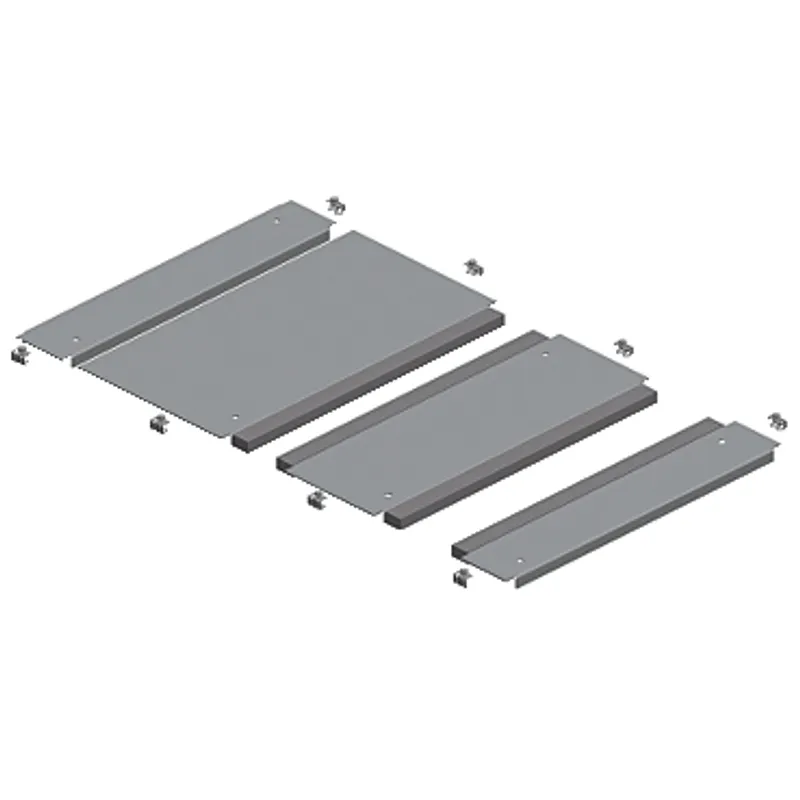

Schneider Electric NSYEC6122
Two entries cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W600 D1200mm, fixed by clips
- MPN
- NSYEC6122
- EAN
- 3606480064135
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYEC6122 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC6122?
This is a multi-purpose 2-entry cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 600 and 1200 mm respectively. The set contains one plate with 2-entry, polyurethane adhesive gasket with cross-section of 15 x 25 mm and fixing elements. The cable gland plate is to be mounted on enclosure bottom. "This product is qualified as a green premium, with minimal use of hazardous substances."
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 2 entries |
| Device composition | Fixing elements, 1 plate, self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 24 mm |
| Width | Nominal: 600 mm, Useful: 416 mm, Real: 444 mm |
| Depth | Nominal : 1200 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 45.000 cm × 44.500 cm × 3.000 cm (L × W × H), 6.566 kg |
| Package 2 | 4 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 26.264 kg |
