Schneider Electric NSYEC6102
PanelSeT SF 2 entries cable gland plate - fixed by clips - 600x1000 mm
- MPN
- NSYEC6102
- EAN
- 3606480064104
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

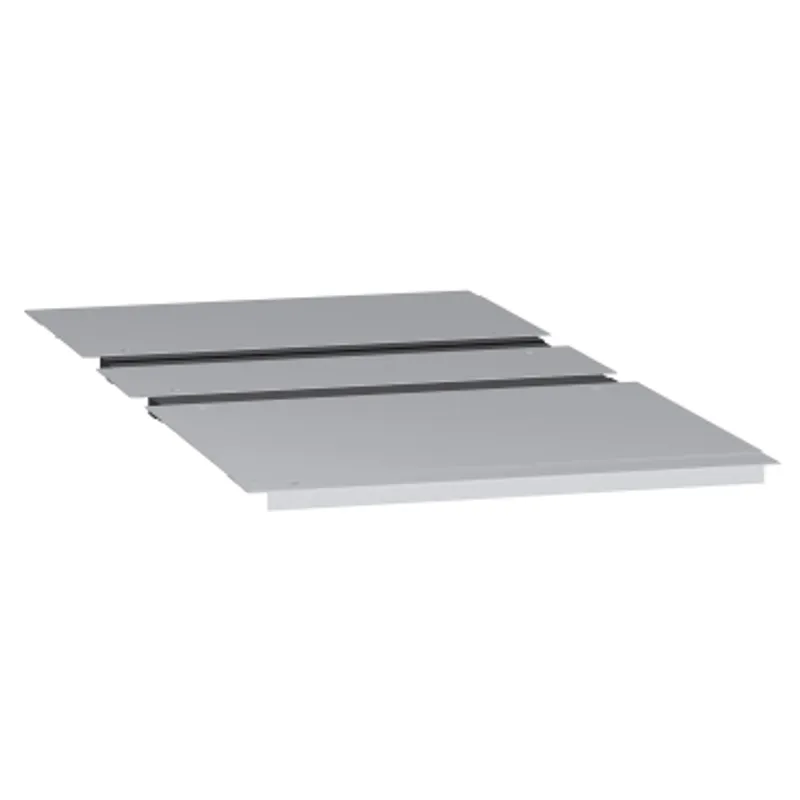

What is the Schneider Electric NSYEC6102?
Electronic application cable gland plate with 2 entries for PanelSeT SF enclosures The product is made of galvanised steel The plate is 1,5mm thick The nominal width is 600mm, useful width is 416mm and real width is 444mm The height is 24mm The nominal depth is 1000mm The set contains fixing elements, 1 plate and 15 x 25 mms The cable gland plate is to be mounted on enclosure bottom
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Electronic application |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 2 entries |
| Device composition | Fixing elements, 1 plate, self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 24 mm |

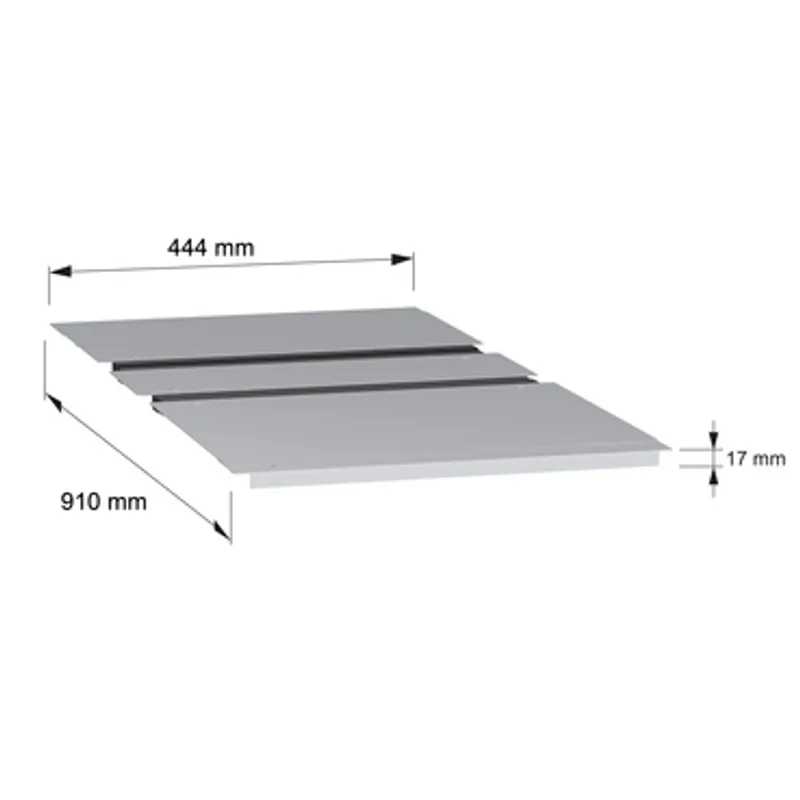

| Width | Nominal: 600 mm, Useful: 416 mm, Real: 444 mm |
| Depth | Nominal : 1000 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 45.000 cm × 35.000 cm × 3.000 cm (L × W × H), 5.440 kg |
| Package 2 | 5 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 27.200 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEC6102: frequently asked questions
When can NSYEC6102 be shipped?
NSYEC6102 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEC6102 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEC6102 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEC6102, subject to availability and destination.
