Schneider Electric
NSYEC462Two entries cable gland plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure W400 D600mm, fixed by clips
Schneider Electric NSYEC6101

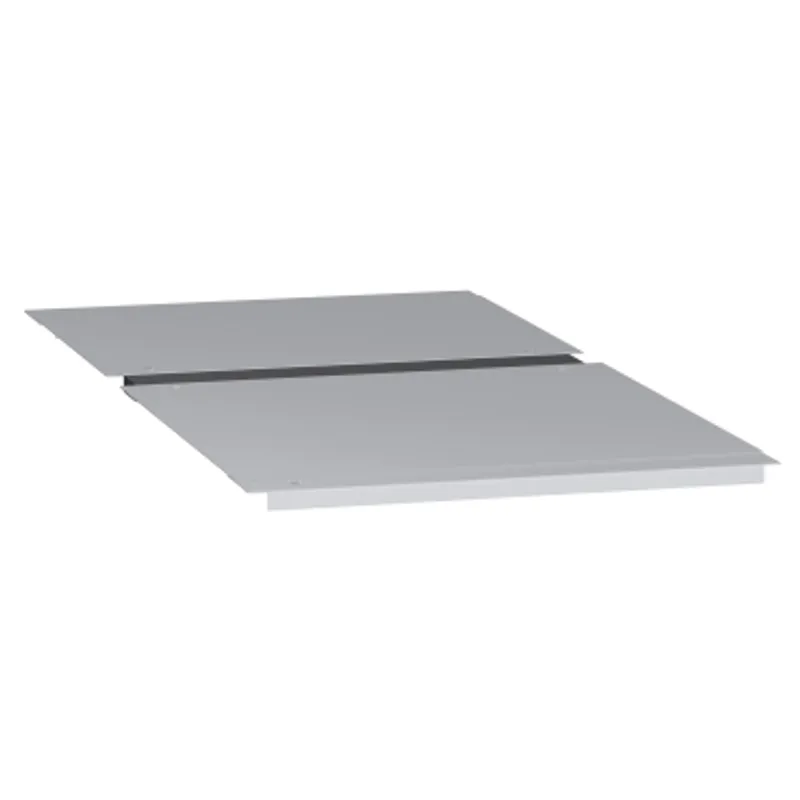

PanelSeT SF 1 entry cable gland plate - fixed by clips - 600x1000 mm
- MPN
- NSYEC6101
- EAN
- 3606480064098
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC6101?
Electronic application cable gland plate with 1 entry for PanelSeT SF enclosures The product is made of galvanised steel The plate is 1,5mm thick The nominal width is 600mm, useful width is 416mm and real width is 444mm The height is 22mm The nominal depth is 1000mm The set contains fixing elements, 1 plate and 15 x 25 mms The cable gland plate is to be mounted on enclosure bottom
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Electronic application |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | 1 entry |
| Device composition | Fixing elements, 1 plate, self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 22 mm |

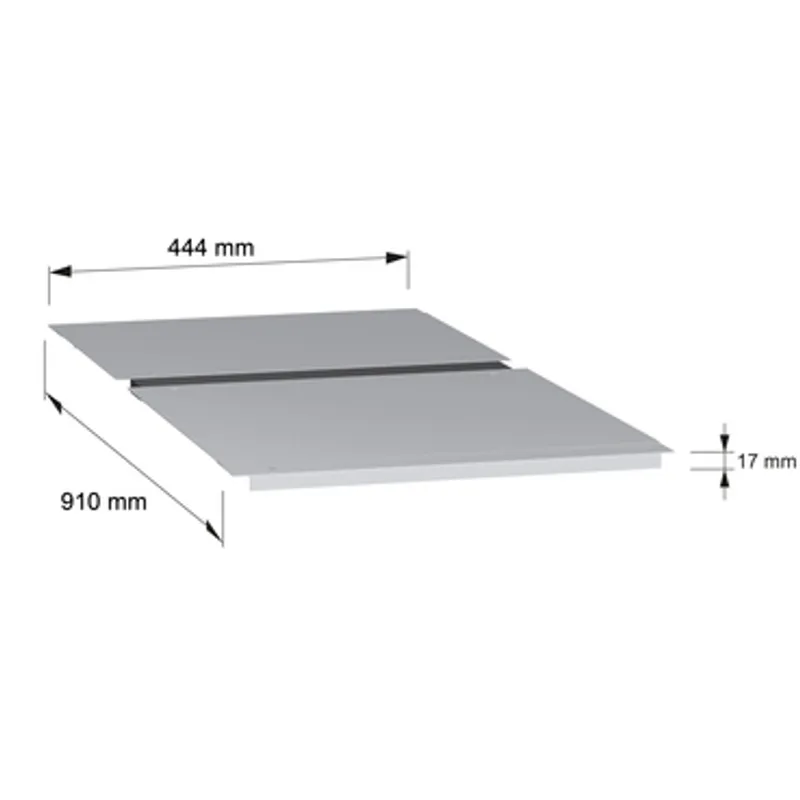

| Width | Nominal: 600 mm, Useful: 416 mm, Real: 444 mm |
| Depth | Nominal : 1000 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 46.000 cm × 44.500 cm × 3.000 cm (L × W × H), 5.600 kg |
| Package 2 | 4 PAL, 120.000 cm × 45.000 cm × 25.000 cm (L × W × H), 22.400 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEC6101: frequently asked questions
When can NSYEC6101 be shipped?
NSYEC6101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEC6101 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEC6101 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEC6101, subject to availability and destination.
