Schneider Electric NSYEC610

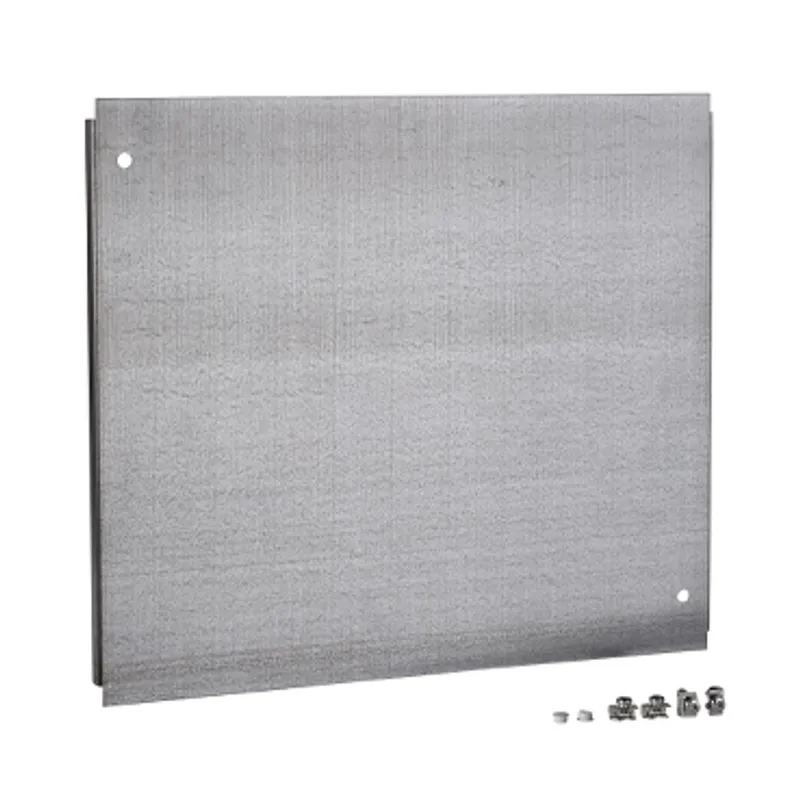

PanelSeT SF plain cable gland plate - fixed by clips - 600x1000 mm
- MPN
- NSYEC610
- EAN
- 3606480064081
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYEC610?
Electronic application cable gland plate for PanelSeT SF enclosures The product is made of galvanised steel The plate is 1,5mm thick The nominal width is 600mm and useful width is 416mm The height is 20mm The nominal depth is 1000mm and real depth is 906mm A cable gland plate to cover the base opening The set contains fixing elements and 1 plate The cable gland plate is to be mounted on enclosure bottom
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Electronic application |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Cable entry | Plain |
| Device composition | Fixing elements, 1 plate |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Height | 20 mm |
| Width | Nominal: 600 mm, Useful: 416 mm |
| Depth | Nominal : 1000 mm, Real : 906 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 91.500 cm × 44.400 cm × 3.000 cm (L × W × H), 5.578 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 55.000 cm (L × W × H), 195.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYEC610: frequently asked questions
When can NSYEC610 be shipped?
NSYEC610 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYEC610 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYEC610 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYEC610, subject to availability and destination.
