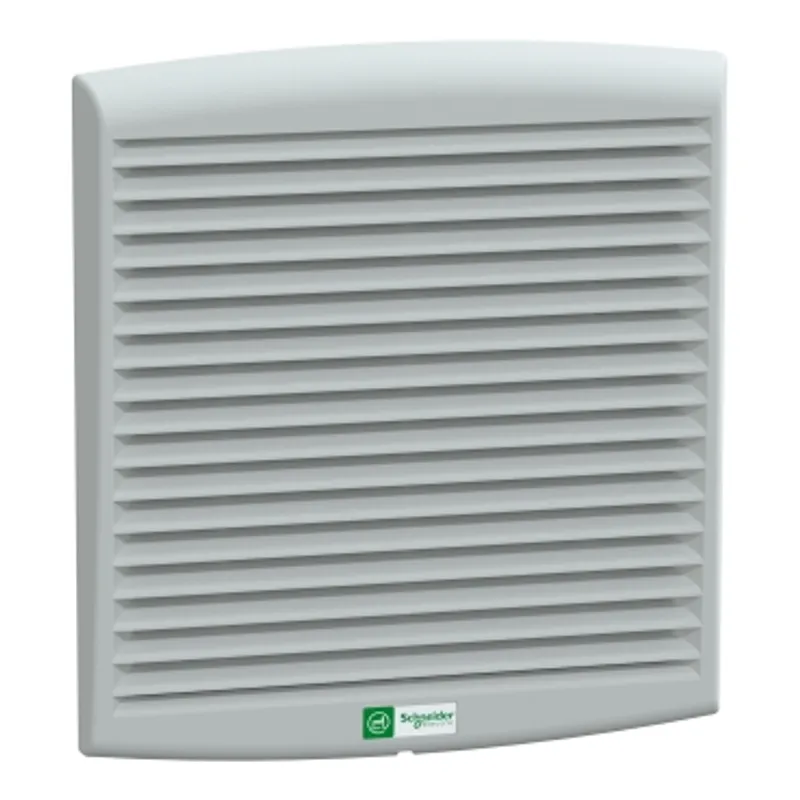

ClimaSys forced vent. IP54, 188m3/h, 24V DC, with outlet grille and filter G2

Name: Schneider Electric NSYCVF165M24DPF – ClimaSys forced vent. IP54, 188m3/h, 24V DC, with outlet grille and filter G2
Brand: Schneider Electric
SKU: NSYCVF165M24DPF

MPN: NSYCVF165M24DPF · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ClimaSys CV
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.81 kg

Shipping & availability

When can NSYCVF165M24DPF be shipped?

NSYCVF165M24DPF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCVF165M24DPF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCVF165M24DPF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF165M24DPF, subject to availability and destination.

Schneider Electric ClimaSys forced vent. IP54, 188m3/h, 24V DC, with outlet grille and filter G2, manufacturer part number NSYCVF165M24DPF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	ClimaSys
Product name	ClimaSys CV
Product or component type	Fan
Type of filter	Standard
Flow rate	Free flow rate with standard filter: 188 m3/h
[Us] rated supply voltage	10...27.6 V
Input voltage	24 V DC
Certification	CSA
Absorbed power	8 W
[In] rated current	0.3 A
Noise level < at	50…51 dB
Bearing type	Ball
Height	External: 268 mm
Width	External: 248 mm
Depth	External : 104 mm
Cut-out dimensions	223 x 223 mm
Net weight	0.81 kg
Material	Outlet grille: injected thermoplastic (ASA PC)
Colour	Outlet grille: grey (RAL 7035)
Ambient air temperature for operation	-10…70 °C
Ambient air temperature for storage	-40…70 °C
Maximum pressure	50 Pa flow rate 0 m³/h
Connections - terminals	Cable
IP degree of protection	IP54
Device composition	1 axial motor, 2 protective grille: on the front and rear surfaces, 1 filter: front of axial motor, 1 outlet grille: front, 1 cut-out template, 1 power cord
Condition of use	Surrounding environment must be relatively clean, Flow rates depends on the work point, see ProClima software, Overfrequent filter replacement should be avoided, Filter must be cleaned and replaced regularly, Outside temperature must be 5 °C lower than inside temperature
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	18.500 cm
Package 1 Width	25.000 cm
Package 1 Length	27.000 cm
Package 1 Weight	1.068 kg
Unit Type of Package 2	P12
Number of Units in Package 2	64
Package 2 Height	120.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	80.000 kg
Warranty (in months)	18
