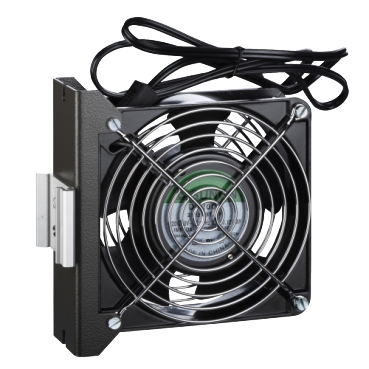

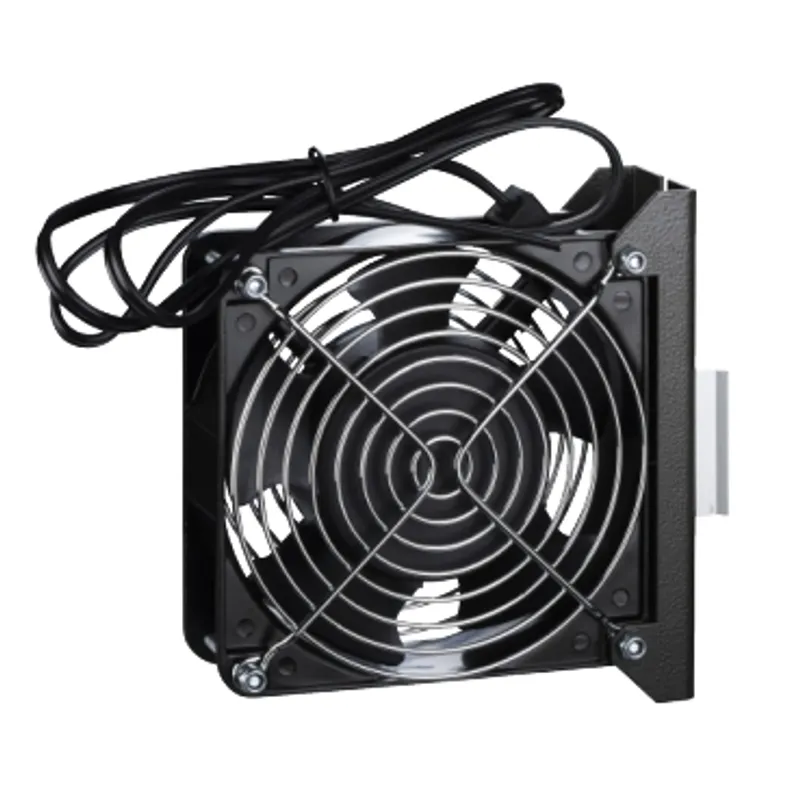

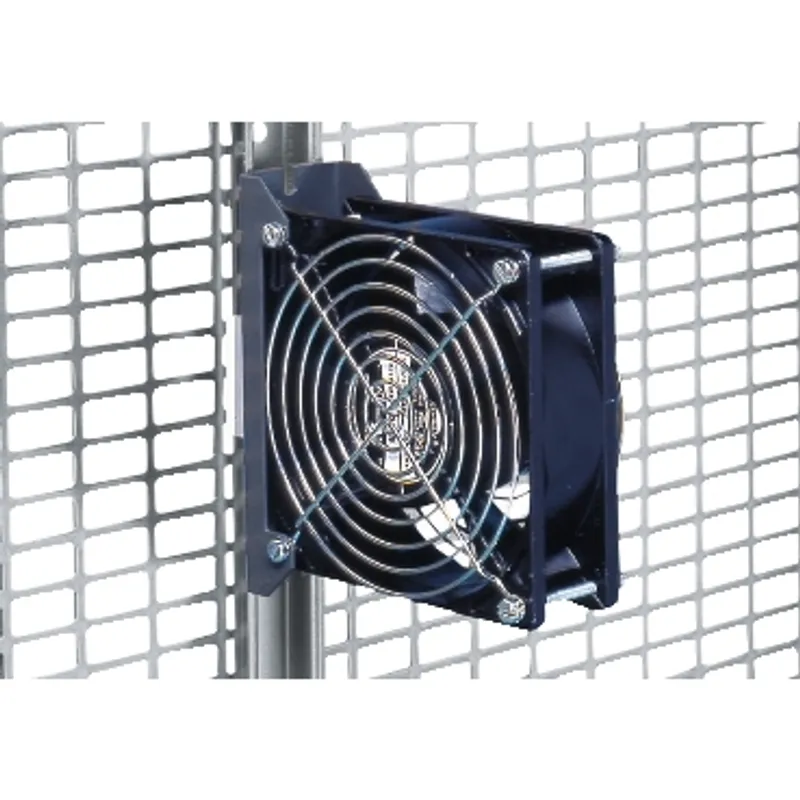

Climasys forced vent. 170 m3/h, 230V without grille
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CV |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.82 kg |
Shipping & availability
When can NSYCVF170M230 be shipped?
NSYCVF170M230 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCVF170M230 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCVF170M230 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF170M230, subject to availability and destination.
Schneider Electric Climasys forced vent. 170 m3/h, 230V without grille, manufacturer part number NSYCVF170M230. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | Fan |
| Range compatibility | Prisma P |
| Flow rate | Free flow rate: 170 m3/h at 50 Hz |
| Input voltage | 230 V 50/60 Hz |
| Absorbed power | 17 W |
| Noise level < at | 41 dB |
| Height | External: 119 mm |
| Width | External: 119 mm |
| Depth | External : 38 mm |
| Net weight | 0.82 kg |
| Material | Protective grille: steel |
| Device composition | 1 axial motor, 2 protective grille: on the front and rear surfaces, 1 fixing collar |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 846.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 30.000 cm |
| Package 2 Weight | 8.954 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 100.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 300.000 kg |
| Warranty (in months) | 18 |
