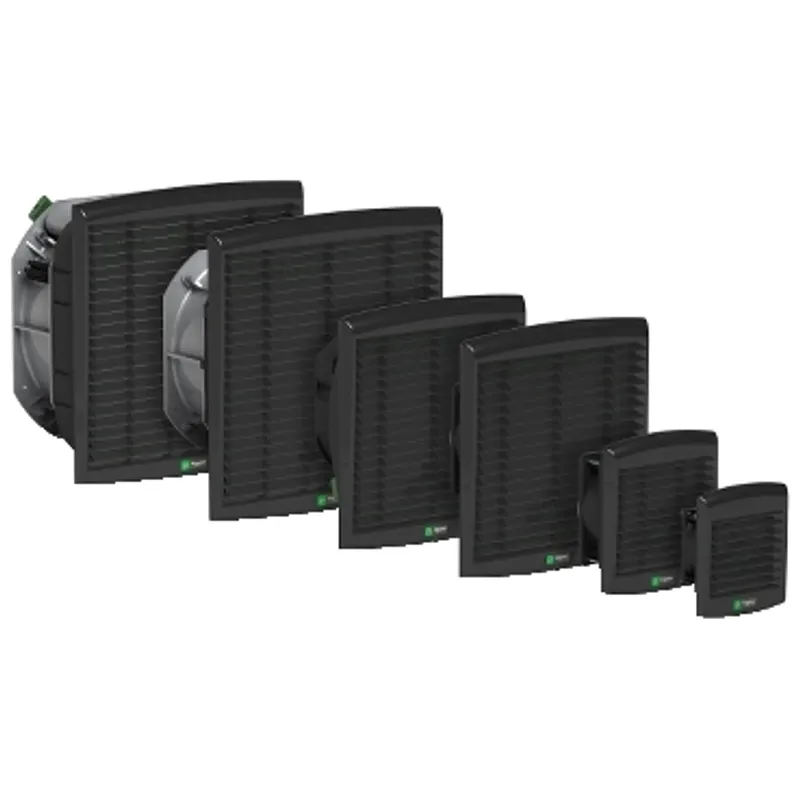

ClimaSys CV - CSVS SmartFan 165m3/h 230V IP54

Name: Schneider Electric NSYCVF165M230DG – ClimaSys CV - CSVS SmartFan 165m3/h 230V IP54
Brand: Schneider Electric
SKU: NSYCVF165M230DG

MPN: NSYCVF165M230DG · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ClimaSys CV
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.4 kg

Shipping & availability

When can NSYCVF165M230DG be shipped?

NSYCVF165M230DG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCVF165M230DG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCVF165M230DG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCVF165M230DG, subject to availability and destination.

Schneider Electric ClimaSys CV - CSVS SmartFan 165m3/h 230V IP54, manufacturer part number NSYCVF165M230DG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range compatibility	Spacial, Thalassa
Type of filter	G2
Flow rate	Free flow rate with standard filter: 165 m3/h at 50 Hz, Free flow rate with standard filter: 193 m3/h at 60 Hz
Input voltage	230 V 50/60 Hz
Certification	CE, EAC, EMC directive 89/336 EEC
Absorbed power	15.5 W 50 Hz, 14.4 W 60 Hz
[In] rated current	0.2 A 50 Hz, 0.18 A 60 Hz
Bearing type	Ball
Height	External: 268 mm
Width	External: 248 mm
Depth	External : 104 mm
Cut-out dimensions	223 x 223 mm
Net weight	1.4 kg
Material	Outlet grille: injected thermoplastic (PC), Motor support: injected thermoplastic (ASA PC)
Colour	Outlet grille: smoked black (RAL 9005), Motor support: black (RAL 9005)
Ambient air temperature for operation	-20…60 °C
Ambient air temperature for storage	-40…70 °C
Maximum pressure	50 Pa flow rate 0 m³/h
Connections - terminals	Faston connector
Device composition	1 axial motor, 1 external protective transparent smoked grille: front, 1 smart filter with dust sensor, 1 fan sensor ready to be mounted: rear of outlet grille, 1 cable gland, 1 cut-out template
Condition of use	Filter must be cleaned and replaced regularly, Flow rates depends on the work point, see ProClima software, Overfrequent filter replacement should be avoided, Surrounding environment must be relatively clean, Outside temperature must be 5 °C lower than inside temperature
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	19.000 cm
Package 1 Width	25.000 cm
Package 1 Length	27.500 cm
Package 1 Weight	1.528 kg
Unit Type of Package 2	CAR
Number of Units in Package 2	4
Package 2 Height	27.500 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	7.048 kg
Warranty (in months)	18
