Schneider Electric NSYCRN86300T

PanelSeT CRN tspt door w/o mount.plate. H800xW600xD300 IP66 IK08 RAL7035..

MPN
NSYCRN86300T
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

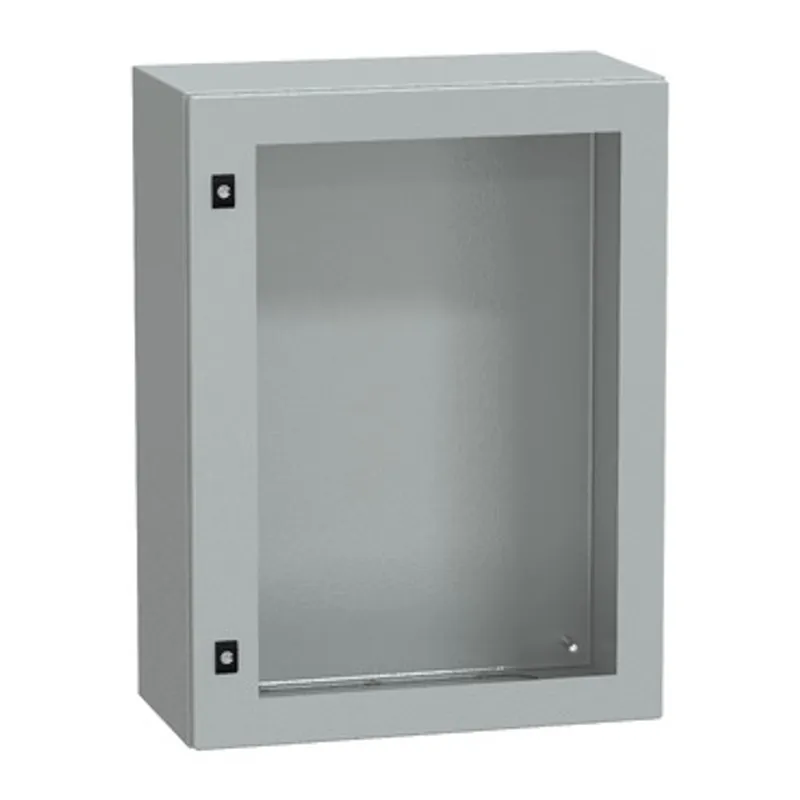

What is the Schneider Electric NSYCRN86300T?

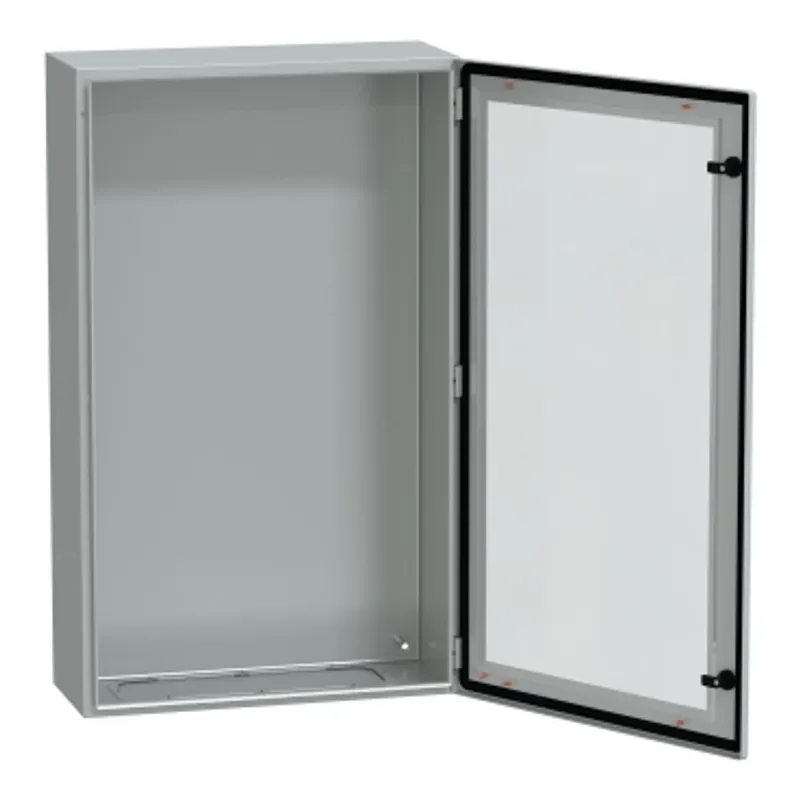

Spacial CRN steel wall-mounting enclosure for multi-purpose applications It has a nominal height, width, and depth of 800mm, 600mm, and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The body is made of steel, and the door is made of steel and security glass It is designed for use in harsh environments, withstanding high impact due to its IK08 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) The enclosure consists of a body, a cable gland plate, a glazed door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure

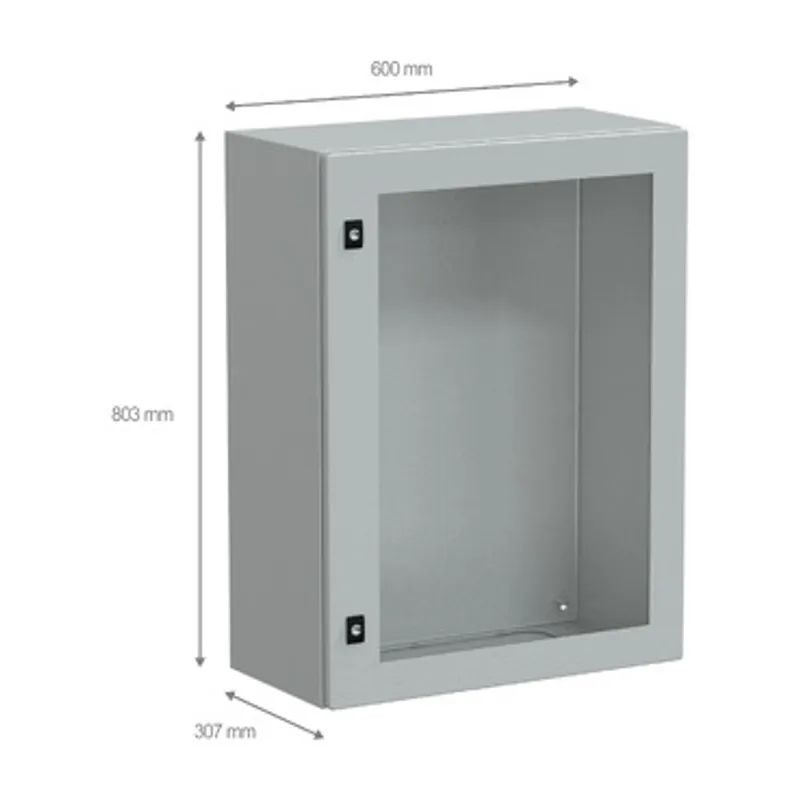

Enclosure nominal height800 mm
Enclosure nominal width600 mm
Enclosure nominal depth300 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door, 1 lock
Door typeGlazed
Mounting plate descriptionWithout mounting plate
body typeSides made from a single folded section, Back welded with double profile forming a protected sealed area
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel, Door: steel and security glass
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL, DNV-GL
Net weight21.616 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK08 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 81.000 cm × 61.000 cm × 31.500 cm (L × W × H), 21.000 kg
Package 212 PAM, 120.000 cm × 100.000 cm × 202.000 cm (L × W × H), 267.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN86300T: frequently asked questions

When can NSYCRN86300T be shipped?

NSYCRN86300T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN86300T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN86300T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN86300T, subject to availability and destination.
