Schneider Electric NSYCRN106400T

Glazed steel door, PanelSeT CRN, without mounting plate, 1000x600x400mm, IP66, IK08, RAL7035

MPN
NSYCRN106400T
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN106400T?

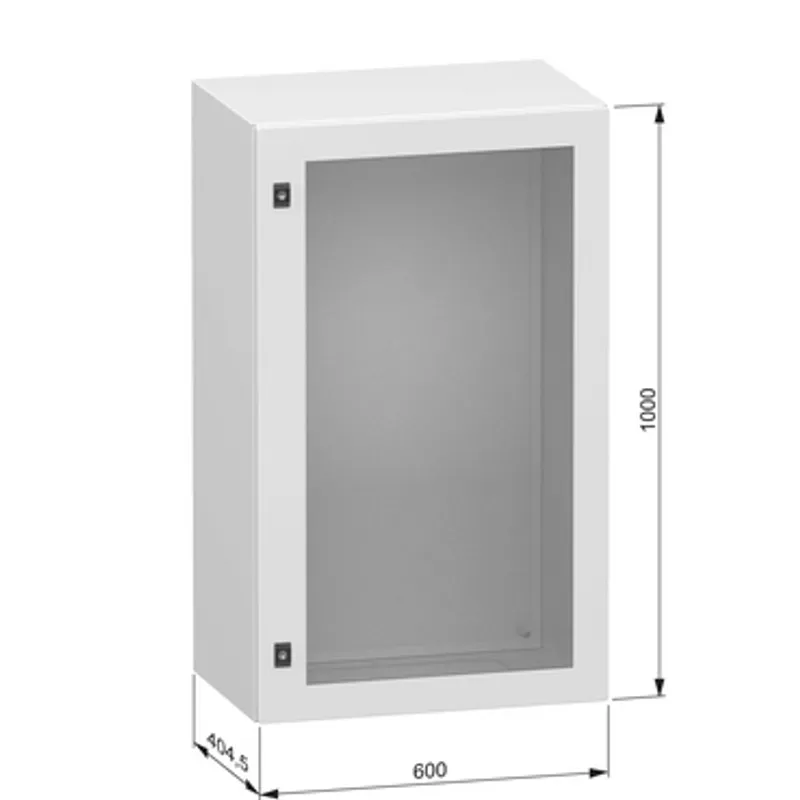

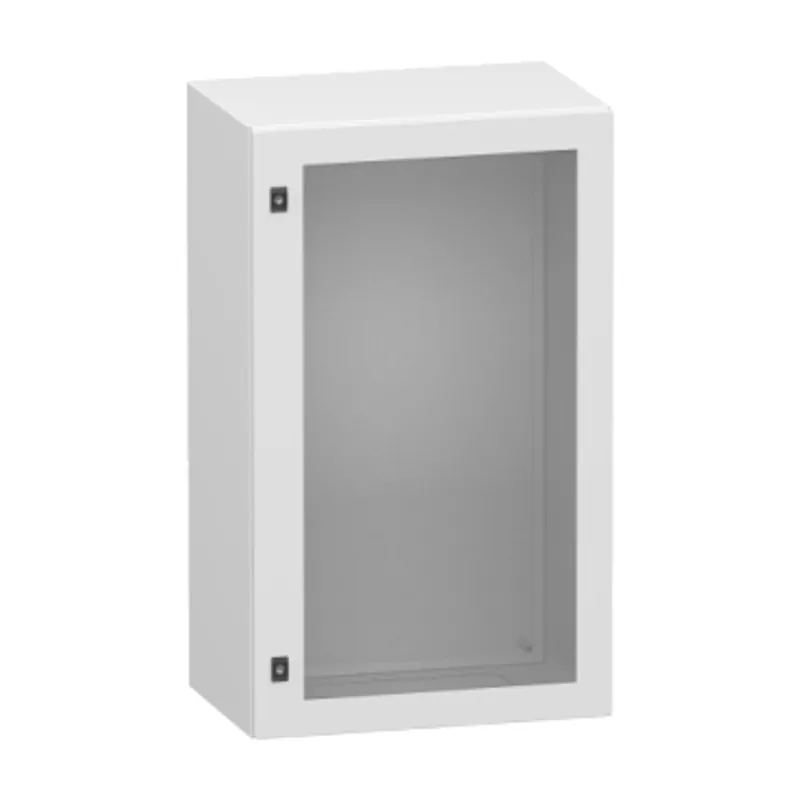

This PanelSeT CRN is a wall-mounting enclosure with a glazed door that is suitable for multi-purpose applications. It has a nominal height, width, and depth of 1000 mm, 600 mm and 400 mm, respectively. The body of the enclosure are made of galvanized steel for durability. The door is made of steel sheet and Securit glass, has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. It has a three-point locking system for one and two doors. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1000 mm
Enclosure nominal width600 mm
Enclosure nominal depth400 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door, 1 lock
Door typeGlazed
Mounting plate descriptionWithout mounting plate
body typeSingle piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel, Door: steel and security glass
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL
Net weight36.4 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK08 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 42 cm × 62.5 cm × 102.5 cm (L × W × H), 31.7 kg
Package 26 PAL, 120 cm × 100 cm × 202 cm (L × W × H), 210.2 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN106400T: frequently asked questions

When can NSYCRN106400T be shipped?

NSYCRN106400T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN106400T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN106400T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN106400T, subject to availability and destination.
