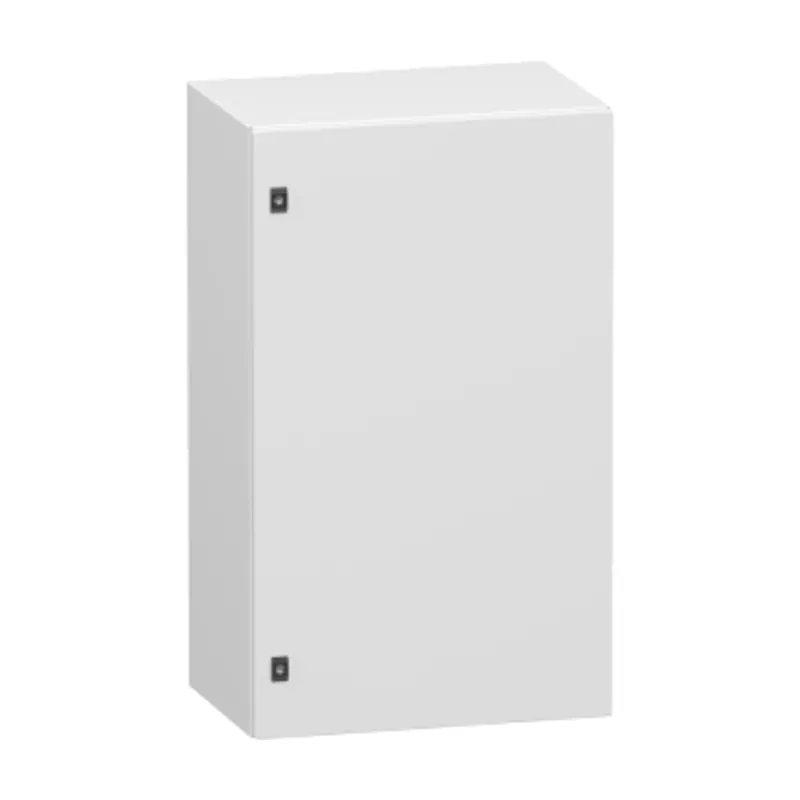

Plain steel door, PanelSeT CRN, without mounting plate, 1000x600x400mm, IP66, IK10, RAL7035
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 36.4 kg |
Shipping & availability
When can NSYCRN106400 be shipped?
NSYCRN106400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRN106400 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRN106400 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN106400, subject to availability and destination.
Schneider Electric Plain steel door, PanelSeT CRN, without mounting plate, 1000x600x400mm, IP66, IK10, RAL7035, manufacturer part number NSYCRN106400. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |

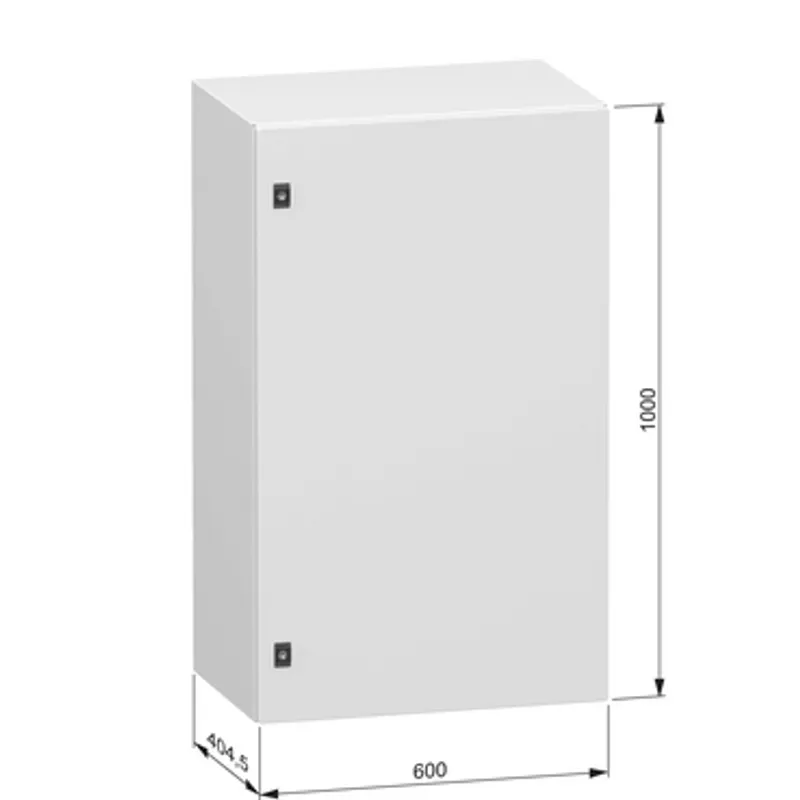

| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| body type | Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL |
| Net weight | 36.4 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 42.000 cm |
| Package 1 Width | 62.500 cm |
| Package 1 Length | 102.500 cm |
| Package 1 Weight | 32.200 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 137.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 140.800 kg |
| Coverage | Core product |
| Warranty | 18 months |
