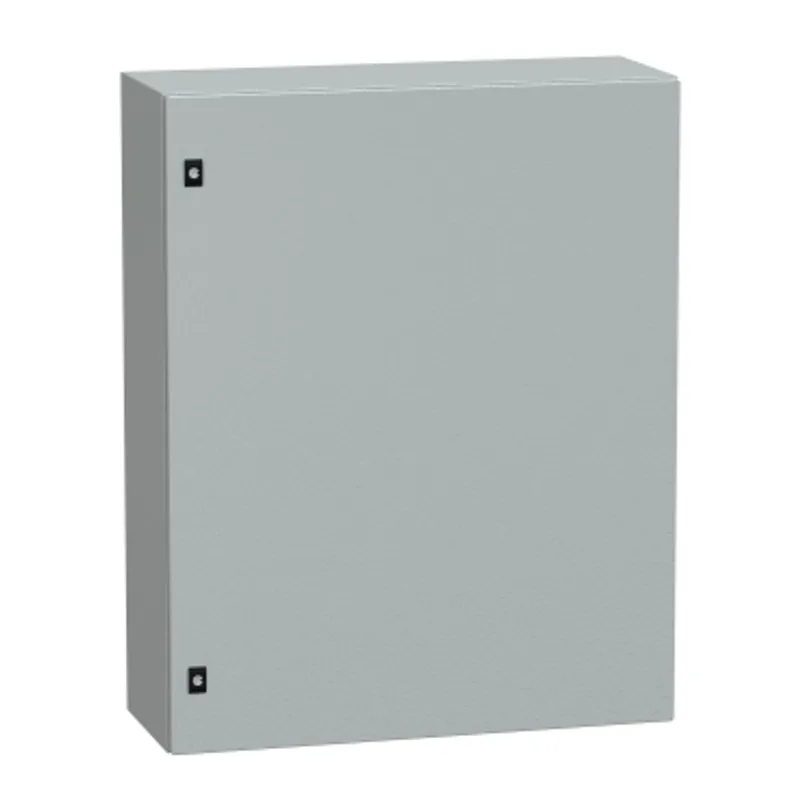

PanelSeT CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..

Name: Schneider Electric NSYCRN108300 – PanelSeT CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..
Brand: Schneider Electric
SKU: NSYCRN108300

MPN: NSYCRN108300 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PanelSeT CRN
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	34 kg

Shipping & availability

When can NSYCRN108300 be shipped?

NSYCRN108300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN108300 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN108300 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN108300, subject to availability and destination.

Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications It is designed to withstand harsh environments, with an IK10 rating (IEC62262) and an IP66 rating (IEC60529) for high impact and dust and water resistance This enclosure has a nominal height, width, and depth of 1000mm, 800mm, and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It consists of a body, a plain door, a lock, and two cable gland plates located at the bottom The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 34kg

Specifications

Range	PanelSeT
Product name	PanelSeT CRN
Application	Multi-purpose
Category	Compact enclosure
Enclosure nominal height	1000 mm
Enclosure nominal width	800 mm
Enclosure nominal depth	300 mm
Installation accessory type	Wall-mounting
Device composition	1 body, 1 door, 1 lock, 2 cable gland plate: bottom
Door type	Plain
Mounting plate description	Without mounting plate
body type	Sides made from a single folded section, Back welded with double profile forming a protected sealed area
Number of doors	Front face: 1 door(s)
Door opening side	Reversible (120 °)
Lock type	3 mm double-bar lock
Type of gland plate	Standard
Accessibility for operation	Front
Removable parts	Door by hinges, Cable gland plate by screws
Material	Body: steel
Surface finish	Epoxy-polyester powder
Colour	Grey (RAL 7035)
Standards	IEC 62208, UL, CUL
Product certifications	cUL, UL, DNV-GL
Net weight	34 kg
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	32.000 cm
Package 1 Width	82.000 cm
Package 1 Length	102.000 cm
Package 1 Weight	30.200 kg
Unit Type of Package 2	PAM
Number of Units in Package 2	6
Package 2 Height	175.000 cm
Package 2 Width	100.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	196.000 kg
Coverage	Core product
Warranty	18 months
