PanelSeT CRN plain door w/o mount.plate. H1000xW600xD300 IP66 IK10 RAL7035..
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 28 kg |
Shipping & availability
When can NSYCRN106300 be shipped?
NSYCRN106300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCRN106300 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCRN106300 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN106300, subject to availability and destination.

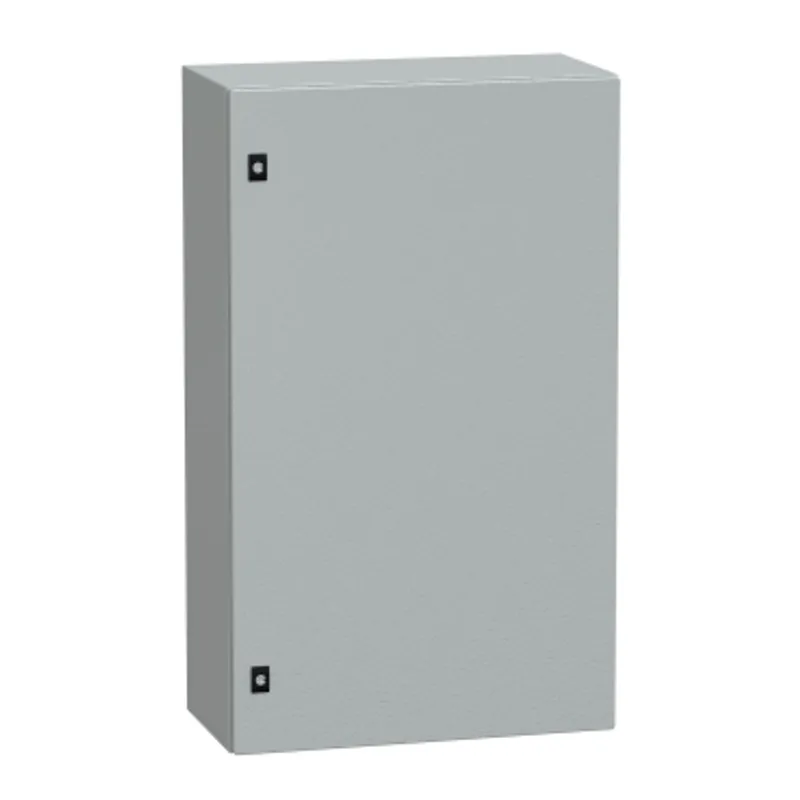

TheSpacial CRN is a multi-purpose wall-mounting enclosure with a steel body, designed to provide superior protection against dust, water, and impact It has a nominal height, width, and depth of 1000mm, 600mm, and 300mm, respectively The enclosure is grey in colour (RAL 7035) with an epoxy-polyester powder surface finish It has a plain door with a 3mm double-bar lock and hinges, allowing it to be opened up to 120° and the opening side is reversible The door and cable gland plate can be removed for maintenance purposes It is certified by UL, cUL, and DNV-GL and is compliant with IEC 62208, IK10 (IEC 62262), and IP66 (IEC 60529) The net weight of the enclosure is 28kg It features a back welded double profile and sides made from a single folded section The accessibility for operation is from the front Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |

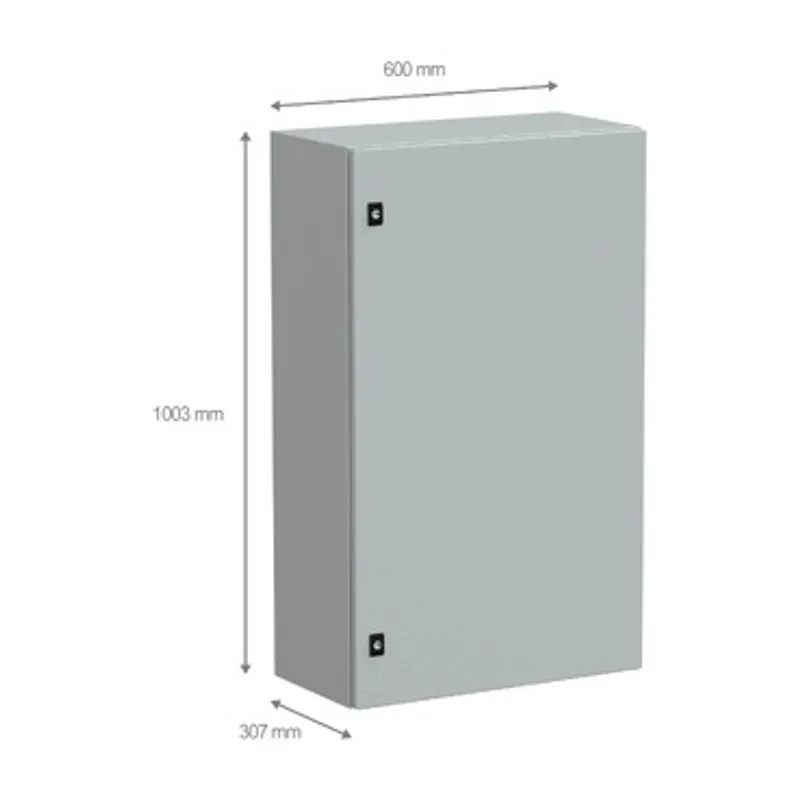

| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 300 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| body type | Back welded with double profile forming a protected sealed area, Sides made from a single folded section |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 28 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 31.500 cm |
| Package 1 Width | 61.000 cm |
| Package 1 Length | 101.000 cm |
| Package 1 Weight | 28.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 175.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 263.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
