Schneider Electric NSYCR20WU1C
ClimaSys PTC heating resistance 20W, 12-24V insulate
- MPN
- NSYCR20WU1C
- EAN
- 3606480152269
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCR20WU1C?

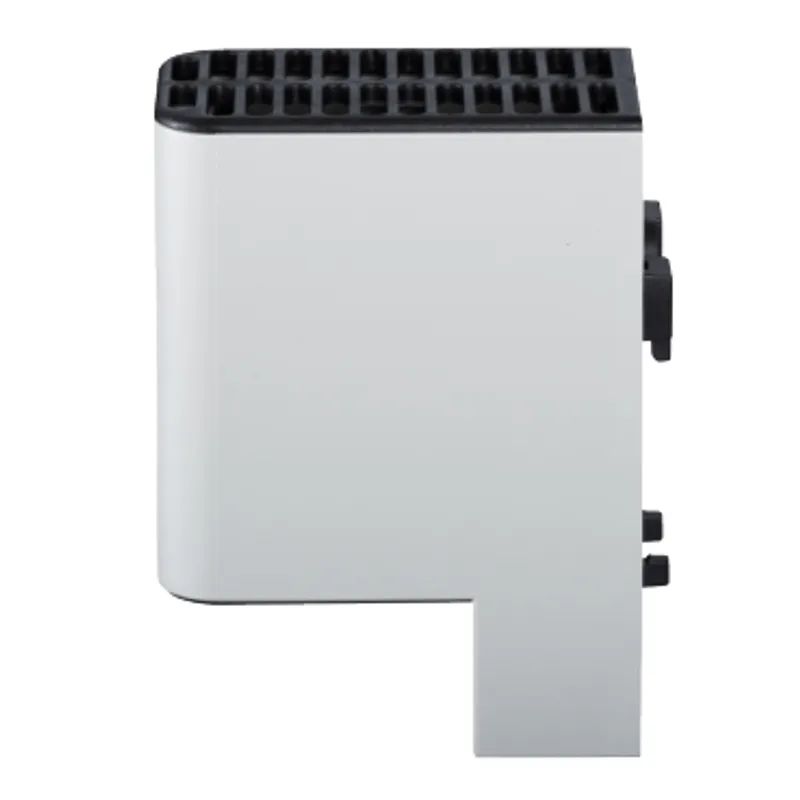

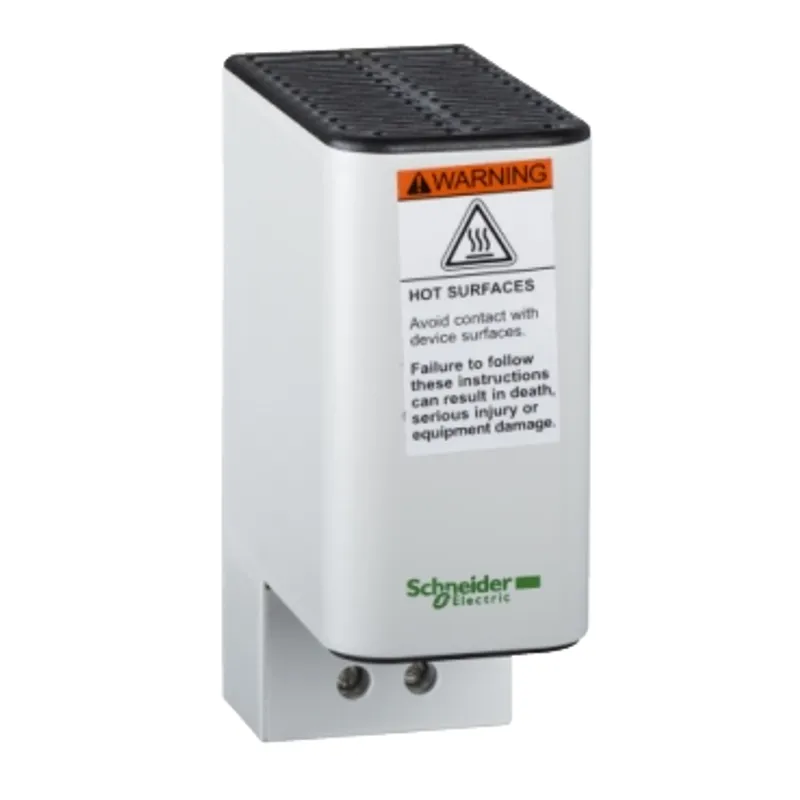

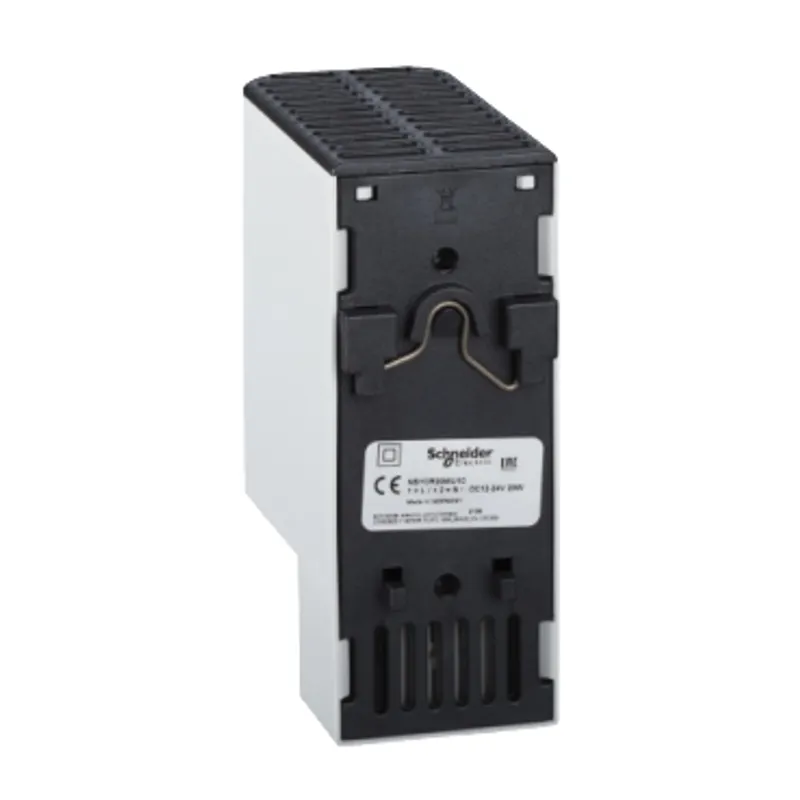

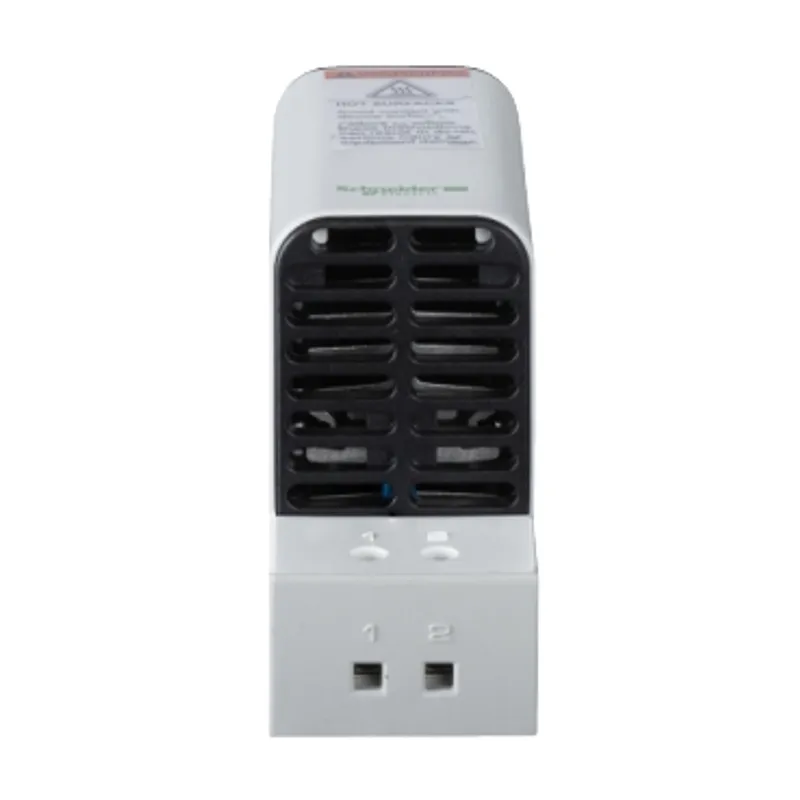

Resistance heater 20W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 38mm, height is 98mm and depth is 75mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 20 W |
| Input voltage | 12...24 V AC/DC 50/60 Hz |
| Electrical connection | 4 screw terminals 2.5 mm² |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Electrical insulation class | Class II |
| Product certifications | VDE |
| Material | Body: extruded aluminium, Cover: plastic |
| Height | External: 98 mm |
| Width | External: 38 mm |
| Depth | External : 75 mm |
| Condition of use | Heaters must be installed with a thermal controller, Electrical protection is needed, Air sealed enclosure |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 11.000 cm × 8.000 cm × 4.500 cm (L × W × H), 204.000 g |
