Schneider Electric NSYCR150WU2C

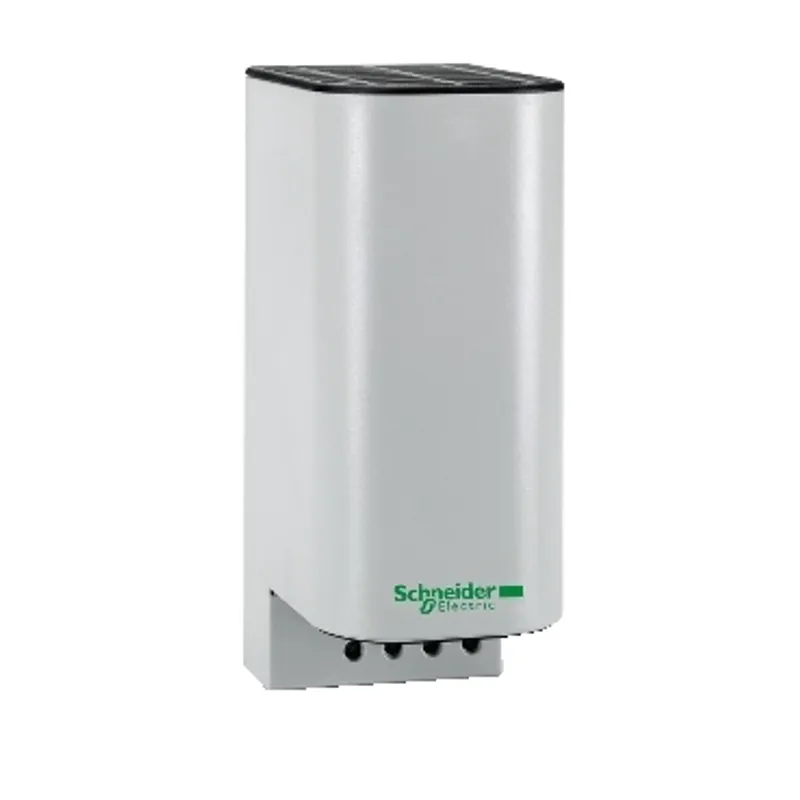

ClimaSys PTC heating resistance 150W,110-250V insulate
- MPN
- NSYCR150WU2C
- EAN
- 3606480152351
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCR150WU2C?
Resistance heater 150W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 60mm, height is 150mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 150 W |
| Input voltage | 120...240 V AC 50/60 Hz |
| Electrical connection | 4 screw terminals 2.5 mm² |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Electrical insulation class | Class II |
| Product certifications | VDE, UL |
| Material | Body: extruded aluminium, Cover: plastic |
| Height | External: 150 mm |
| Width | External: 60 mm |
| Depth | External : 90 mm |
| Condition of use | Electrical protection is needed, Heaters must be installed with a thermal controller, Air sealed enclosure |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 17.000 cm × 10.000 cm × 7.000 cm (L × W × H), 491.000 g |
| Package 2 | 25 CAR, 58.000 cm × 43.000 cm × 20.000 cm (L × W × H), 13.290 kg |
| Package 3 | 500 P12, 120.000 cm × 80.000 cm × 112.000 cm (L × W × H), 278.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCR150WU2C: frequently asked questions
When can NSYCR150WU2C be shipped?
NSYCR150WU2C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCR150WU2C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCR150WU2C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCR150WU2C, subject to availability and destination.
