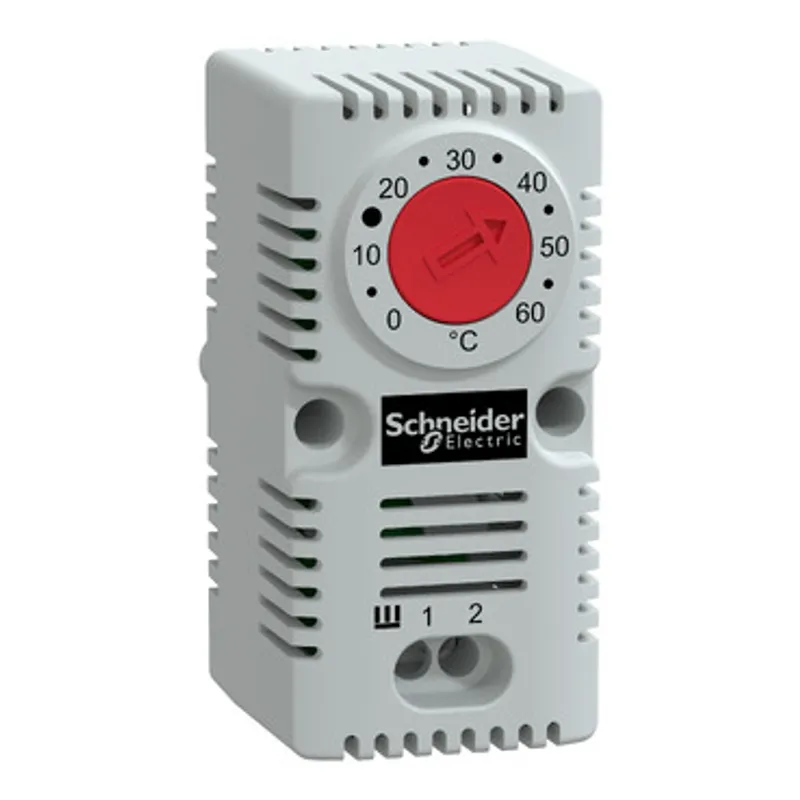

ClimaSys CC - simple thermostat 250V - range of temperature 0…60°C - NC - °C
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 40 kg |
Shipping & availability
When can NSYCCOTHC be shipped?
NSYCCOTHC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCCOTHC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCCOTHC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCCOTHC, subject to availability and destination.
ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NC contact type. 1 heating function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Simple thermostat |
| Temperature setting range | 0…60 °C |
| Information displayed | Temperature in °C |
| Input voltage | 250 V |
| Sensor type | Bimetal |
| Contacts type and composition | NC |
| Contact resistance | 10 mOhm |
| Service life in cycles | 100000 cycles |
| Maximum switching capacity | 2 A 120...250 V AC inductive pf: 0.6, 10 A 250 V AC resistive, 15 A 120 V AC resistive, 30 W DC |
| Electrical connection | 4 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | Clipped |
| Height | External: 68 mm |
| Width | External: 33 mm |
| Depth | External : 44 mm |
| Net weight | 40 g |
| Mounting location | Spacial upright, 35 mm DIN rail, Cross rails, On mounting plate |
| Ambient air temperature for operation | -20…80 °C |
| IP degree of protection | IP20 |
| Hysteresis | 7 K +/- 0.4K |
| Number of outputs | 1 heating function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UL |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 4.500 cm |
| Package 1 Length | 6.000 cm |
| Package 1 Weight | 66.000 g |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 3600 |
| Package 2 Height | 160.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 249.600 kg |
| Warranty | 18 months |
