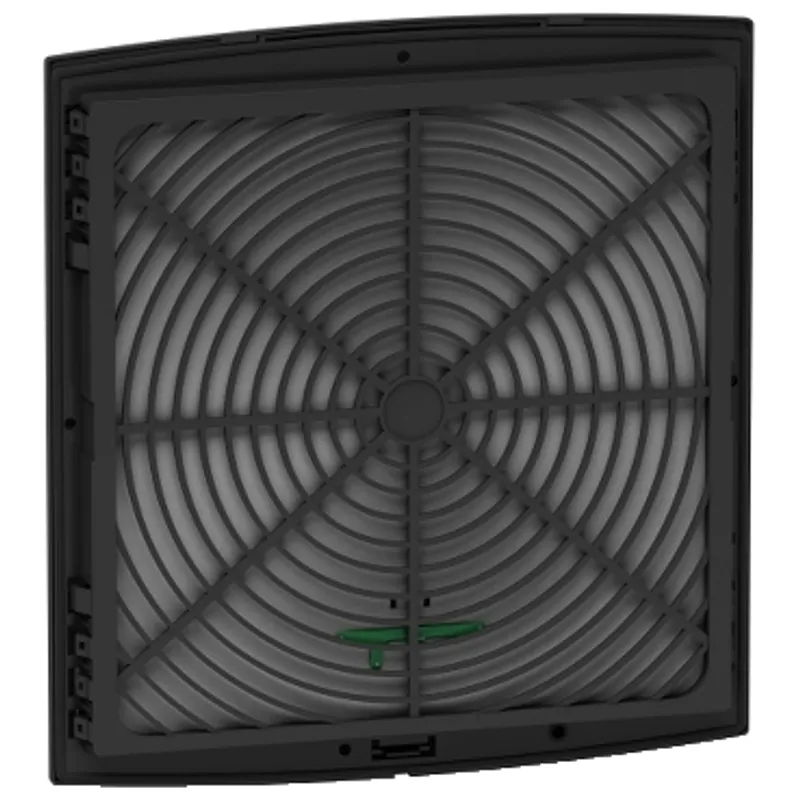

Schneider Electric NSYCAG223DG
ClimaSys CA - CSVS SmartGrid for cut-out 223x223mm
- MPN
- NSYCAG223DG
- EAN
- 3606481369864
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCAG223DG?
Schneider Electric ClimaSys CA - CSVS SmartGrid for cut-out 223x223mm, manufacturer part number NSYCAG223DG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | ClimaSys ClimaSys CV |
| Product or component type | Outlet grille |
| Accessory / separate part category | Thermal management accessory |
| Type of front cover | Smoked |
| Accessory / separate part destination | ClimaSys ventilation system |
| fixing mode | By screws, Clipped |
| Device composition | 1 front cover: rear of outlet grille, 1 motor support: embedded in filter, 1 G2 M1 synthetic standard filter, 1 dust sensor |
| Quantity per set | Set of 1 |
| Material | Front cover: injected thermoplastic (PC), Motor support: injected thermoplastic (ASA PC) |
| Colour | Front cover: smoked black (RAL 9005), Motor support: black (RAL 9005) |
| Cut-out dimensions | 223 x 223 mm |
| Height | External: 336 mm |
| Width | External: 316 mm |
| Depth | External : 13 mm |
| IP degree of protection | IP54 |
Packaging
| Package 1 | 1 PCE, 28.000 cm × 25.500 cm × 4.500 cm (L × W × H), 520.000 g |
| Package 2 | 10 CAR, 40.000 cm × 39.500 cm × 30.000 cm (L × W × H), 6.669 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCAG223DG: frequently asked questions
When can NSYCAG223DG be shipped?
NSYCAG223DG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAG223DG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAG223DG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAG223DG, subject to availability and destination.
