Schneider Electric NSYCAG170X190LM

Metal outlet grille cut-out 104x80mm ext dim 120x120mm IP23

MPN
NSYCAG170X190LM
EAN
3606480151835
Category
ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCAG170X190LM?

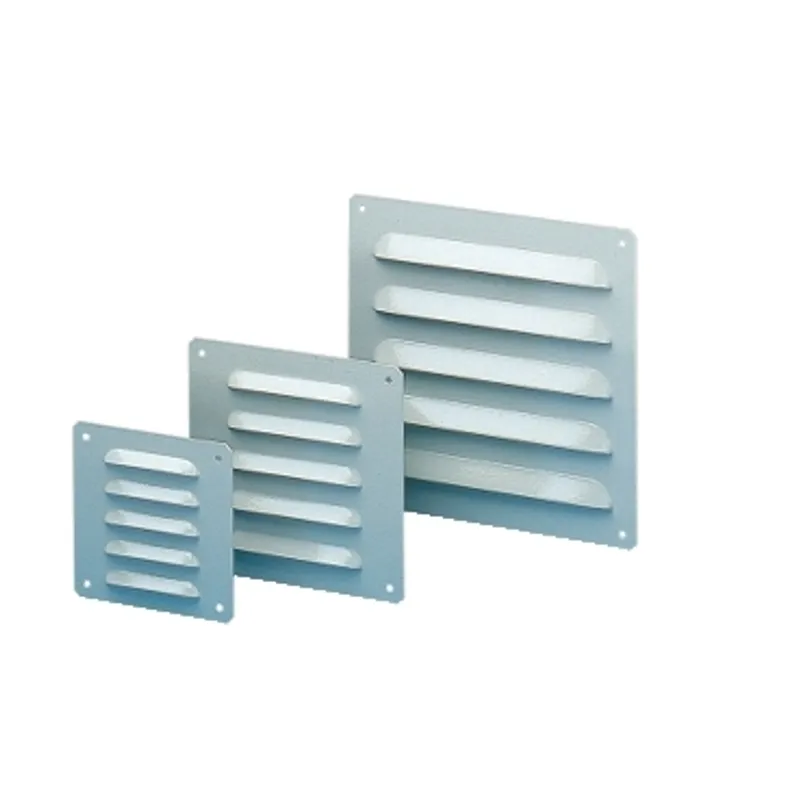

Metal louvre plate 220 x 220mm made from steel for enclosures The kit is made of 1 metal louvre The external width is 220mm Ingress protection rating (according to IEC 60529) is IP23 Fixing by screws on sides of enclosure Cut-out dimensions is 170 x 190mm Painted in grey (RAL 7035)

Specifications

Specifications

RangeClimaSys
ProductClimaSys CA
Product or component typeMetal louvre plate
Accessory / separate part categoryThermal management accessory
Accessory / separate part destinationClimaSys ventilation system
Mounting locationSides of enclosure
fixing modeBy screws
Device composition1 metal louvre
MaterialSteel
ColourGrey (RAL 7035)
Surface finishEpoxy-polyester powder
Cut-out dimensions170 x 190 mm
HeightExternal: 220 mm
WidthExternal: 220 mm
IP degree of protectionIP23

Packaging

Package 11 PCE, 22.000 cm × 22.000 cm × 1.500 cm (L × W × H), 617.000 g
Package 215 CAR, 30.000 cm × 40.000 cm × 20.000 cm (L × W × H), 10.040 kg
Package 3720 PAL, 123.000 cm × 110.500 cm × 122.500 cm (L × W × H), 493.920 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCAG170X190LM: frequently asked questions

When can NSYCAG170X190LM be shipped?

NSYCAG170X190LM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCAG170X190LM in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCAG170X190LM and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAG170X190LM, subject to availability and destination.
