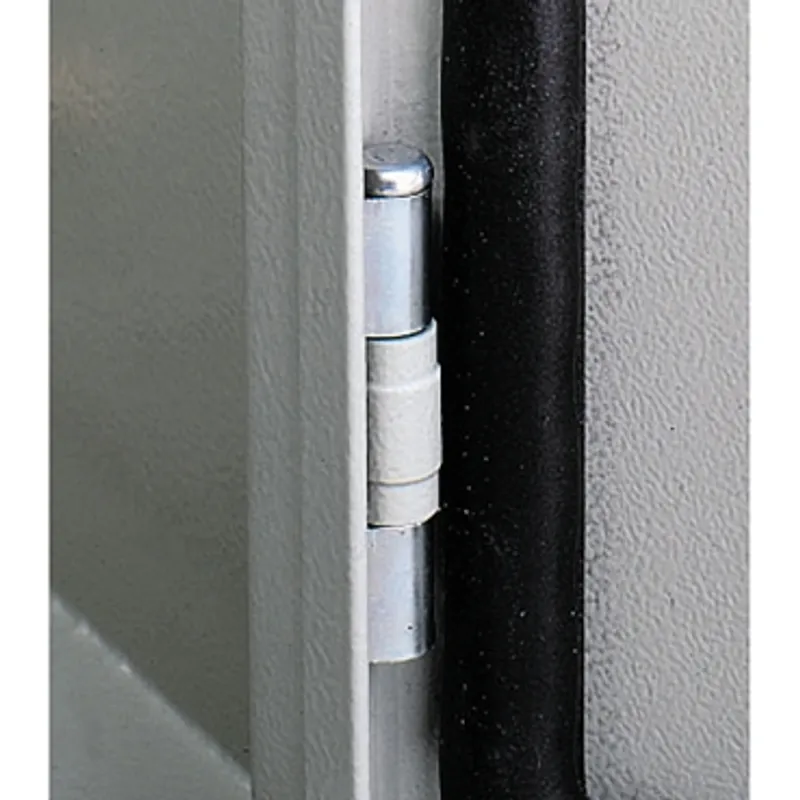

Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT S3D |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.03 kg |
Shipping & availability
When can NSYAEDH120S3D be shipped?
NSYAEDH120S3D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAEDH120S3D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAEDH120S3D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAEDH120S3D, subject to availability and destination.
Schneider Electric Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings., manufacturer part number NSYAEDH120S3D. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Hinge |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Enclosure |
| Range compatibility | PanelSeT S3D enclosure |
| Device composition | Fixing elements, 1 x hinge body, 1 x pin |
| Quantity per set | Set of 1 |
| Material | Hinge body: treated sheet steel, Pin: aluminium |
| Fixing mode | By screws - on enclosure body location |
| Operating angle | 120 ° |
| Maximum load | 50 kg/m² |
| Net weight | 0.031 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.600 kg |
| Unit Type of Package 3 | PAM |
| Number of Units in Package 3 | 2000 |
| Package 3 Height | 54.000 cm |
| Package 3 Width | 100.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 88.000 kg |
| Warranty | 18 months |
More Schneider Electric parts

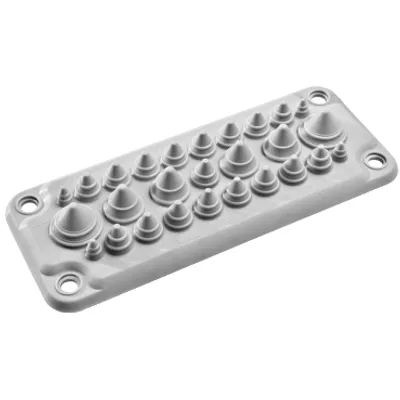

Available on requestCable entry membrane, PanelSeT, PanelSeT, type FL21 with 25 entrances IP66

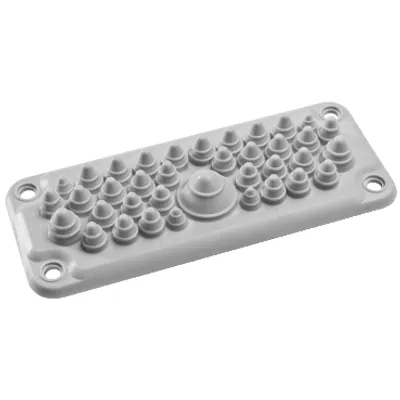

Available on requestCable entry membrane, PanelSeT, PanelSeT, type FL21 with 35 entrances IP66
