Schneider Electric NSYAECPFLT35
Cable entry membrane, PanelSeT, PanelSeT, type FL21 with 35 entrances IP66
- MPN
- NSYAECPFLT35
- EAN
- 3606480169045
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

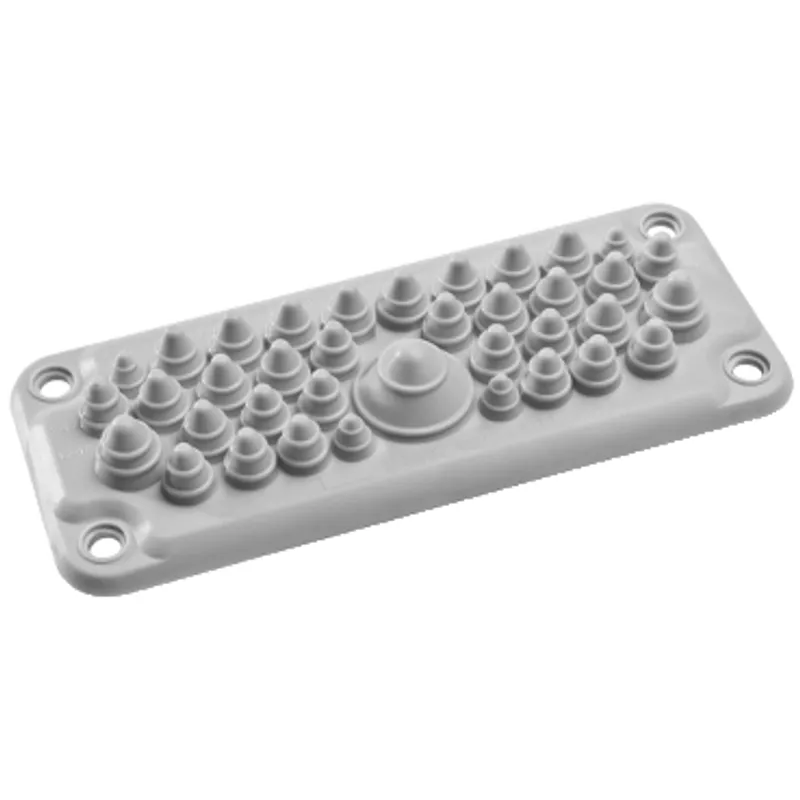

What is the Schneider Electric NSYAECPFLT35?
This is a soft membrane cable entry type FL21, designed for electrical enclosures, featuring 37 cable entry points. The product is made of TPE (thermoplastic elastomer). It is designed to be installed on the cable gland plate adapter or directly on enclosure The external height,width and depth are 40mm, 194mm and 88mm respectively. The product contains a membrane and the fixing elements. It´s color is grey RAL7035. The operational temperature range covers -40° to +100 °C. It meets the V0 flame retardance standard according to UL 94. Additionally, it has an IP66 rating for ingress protection.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable entry membrane |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT S3D compact enclosure, PanelSeT CRN compact enclosure, PanelSeT SF suitable enclosure |
| Device composition | 1 membrane, 1 fixing elements |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate |
| Material | TPE (thermoplastic elastomer) |
| Fixing mode | By fixing element |
| Total cable entry number | 35 |
| Cable entry number | 14 x 8…12 mm, 16 x 10…14 mm, 2 x 12…18 mm, 1 x 17…32 mm, 2 x 6…10 mm |
| Height | 40 mm |
| Width | External: 214 mm, Fixing center: 194 mm |
| Depth | Fixing center : 62 mm, External : 88 mm |
| Colour | Grey (RAL 7035) |
| Net weight | 0.34 kg |
| IP degree of protection | IP66 |
| Flame retardance | V0 conforming to UL 94 |
| Ambient air temperature for operation | -40…100 °C |
| Environmental characteristic | Oil resistant conforming to UL 157 FIMKO, UV resistant, Weatherproof, Fire resistance conforming to UL 94 V0 |
Packaging
| Package 1 | 1 PCE, 25.500 cm × 14.000 cm × 3.000 cm (L × W × H), 324.000 g |
| Package 2 | 20 CAR, 40.000 cm × 31.000 cm × 20.000 cm (L × W × H), 6.730 kg |
| Package 3 | 800 PAM, 120.000 cm × 100.000 cm × 93.000 cm (L × W × H), 284.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYAECPFLT35: frequently asked questions
When can NSYAECPFLT35 be shipped?
NSYAECPFLT35 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAECPFLT35 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAECPFLT35 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAECPFLT35, subject to availability and destination.
