Schneider Electric NSYAEDH20TB

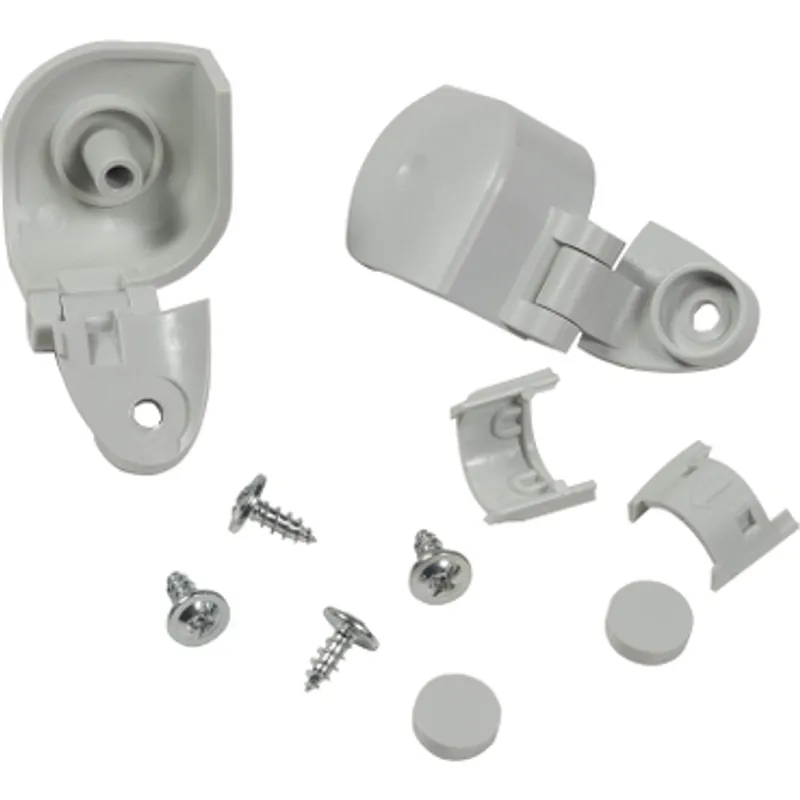

Hinges, for cover-depth 20 mm. In thermoplastic PC with screws.
- MPN
- NSYAEDH20TB
- EAN
- 3606480166402
- Category
- PanelSeT TBP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYAEDH20TB?
Schneider Electric Hinges, for cover-depth 20 mm. In thermoplastic PC with screws., manufacturer part number NSYAEDH20TB. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Hinge |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Range compatibility | PanelSeT TBS, TBP boxes, cover H:20 |
| Device composition | Fixing elements, 2 x hinge |
| Quantity per set | Set of 1 |
| Fixing mode | By screws - on cover location, By fixing element - rear location |
| Operating angle | 200 ° |
| Maximum load | 10 kg/m2 |
| Net weight | 0.02 kg |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 7.000 cm × 2.500 cm (L × W × H), 28.000 g |
| Package 2 | 100 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 3.194 kg |
| Package 3 | 2000 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 77.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYAEDH20TB: frequently asked questions
When can NSYAEDH20TB be shipped?
NSYAEDH20TB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAEDH20TB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAEDH20TB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAEDH20TB, subject to availability and destination.
