Schneider Electric NSYAECPFLA25

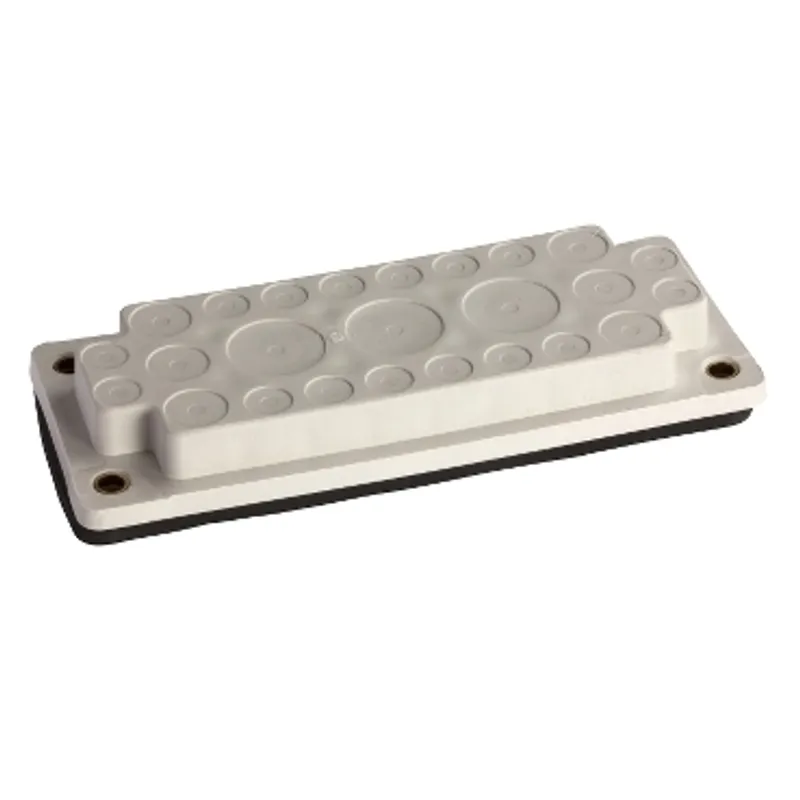

Membrane for cable entrance FL21 with 25 entrances 3x30mm + 6x18mm + 16x14mm.
- MPN
- NSYAECPFLA25
- EAN
- 3606480389795
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYAECPFLA25?
Membrane for cable entrance FL21 with 25 entrances 3x30mm + 6x18mm + 16x14mm, The product is made from light grey TPE (thermoplastic elastomer), SBS (styrene butadiene styrene), PP (polypropylene) and SEBS (styrene ethylene butylene styrene) (RAL 7035) Fixed on cable gland plate and body of enclosure The cable entry membrane has 25 cable entries The width is 215mm The height is 25mm The depth is 86mm Ambient air temperature for operation -40-85 °C Ingress protection rating IP65
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable entry membrane |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT S3D compact enclosure, PanelSeT CRN compact enclosure, PanelSeT SF suitable enclosure |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate, Body of enclosure |
| Material | TPE (thermoplastic elastomer), SBS (styrene butadiene styrene), PP (polypropylene), SEBS (styrene ethylene butylene styrene) |
| Pulling force | 20 daN |
| Total cable entry number | 25 |
| Cable entry number | 16 x 14 mm, 6 x 18 mm, 3 x 30 mm |
| Height | 25 mm |
| Width | 215 mm |
| Depth | 86 mm |
| Colour | Light grey (RAL 7035) |
| Net weight | 0.306 kg |
| IP degree of protection | IP65 |
| Standards | ASTM G154 - 06, EN 50262 |
| Ambient air temperature for operation | -40…85 °C |
Packaging
| Package 1 | 1 PCE, 22.500 cm × 8.000 cm × 4.000 cm (L × W × H), 311.000 g |
| Package 2 | 25 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 8.118 kg |
