Schneider Electric NSYAECPFLA33
Membrane for cable entrance FL21 with 33 entrances 9x18mm + 24x14mm.
- MPN
- NSYAECPFLA33
- EAN
- 3606480389788
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

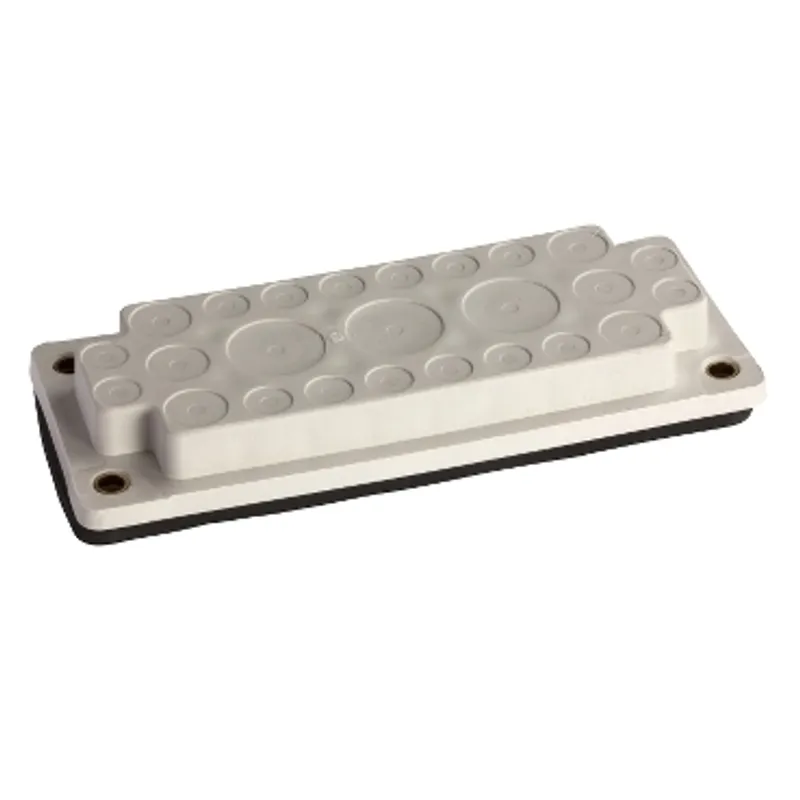

What is the Schneider Electric NSYAECPFLA33?
Membrane for cable entrance FL21 with 33 entrances 9x18mm + 24x14mm, The product is made from light grey TPE (thermoplastic elastomer), SBS (styrene butadiene styrene), SEBS and PP (polypropylene) (RAL 7035) Fixed on cable gland plate and body of enclosure The cable entry membrane has 33 cable entries The width is 215mm The height is 25mm The depth is 86mm Ambient air temperature for operation -40-85 °C Ingress protection rating IP65
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable entry membrane |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT S3D compact enclosure, PanelSeT CRN compact enclosure, PanelSeT SF suitable enclosure |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate, Body of enclosure |
| Material | TPE (thermoplastic elastomer), SBS (styrene butadiene styrene), SEBS, PP (polypropylene) |
| Pulling force | 20 daN |
| Total cable entry number | 33 |
| Cable entry number | 24 x 14 mm, 9 x 18 mm |
| Height | 25 mm |
| Width | 215 mm |
| Depth | 86 mm |
| Colour | Light grey (RAL 7035) |
| Net weight | 0.314 kg |
| IP degree of protection | IP65 |
| Standards | ASTM G154 - 06, EN 50262 |
| Ambient air temperature for operation | -40…85 °C |
Packaging
| Package 1 | 1 PCE, 22.000 cm × 9.000 cm × 3.000 cm (L × W × H), 314.000 g |
| Package 2 | 25 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 8.138 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYAECPFLA33: frequently asked questions
When can NSYAECPFLA33 be shipped?
NSYAECPFLA33 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAECPFLA33 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAECPFLA33 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAECPFLA33, subject to availability and destination.
