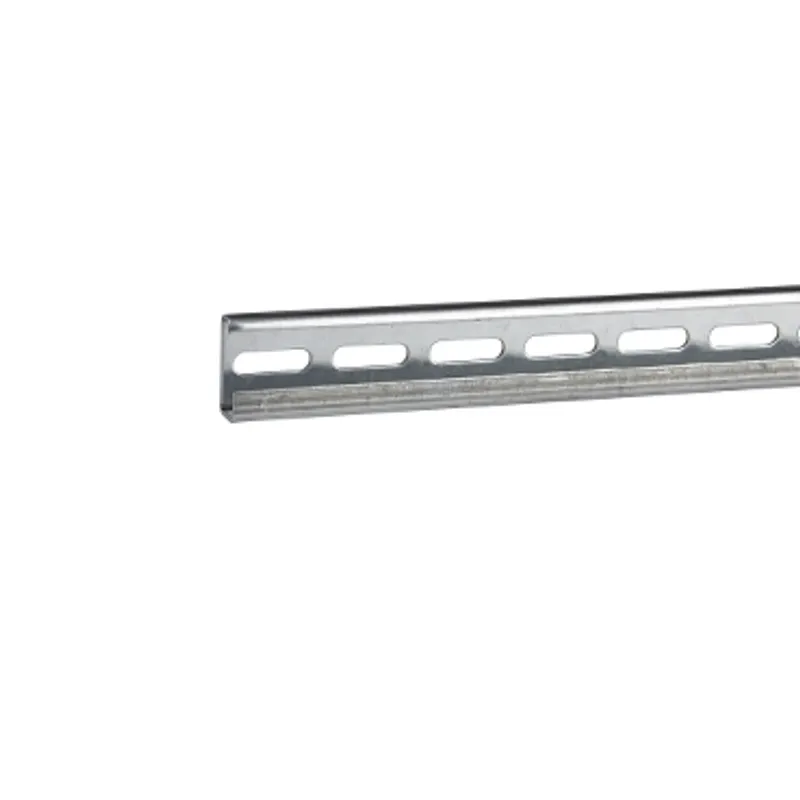

Schneider Electric NSYADR200D
One asymmetric mounting rail perforated 32x15 L2000mm, Order by Multiples of 10 units
- MPN
- NSYADR200D
- EAN
- 3606480180200
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYADR200D?
Set of 10 asymmetrical DIN rail rails for equipment The rail is made from perforated 1,5mm galvanised steel The nominal width is 32mm The nominal height is 15mm The product length is 2000mm Fixed with a pitch of 25mm
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Rail |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Asymmetrical DIN rail |
| Enclosure nominal dimensions | - |
| Range compatibility | PanelSeT |
| Device composition | 1 rail |
| Quantity per set | Set of 10 |
| Material | Galvanised steel |
| Surface finish | Perforated |
| Fixing mode | By fixing element - structure of enclosure location |
| Adjustment | Continuous adjustment, Pitch 25 mm |
| Length | 2000 mm |
| Height | Nominal: 15 mm |
| Width | Nominal: 32 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 200.000 cm × 3.300 cm × 1.500 cm (L × W × H), 1.260 kg |
| Package 2 | 10 BB1, 200.500 cm × 8.000 cm × 3.500 cm (L × W × H), 12.800 kg |
| Package 3 | 60 P2M, 120.000 cm × 200.000 cm × 45.000 cm (L × W × H), 90.600 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYADR200D: frequently asked questions
When can NSYADR200D be shipped?
NSYADR200D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYADR200D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYADR200D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYADR200D, subject to availability and destination.
