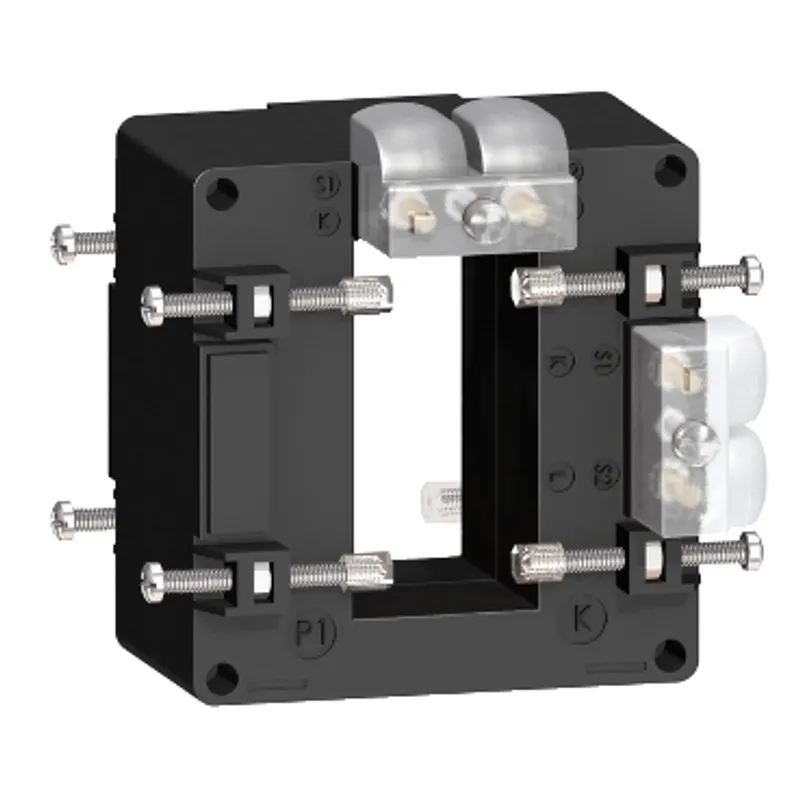

current transformer tropicalised 1000 5 double output for bars 32x65
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PowerLogic™ Current Transformers |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.61 kg |
Shipping & availability
When can METSECT5DA100 be shipped?
METSECT5DA100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up METSECT5DA100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for METSECT5DA100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for METSECT5DA100, subject to availability and destination.
This current transformer, tropicalised for busbar, has a line rated current of 1000 A and a secondary current rating of 5 A. This current transformer do have a 65 mm x 32 mm opening. Compatible with a single output for bar: 65 mm x 32 mm. Burden and accuracy class as follows: class 0.5 maximum power: 15 VA, class 1 maximum power: 20 VA.
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 15 VA, Class 1 at 20 VA |
| [In] rated current | 1000 A |
| Current transformer type | Tropicalised for busbar, Solid core |
| Current transformer ratio | 1000/5 |
| [Ith] conventional free air thermal current | 60 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Width | Outside: 90 mm, Inner: 32 mm |
| Height | Outside: 94 mm, Inner: 65 mm |
| Depth | Frame : 40 mm, Total : 90 mm |
| Net weight | 0.606 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Opening of bars | 65 x 32 |
| Sealing | With |
| Standards | VDE 0414, IEC 61869-2 |
| Product certifications | CE, EAC |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.300 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 10.100 cm |
| Package 1 Weight | 547.400 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.158 kg |
| Warranty (in months) | 18 |
