Schneider Electric METSECT5DA060

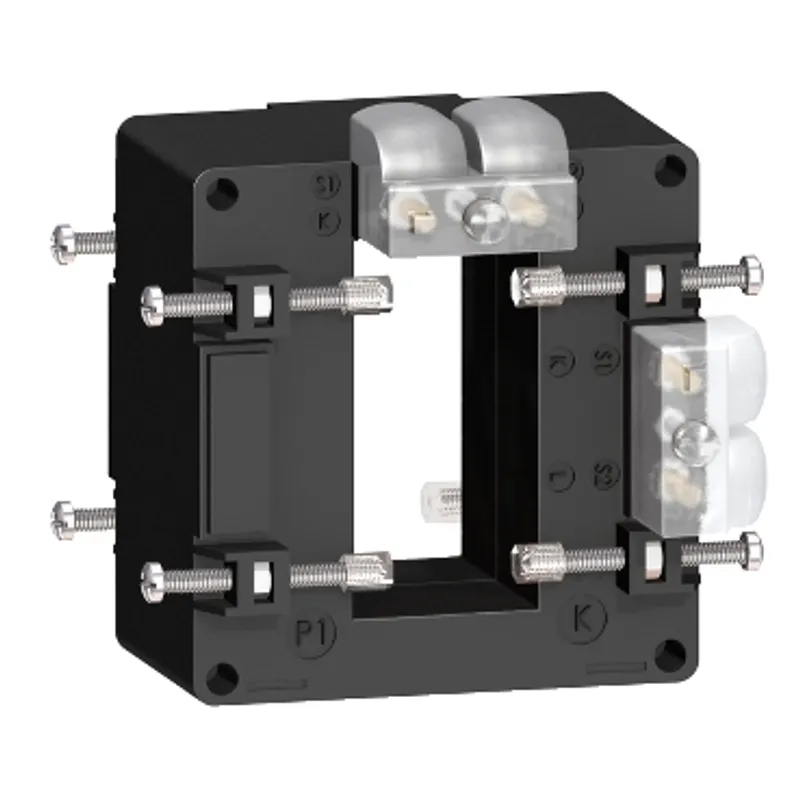

Current transformer tropicalised 600 5 double output for bars 32x65
- MPN
- METSECT5DA060
- EAN
- 3303431123650
- Category
- PowerLogic™ Current Transformers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric METSECT5DA060?
This current transformer, tropicalised for busbar, has a line rated current of 600 A and a secondary current rating of 5 A. This current transformer do have a 65 mm x 32 mm opening. Compatible with a single output for bar: 65 mm x 32 mm. Burden and accuracy class as follows: class 0.5 maximum power: 8 VA, class 1 maximum power: 12 VA.
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 8 VA, Class 1 at 12 VA |
| [In] rated current | 600 A |
| Current transformer type | Tropicalised for busbar, Solid core |
| Current transformer ratio | 600/5 |
| [Ith] conventional free air thermal current | 36 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Width | Outside: 90 mm, Inner: 32 mm |
| Height | Outside: 94 mm, Inner: 65 mm |
| Depth | Frame : 40 mm, Total : 90 mm |
| Net weight | 0.541 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Opening of bars | 65 x 32 |
| Sealing | With |
| Standards | VDE 0414, IEC 61869-2 |
| Product certifications | CE, EAC |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
Packaging
| Package 1 | 1 PCE, 10.100 cm × 9.600 cm × 10.500 cm (L × W × H), 504.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.464 kg |
