Schneider Electric METSECT5DB100

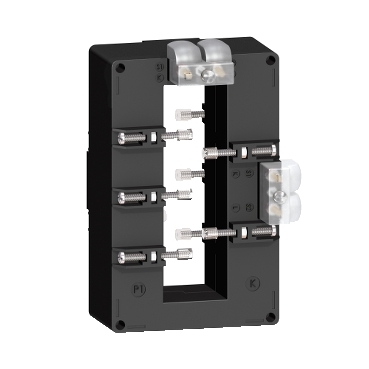

Current transformer tropicalised 1000 5 double output for bars 38x127
- MPN
- METSECT5DB100
- EAN
- 3606480618918
- Category
- PowerLogic™ Current Transformers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric METSECT5DB100?
This current transformer, tropicalised for busbar, has a line rated current of 1000 A and a secondary current rating of 5 A. This current transformer do have a 38 mm x 127 mm opening. Compatible with a single output for bar: 127 mm x 38 mm. Burden and accuracy class as follows: class 0.5 maximum power: 6 VA, class 1 maximum power: 10 VA.
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 6 VA, Class 1 at 10 VA |
| [In] rated current | 1000 A |
| Current transformer type | Tropicalised for busbar, Solid core |
| Current transformer ratio | 1000/5 |
| [Ith] conventional free air thermal current | 60 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Width | Inner: 38 mm, Outside: 99 mm |
| Height | Inner: 127 mm, Outside: 160 mm |
| Depth | Frame : 40 mm, Total : 78.4 mm |
| Net weight | 0.682 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Opening of bars | 127 x 38 |
| Sealing | With |
| Standards | VDE 0414, IEC 61869-2 |
| Product certifications | CE |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
Packaging
| Package 1 | 1 PCE, 17.000 cm × 13.500 cm × 10.000 cm (L × W × H), 708.000 g |
| Package 2 | 10 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.480 kg |
