PowerLogic™ Current Transformers Parts
Schneider Electric
METSECT5MD080Current transformer tropicalised DIN mount 800 5 cables d. 40 - bars 12x50 20x40
Schneider Electric
METSECT5MD060Current transformer tropicalised DIN mount 600 5 cables d. 40 - bars 12x50 20x40
Schneider Electric

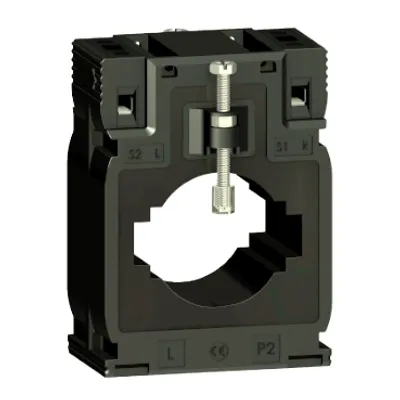

METSECT5MD050Current transformer tropicalised DIN mount 500 5 cables d. 40 - bars 12x50 20x40
Schneider Electric
METSECT5MC080Current transformer tropicalised DIN mount 800 5 for bars 10x40 20x32 25x25
Schneider Electric

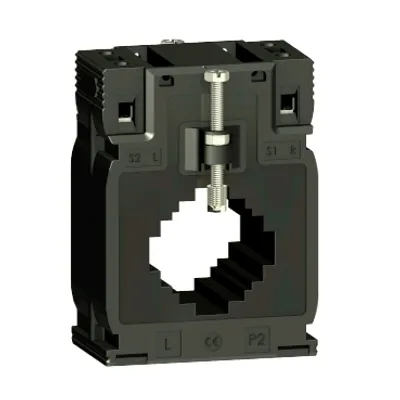

METSECT5MC060Current transformer tropicalised DIN mount 600 5 for bars 10x40 20x32 25x25
Schneider Electric
METSECT5MC050Current transformer tropicalised DIN mount 500 5 for bars 10x40 20x32 25x25
Schneider Electric
METSECT5MC040Current transformer tropicalised DIN mount 400 5 for bars 10x40 20x32 25x25
Schneider Electric
METSECT5MC030Current transformer tropicalised DIN mount 300 5 for bars 10x40 20x32 25x25
Schneider Electric
METSECT5MC025Current transformer tropicalised DIN mount 250 5 for bars 10x40 20x32 25x25
Schneider Electric

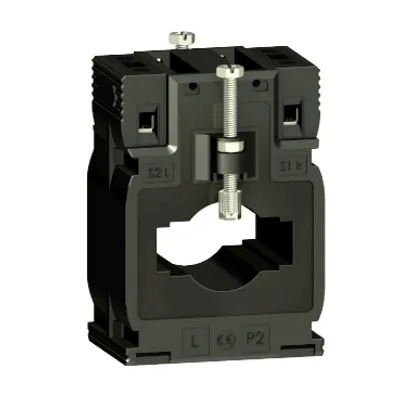

METSECT5MB040Current transformer tropicalised DIN mount 400 5 cables d. 26 - bars 12x40 15x32
Schneider Electric
METSECT5MB030Current transformer tropicalised DIN mount 300 5 cables d. 26 - bars 12x40 15x32
Schneider Electric
METSECT5MB025Current transformer tropicalised DIN mount 250 5 cables d. 26 - bars 12x40 15x32
Schneider Electric

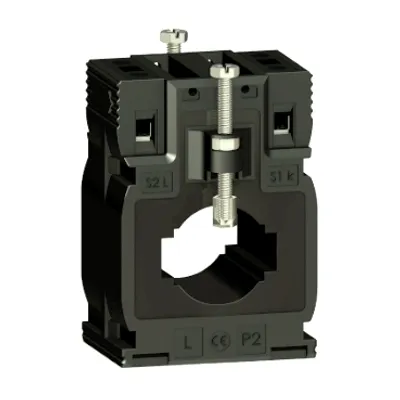

METSECT5MA040Current transformer tropicalised DIN mount 400 5 cables d. 27 - bars 10x32 15x25
Schneider Electric
METSECT5MA030Current transformer tropicalised DIN mount 300 5 cables d. 27 - bars 10x32 15x25
Schneider Electric
METSECT5MA025Current transformer tropicalised DIN mount 250 5 cables d. 27 - bars 10x32 15x25
Schneider Electric
METSECT5MA020Current transformer tropicalised DIN mount 200 5 cables d. 27 - bars 10x32 15x25
Schneider Electric
METSECT5MA015Current transformer tropicalised DIN mount 150 5 cables d. 27 - bars 10x32 15x25
Schneider Electric

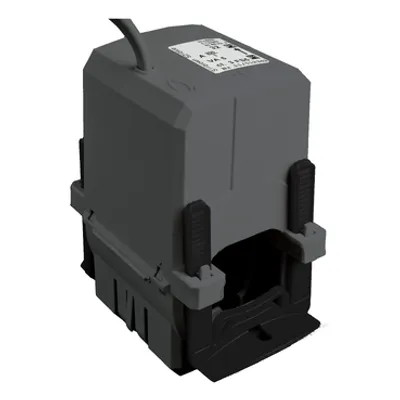

METSECT5HP100PowerLogic Split Core Current Transformer - Type HP, for cable diameter 44mm, 1000A / 5A
Schneider Electric
METSECT5HP080PowerLogic Split Core Current Transformer - Type HP, for cable - 0800A / 5A
Compare PowerLogic™ Current Transformers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accuracy class | [In] rated current | Current transformer ratio | [Ith] conventional free air thermal current | Net weight |
|---|---|---|---|---|---|

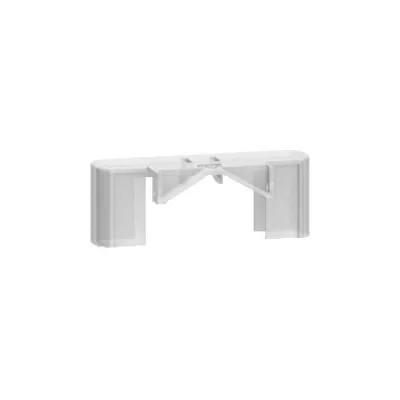

| METSECT5COVER | — | — | — | — | — |

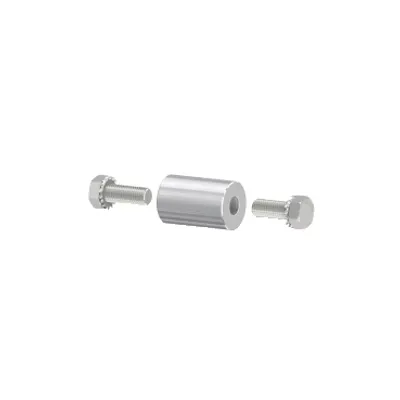

| METSECT5CYL2 | — | — | — | — | — |

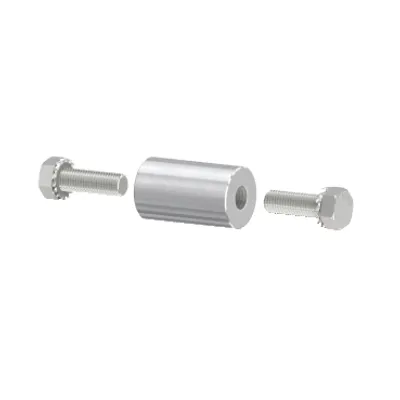

| METSECT5CYL1 | — | — | — | — | — |
| METSECT5VV600 | Class 0.5 at 70 VA | 6000 A | 6000/5 | 60 kA | 3.4 kg |

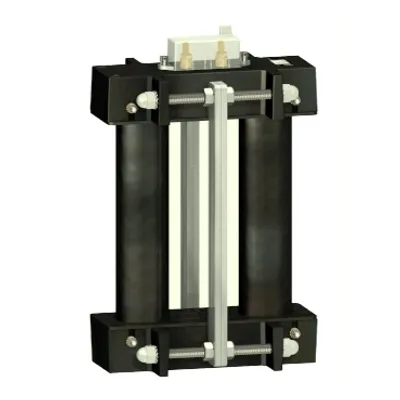

| METSECT5VV500 | Class 0.5 at 60 VA | 5000 A | 5000/5 | 60 kA | 3.1 kg |
| METSECT5MD080 | Class 0.5 at 10 VA, Class 1 at 12 VA | 800 A | 800/5 | 48 kA | 0.369 kg |
| METSECT5MD060 | Class 0.5 at 6 VA, Class 1 at 8 VA | 600 A | 600/5 | 36 kA | 0.349 kg |
| METSECT5MD050 | Class 0.5 at 4 VA, Class 1 at 6 VA | 500 A | 500/5 | 30 kA | 0.329 kg |
| METSECT5MC080 | Class 0.5 at 10 VA, Class 1 at 12 VA | 800 A | 800/5 | 48 kA | 0.499 kg |
| METSECT5MC060 | Class 0.5 at 12 VA, Class 1 at 15 VA | 600 A | 600/5 | 36 kA | 0.449 kg |
| METSECT5MC050 | Class 0.5 at 10 VA, Class 1 at 12 VA | 500 A | 500/5 | 30 kA | 0.429 kg |
| METSECT5MC040 | Class 0.5 at 8 VA, Class 1 at 10 VA | 400 A | 400/5 | 24 kA | 0.404 kg |
| METSECT5MC030 | Class 0.5 at 5 VA, Class 1 at 8 VA | 300 A | 300/5 | 18 kA | 0.389 kg |
| METSECT5MC025 | Class 0.5 at 3 VA, Class 1 at 5 VA | 250 A | 250/5 | 15 kA | 0.375 kg |
| METSECT5MB040 | Class 0.5 at 6 VA, Class 1 at 8 VA | 400 A | 400/5 | 24 kA | 0.348 kg |
| METSECT5MB030 | Class 0.5 at 4 VA, Class 1 at 6 VA | 300 A | 300/5 | 18 kA | 0.323 kg |
| METSECT5MB025 | Class 0.5 at 3 VA, Class 1 at 4 VA | 250 A | 250/5 | 15 kA | 0.305 kg |
| METSECT5MA040 | Class 0.5 at 10 VA, Class 1 at 12 VA | 400 A | 400/5 | 24 kA | 0.328 kg |
| METSECT5MA030 | Class 0.5 at 8 VA, Class 1 at 10 VA | 300 A | 300/5 | 18 kA | 0.303 kg |
| METSECT5MA025 | Class 0.5 at 6 VA, Class 1 at 8 VA | 250 A | 250/5 | 15 kA | 0.298 kg |
| METSECT5MA020 | Class 0.5 at 4 VA, Class 1 at 7 VA | 200 A | 200/5 | 12 kA | 0.318 kg |
| METSECT5MA015 | Class 0.5 at 3 VA, Class 1 at 5 VA | 150 A | 150/5 | 9 kA | 0.298 kg |
| METSECT5HP100 | Class 1 at 5 VA | 1000 A | 1000/5 | 1200 A | — |
| METSECT5HP080 | Class 1 at 5 VA | 800 A | 800/5 | 960 A | — |
Common to all listed parts
| Range | PowerLogic |
| Product name | CT |
