Schneider Electric LXMMC12MS06S100

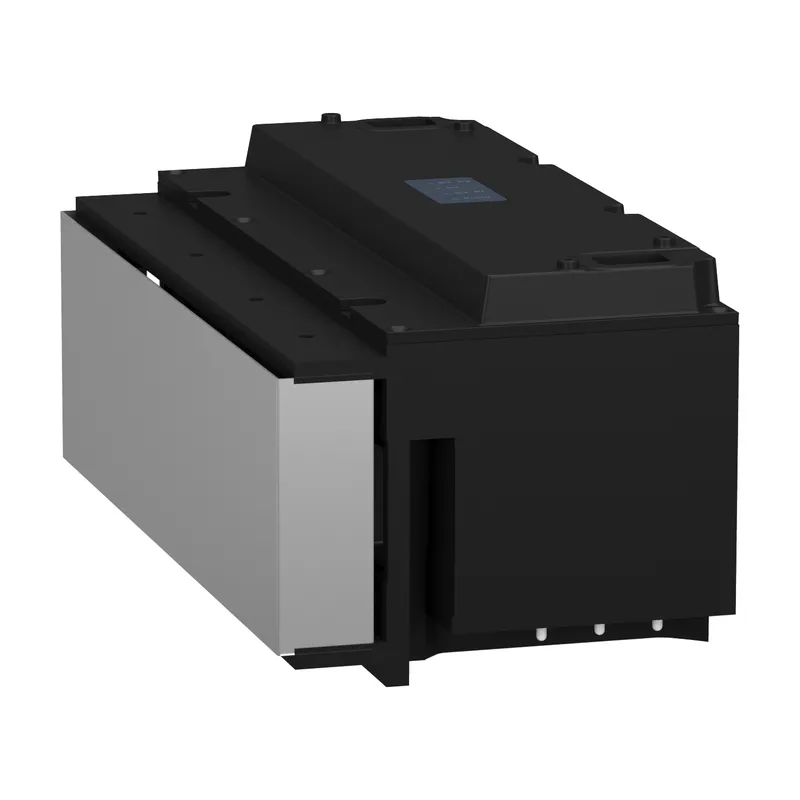

Longstator motor, Lexium MC12 multi carrier, straight, 300mm, IP65

MPN
LXMMC12MS06S100
EAN
3606482084995
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXMMC12MS06S100?

"The straight long stator motor segment is part of Lexium MC12 multi carrier range, a modular transportation system." "The straight long stator motor segments can be combined freely into open and closed tracks." "The long stator motor segments hold multiple carriers, moving independently from each other." "The straight long stator segment length is 300mm." "Its absolute accuracy equals 0.25mm. Its IP level is 65." "It integrates drive electronics, and figures LED indicators for segment state, sercos port status. network status." "It measures 300mm long, 162.6mm wide and 136mm deep. It weighs 7.9kg." "This modular system is for machine applications and consists of long stator motors, on which multiple carrier units can be moved independently from each other." "This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE." "To create a transportation system, associate long stator motor segments, Guide rails, carriers, communication/power interconnects and cables." "The straight and curve long stator segments install by assembling each others on a flat mounting plate to create an open or close track." "Next generation transport system with unprecedented simplicity in installation and commissioning." "Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productLexium MC12 multi carrier
Product or component typeLongstator motor

Complementary

Installation directionStraight
Peak force120 N
Accuracy0.03 repetitive; 0.25 absolute
Maximum number of carrier per controller200
Maximum length of track per controller40 m
Maximum actuation speed4 m/s
Maximum attraction force380 N
Maximum acceleration120 m/s²
Minimum distance between carriers0 m
Maximum number of carrier per segment6
IP degree of protectionIP65
Length300.4 mm
Width162.6 mm
Depth136 mm
Net weight7.9 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LXMMC12MS06S100: frequently asked questions

When can LXMMC12MS06S100 be shipped?

LXMMC12MS06S100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXMMC12MS06S100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXMMC12MS06S100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMMC12MS06S100, subject to availability and destination.
