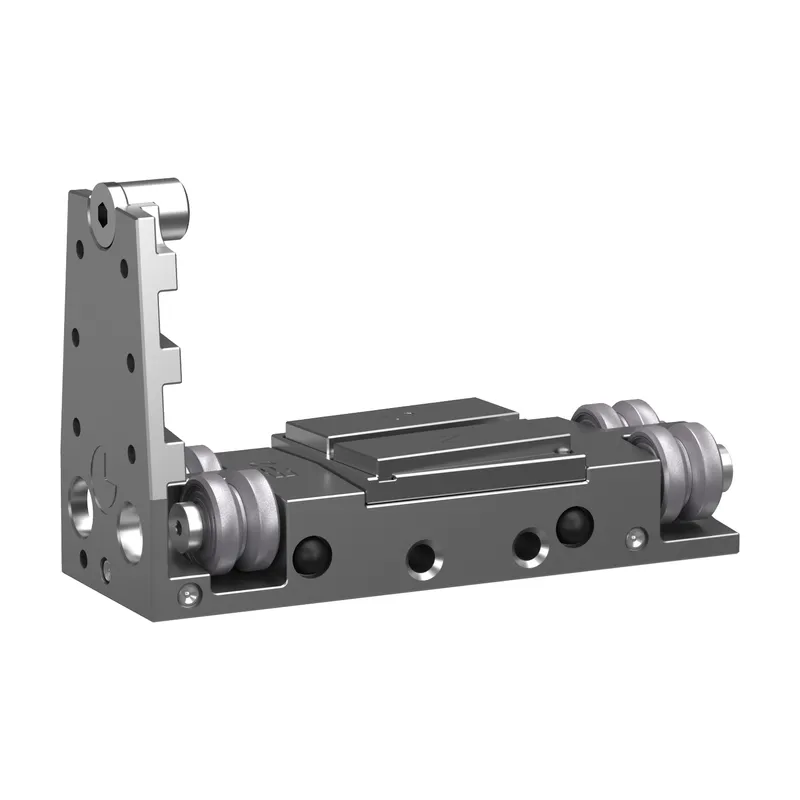

Schneider Electric LXMMC12CA5XS100

Carrier, Lexium MC12 multi carrier, 10 pieces

MPN
LXMMC12CA5XS100
EAN
3606482085251
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXMMC12CA5XS100?

"The carrier is part of Lexium MC12 multi carrier range, a modular transportation system." "Up to 130 removable carriers can move on a same track." "A carrier can moved freely throughout the track. It brakes, accelerates, positions or exerts a constant force when stationary or in motion." "The maximum payload per carrier is 2.2kg, its peak force reaches 120N." "The maximum acceleration of a carrier is 120meter/square second for 1kg. The maximum speed for a carrier is 4meter per seconds." "A carrier has 4 rollers." "This modular system is for machine applications and consists of long stator motors, on which multiple carrier units can be moved independently from each other." "This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE." "To create a transportation system, associate long stator motor segments, Guide rails, carriers, communication/power interconnects and cables." "It is sold by 10 pieces." "A carrier installs on a closed or open track, consisting of an assembly of long straight and curved stator segments" "Next generation transport system with unprecedented simplicity in installation and commissioning." "Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productLexium MC12 multi carrier
Accessory / separate part categorySpare parts
Product or component typeCarrier

Complementary

Length92 mm
Width50 mm
Depth145 mm
Quantity per set10 pieces
Net weight8 kg
Accessory / separate part designationCarrier

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LXMMC12CA5XS100: frequently asked questions

When can LXMMC12CA5XS100 be shipped?

LXMMC12CA5XS100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXMMC12CA5XS100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXMMC12CA5XS100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMMC12CA5XS100, subject to availability and destination.
