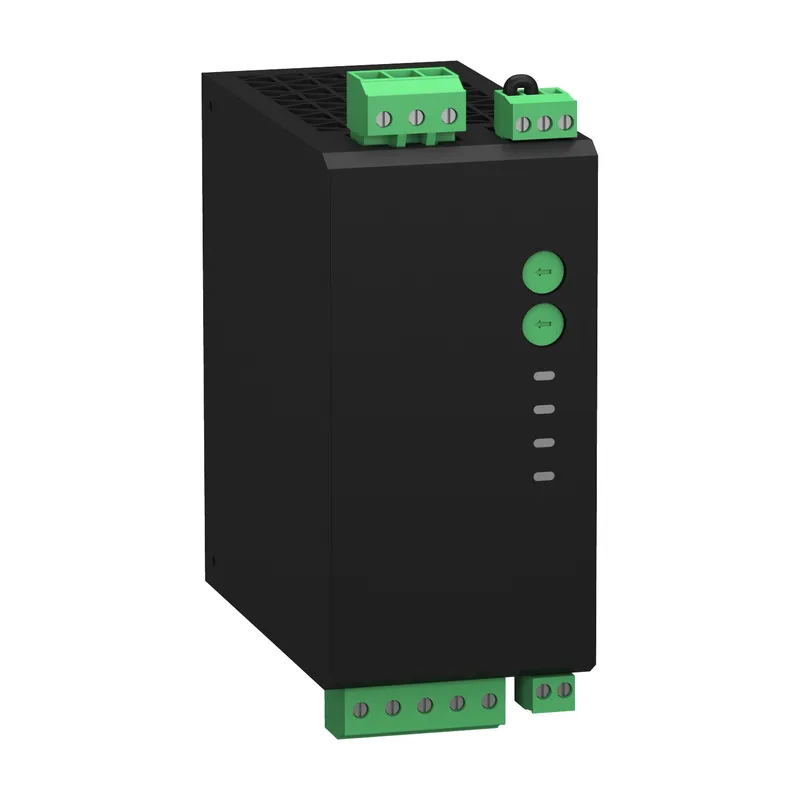

Schneider Electric LXMMCACMD02S100

Connection module, Lexium MC12, 20A, continuous power

MPN
LXMMCACMD02S100
EAN
3606482085329
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXMMCACMD02S100?

"The connection module is part of Lexium MC12 multi carrier range, a modular transportation system." "This connection module provides the internal DC Bus and power supply on tracks." "It provides 20A of continuous power to the track." "It is installed between two segments." "This is an accessory for supplying power to tracks." "This modular system is for machine applications and consists of long stator motors, on which multiple carrier units can be moved independently from each other." "This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE." "To create a transportation system, associate long stator motor segments, Guide rails, carriers, communication/power interconnects and cables." "The connection module installs on track, between two long stator segments, to connect to power supply." "Next generation transport system with unprecedented simplicity in installation and commissioning." "Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productLexium MC12 multi carrier
Accessory / separate part designationConnection module
Accessory / separate part typeConnector
Accessory / separate part categoryConnection accessories
Accessory / separate part destinationLongstator motor

Complementary

Length121 mm
Width63 mm
Depth162 mm

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LXMMCACMD02S100: frequently asked questions

When can LXMMCACMD02S100 be shipped?

LXMMCACMD02S100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXMMCACMD02S100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXMMCACMD02S100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMMCACMD02S100, subject to availability and destination.
