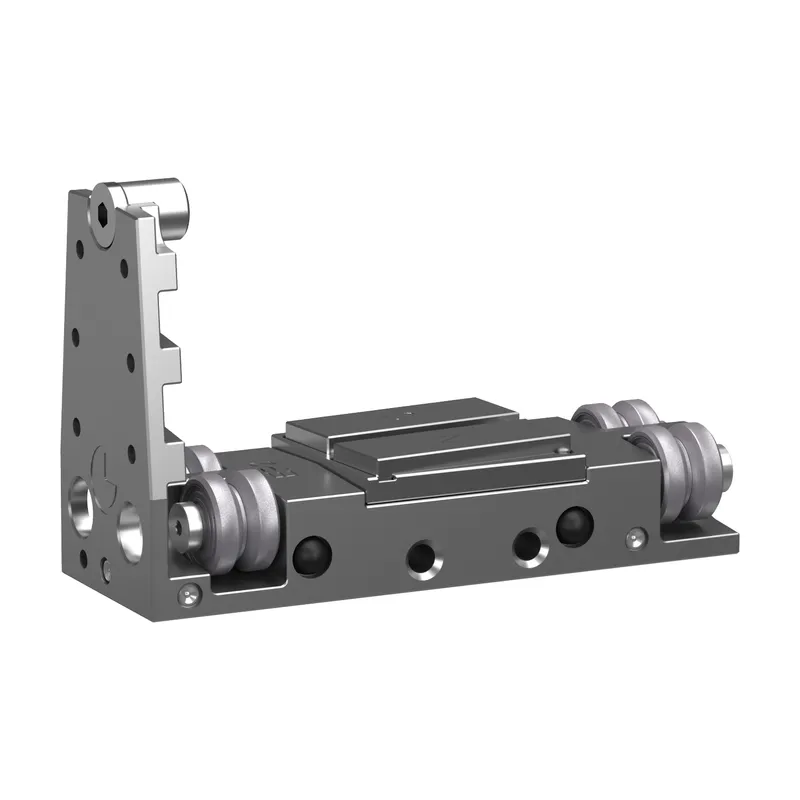

What is the Schneider Electric LXMMC12CA51S100?

"The carrier is part of Lexium MC12 multi carrier range, a modular transportation system." "Up to 130 removable carriers can move on a same track." "A carrier can moved freely throughout the track. It brakes, accelerates, positions or exerts a constant force when stationary or in motion." "The maximum payload per carrier is 2.2kg, its peak force reaches 120N." "The maximum acceleration of a carrier is 120meter/square second for 1kg. The maximum speed for a carrier is 4meter per seconds." "A carrier has 4 rollers." "This modular system is for machine applications and consists of long stator motors, on which multiple carrier units can be moved independently from each other." "This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE." "To create a transportation system, associate long stator motor segments, Guide rails, carriers, communication/power interconnects and cables." "It is sold individually." "A carrier installs on a closed or open track, consisting of an assembly of long straight and curved stator segments" "Next generation transport system with unprecedented simplicity in installation and commissioning." "Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productLexium MC12 multi carrier
Accessory / separate part categorySpare parts
Product or component typeCarrier

Complementary

Length92 mm
Width50 mm
Depth145 mm
Quantity per set1 piece
Net weight0.8 kg
Accessory / separate part designationCarrier
