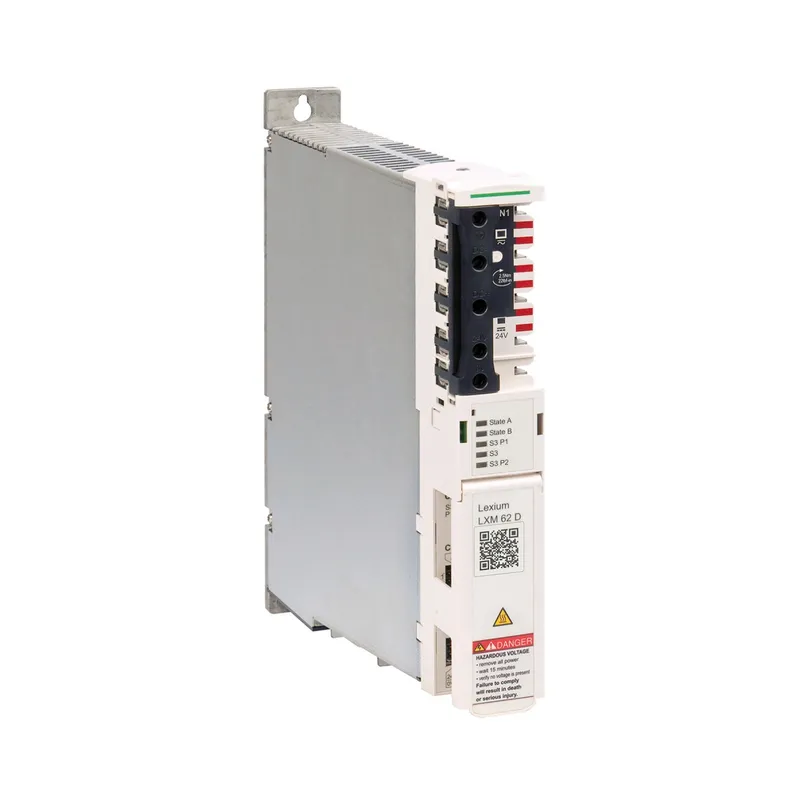

Schneider Electric LXM62DD27D21000

Lexium 62 Double Drive 27 A - accessory kit included

MPN
LXM62DD27D21000
EAN
3606485317755
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXM62DD27D21000?

This product is part of the Lexium 62 & Motors range, an offer of servo drives. The double drive features SERCOS III physical interface. It offers 2 digital/2 touch probe inputs and 2 digital outputs. It is a double drive with a rated supply voltage of 24VDC, a continuous output current of 5A at 4kHz and a continuous power of 4.3kW. It is furnished with connectors for electrical connection. It is an IP20 rated product. It weighs 3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE, CSA, EAC, TUV and UL. It meets EN 62061, EN 61800-5-1, EN 61800-3, CSA C22.2 No 14, IEC 61508, UL 508C and EN/ISO 13849-1 standards. This product is compatible with servo motor SH3 (100mm, 3 motor stacks), servo motor SH3 (100mm, 4 motor stacks) and servo motor SH3 (140mm, 1 motor stack). It includes accessory kit. Lexium 62 multi-axis servo systems can be controlled with all PacDrive 3 LMC motion controllers of the Pro/Pro2 and Eco series via SERCOS communication. Multi axis servo drives and servo motors from 0.95kW to 24kW for PacDrive based automation solutions. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productPacDrive 3
Device short nameLXM 62
Product or component typeDouble drive
Component nameLXM62

Complementary

Product compatibilityServo motor SHS; Servo motor SH3 (100 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (100 mm, 4 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (140 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (100 mm, 2 motor stacks)optimized in terms of torque and speed
Network number of phasesThree phase
[Us] rated supply voltage400 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for three phase; 230 V (- 10...10 %) for single phase
Supply frequency50/60 Hz - 5...5 %
Continuous output current9 A at 4 kHz
Output current 3s peak27 A at 4 kHz
Continuous power4.3 kW
Nominal power4.3 kW
Switching frequency8 kHz
Overvoltage categoryIII
Electrical connectionTerminal, clamping capacity: 0.2...15 mm², 24 AWG...16 AWG (CN4); Terminal, clamping capacity: 0.5...16 mm², 20 AWG...6 AWG (CN5); Terminal, clamping capacity: 0.75...16 mm², 18 AWG...6 AWG (CN6); Terminal, clamping capacity: 0.2...6 mm², 24 AWG...10 AWG (CN7)
Tightening torqueCN1: 2.5 N.m
Number of inputs2 digital; 2 touch probe
Discrete input voltage24 V DC for - 20...25 %
Number of outputs2 digital
Discrete output voltage24 V DC
Safety functionSTO (safe torque off)
Communication interfaceSERCOS III, integrated
Depth270 mm
Height310 mm
Width44.5 mm
Net weight3 kg

Environment

StandardsIEC 61800-5-1; IEC 61800-3; CSA C22.2 No 14; IEC 61508; UL 508C; ISO 13849-1; IEC 61800-5-2; ISO 13849-2; IEC 62061
Product certificationsCE; EAC; TÜV; CSA; UL
IP degree of protectionIP20 conforming to IEC 60529
Vibration resistance10 m/s² conforming to IEC 60721-3-3
Shock resistance100 m/s² conforming to IEC 60721-3-3
Pollution degree2 conforming to IEC 61800-5-2
Environmental characteristic3K3 conforming to IEC 60721-3-3
Relative humidity5…85 %
Ambient air temperature for operation5…55 °C

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LXM62DD27D21000: frequently asked questions

When can LXM62DD27D21000 be shipped?

LXM62DD27D21000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXM62DD27D21000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXM62DD27D21000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM62DD27D21000, subject to availability and destination.
