Schneider Electric LV431570

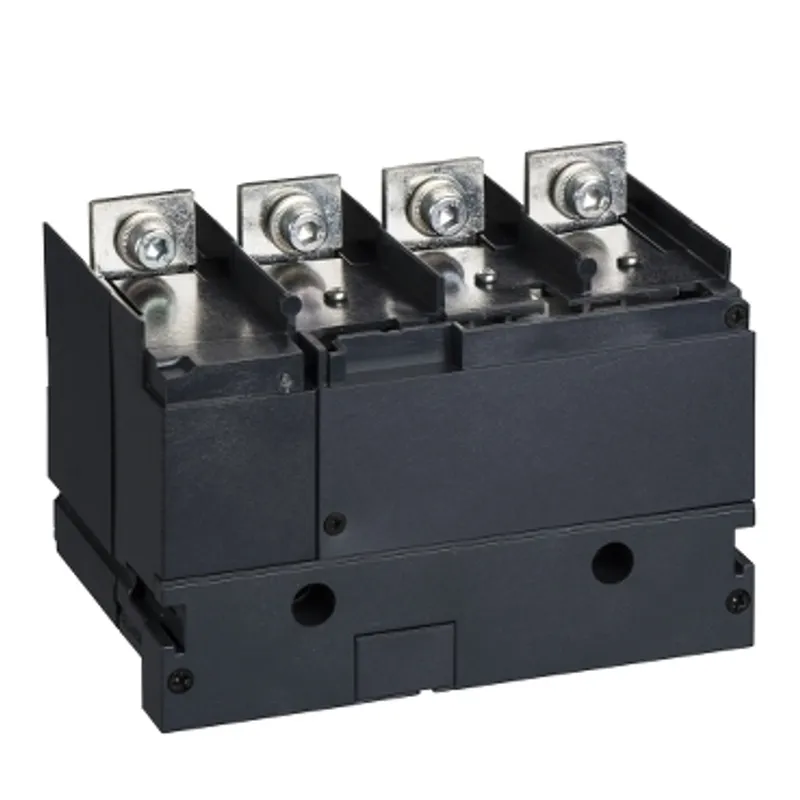

Current transformer module with voltage output, ComPact NSX250, 250A rating, 4 poles
- MPN
- LV431570
- EAN
- 3606480020803
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV431570?
This is an additional current transformer module of 250A rating with voltage measurement output for 4 poles ComPact NSX250 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 250A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 1.1VA. The class accuracy is 1. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.
Specifications
Specifications
| Device short name | CT module and voltage output |
| Product or component type | Current transformer |
| Device application | Control |
| Range compatibility | ComPact ComPact NSX250, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 4P |
| [In] rated current | 250 A |
| Current transformer ratio | 250/5 A |
| Power consumption in VA | 1.1 VA |
| Accuracy class | Class 1 |
| [Ue] rated operational voltage | 530 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Auxiliary connection terminal | Cable connector 2.5 mm² |
| Electrical shock protection class | Class II |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
Packaging
| Package 1 | 1 PCE, 17.5 cm × 14.5 cm × 13.5 cm (L × W × H), 1.115 kg |
| Package 2 | 4 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 4.947 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV431570: frequently asked questions
When can LV431570 be shipped?
LV431570 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV431570 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV431570 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV431570, subject to availability and destination.
