Schneider Electric LV431563
Terminal extensions, ComPacT NSX 100/160/250, spreaders 35mm to 45mm pitch, set of 3 parts
- MPN
- LV431563
- EAN
- 3606480019630
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV431563?

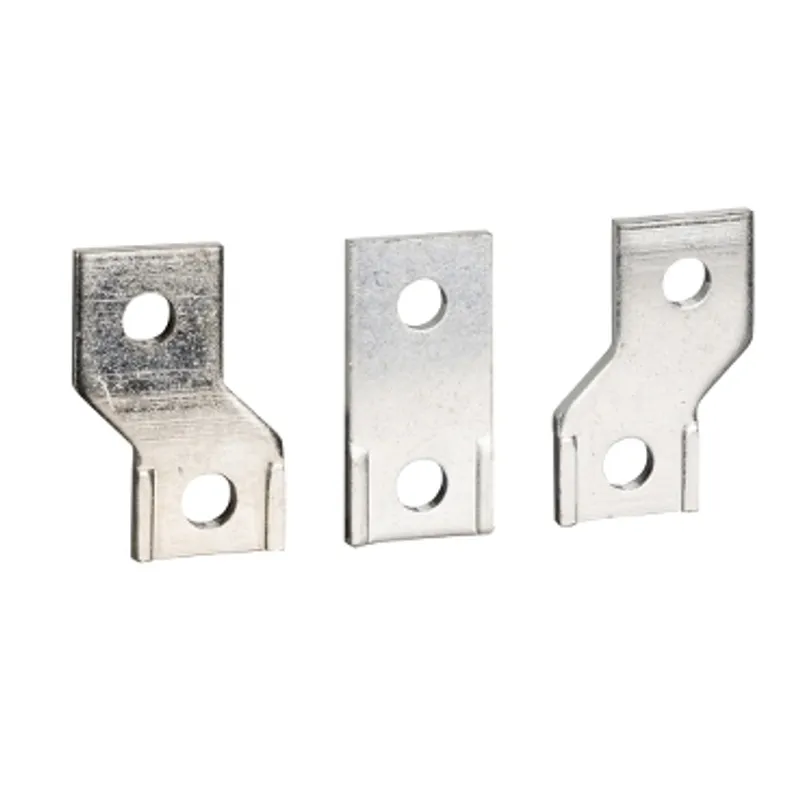

These accessories are spreaders for 3 poles Compact NSX 100/160/250 and EasyPact CVS 100/160/250. They are screwed to the circuit-breaker terminals to increase the pitch between poles from 35mm to 45mm. The rated current is up to 250 A. These spreaders are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 3 parts.
Specifications
Specifications
| Product or component type | Spreader |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPacT ComPacT NSX DC, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, EasyPact EasyPact CVS100, EasyPact EasyPact CVS160, EasyPact EasyPact CVS250, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 3P |
| Quantity per set | 3 |
| Mounting position | Straight |
| [In] rated current | 250 A |
| Connection pitch | 45 mm |
Packaging
| Package 1 | 1 PCE, 15.000 cm × 10.000 cm × 2.000 cm (L × W × H), 207.200 g |
| Package 2 | 4 BB1, 22.500 cm × 15.000 cm × 9.000 cm (L × W × H), 899.000 g |
| Package 3 | 60 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 13.192 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV431563: frequently asked questions
When can LV431563 be shipped?
LV431563 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV431563 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV431563 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV431563, subject to availability and destination.
