Schneider Electric LV432475
Short rear connections, ComPacT NSX, EasyPact CVS, 630A, set of 2 parts
- MPN
- LV432475
- EAN
- 3606480019715
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV432475?

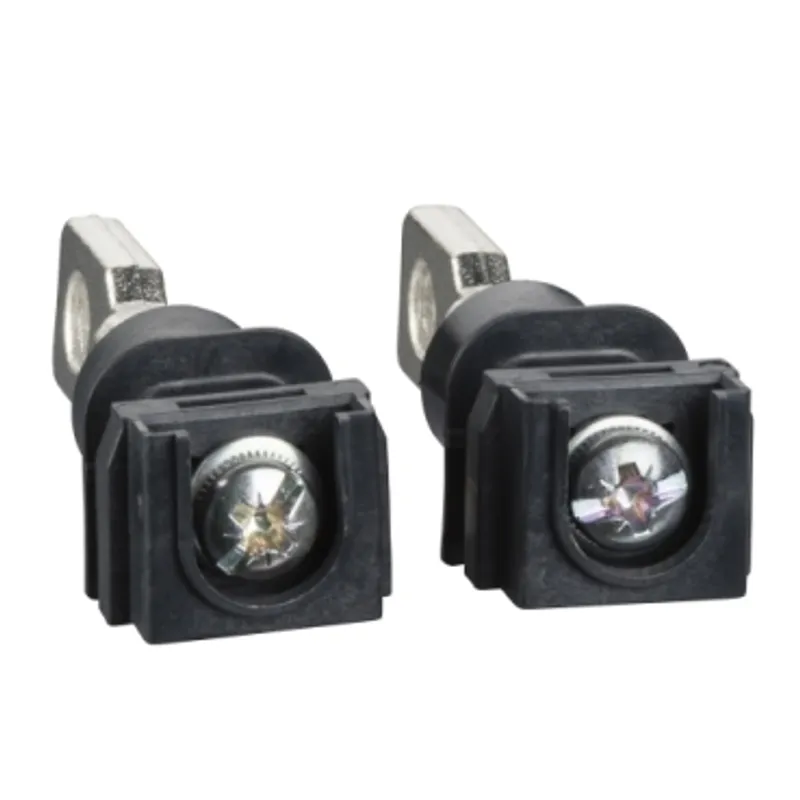

These accessories are short rear connections for Compact NSX 400/630 and EasyPact CVS 400/630. The rear connection is simply fitted to the device connection terminals. Device mounting on a backplate with suitable holes enables rear connection. The length is approximately 50mm. The rated current is up to 630 A. They are sold by set of 2 parts.
Specifications
Specifications
| Range of product | ComPacT NSX400...630, ComPacT NSX400...630 DC |
| Product or component type | Short rear connection |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPact ComPacT NSX400, ComPact ComPacT NSX630, ComPact Compact NSX400 DC, ComPact Compact NSX630 DC, EasyPact EasyPact CVS400, EasyPact EasyPact CVS630, ComPact ComPacT INS, ComPact Compact INV, ComPact Compact INSJ |
| Poles description | 4P, 3P |
| [In] rated current | 630 A |
| Location of connection | Rear |
| Shape | Short |
| Quantity per set | Set of 2 |
Packaging
| Package 1 | 1 PCE, 16.400 cm × 10.000 cm × 3.400 cm (L × W × H), 381.600 g |
| Package 2 | 20 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.032 kg |
| Package 3 | 160 P12, 120.000 cm × 80.000 cm × 50.000 cm (L × W × H), 75.056 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV432475: frequently asked questions
When can LV432475 be shipped?
LV432475 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV432475 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV432475 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV432475, subject to availability and destination.
