Schneider Electric LGY416048

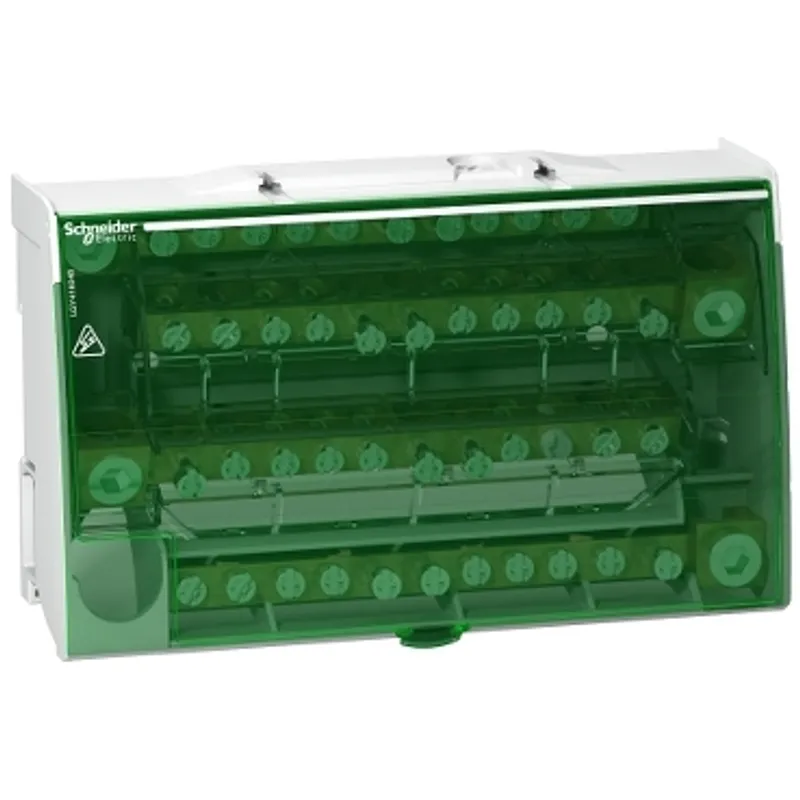

Linergy DS - screw distribution block 4P - 160A - 48 holes

MPN
LGY416048
EAN
3606480542114
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LGY416048?

This Linergy DS screw distribution blocks can be installed on a standard DIN rail or on a mounting plate. It is dedicated to 4P installations. The number of poles is 4. The total connection capacity is 48 holes (4x12). The Ie rated operational current is 160A. The Rated peak withstand current Ipk/60ms is 22kÂ, Ipk/-ms is 36kÂ. The Icw Rated short-line withstand current according to IEC/EN 60947-7-1 is 8.4kA ms/1s. The width in 9mm pitches is 18. The terminal capacity is 1x12mm diameter, 3x9mm diameter, 4x6.5mm diameter. The Ui Rated insulation voltage is 500VAC. The Uimp Rated impulse withstand voltage is 8kV. The Ue rated operational operating voltage is 230VAC (Ph/N), 440VAC (Ph/Ph). The operating frequency is 50Hz or 60Hz. The pollution degree is 3. The Overvoltage category is III. According to IEC/EN 60947-1 standard the dielectric withstand is 2500VAC. The core cross section is 70mm2. The dimensions are (H) 100mm x (W) 174mm x (D) 50,5mm. The weight is 567g. The operating temperature is -25°C to + 55°C. It complies with IEC/EN 60947-7-1 and IEC/EN 61439-1 & 2 standards.

Specifications

Specifications

RangeLinergy
Product nameLinergy DS
Product or component typeDistribution block
Mounting supportDIN rail
Range compatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
Product compatibilitySpacial enclosures
Poles description4P
Distribution block outgoers4 x 12 holes
[Ue] rated operational voltage230 V AC Ph/N, 440 V AC Ph/Ph
[Ui] rated insulation voltage500 V AC
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational current160 A at 40 °C
[Icw] rated short-time withstand current8.4 kA for 1 s
[Ipk] rated peak withstand current36 kA
Connections - terminalsDistribution: screw terminal 8 cable(s) 2.5…25 mm² rigid, Distribution: screw terminal 8 cable(s) 1.5…16 mm² flexible with cable end, Distribution: screw terminal 3 cable(s) 4…25 mm² flexible with cable end, Supply: screw terminal 1 cable(s) 25…70 mm² rigid, Supply: screw terminal 1 cable(s) 16…50 mm² flexible with cable end, Distribution: screw terminal 3 cable(s) 10…35 mm² rigid
Tightening torqueDistribution: 2 N.m flat screwdriver 7.5 mm, Distribution: 2 N.m PZ2 screwdriver 7.5 mm, Supply: 5 N.m flat screwdriver 12 mm, Supply: 5 N.m PZ2 screwdriver 12 mm, Distribution: 2.5 N.m flat screwdriver 9 mm, Distribution: 2.5 N.m PZ2 screwdriver 9 mm
9 mm pitches18
Height100 mm
Width162 mm
Depth50.5 mm
Net weight0.557 kg
ColourWhite (RAL 9003)
Pollution degree3
Overvoltage categoryIII
Dielectric strength2500 V
StandardsEN/IEC 61439-1, EN/IEC 60947-7-1
Ambient air temperature for operation-25…55 °C

Packaging

Package 11 PCE, 18.000 cm × 10.800 cm × 5.500 cm (L × W × H), 612.000 g
Package 215 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 9.654 kg
Package 3120 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 91.420 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LGY416048: frequently asked questions

When can LGY416048 be shipped?

LGY416048 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LGY416048 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LGY416048 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LGY416048, subject to availability and destination.
