Schneider Electric LGY125014

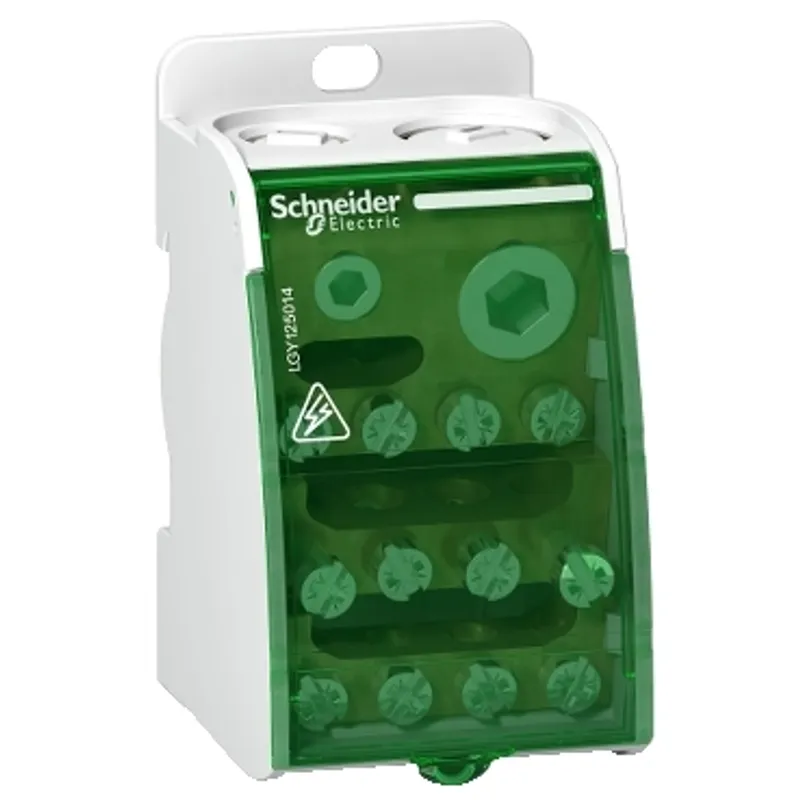

Linergy DS - screw distribution block 1P - 250A - 14 holes
- MPN
- LGY125014
- EAN
- 3606480542176
- Category
- Spacial SF/SFP
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LGY125014?
This Linergy DS screw distribution blocks can be installed on a standard Din rail or on a mounting plate. It is dedicated to 1P installations. The number of poles is 1. The total connection capacity is 14 holes. The Ie rated operational current is 250A. The Rated peak withstand current Ipk/60ms is 36kÂ. The Icw rated short-line withstand current according to IEC/EN 60947-7-1 is 8.4kA ms/1s. The width in 9mm pitches is 4. The terminal capacity is 2x12mm diameter, 3x7.5mm diameter, 8x5.8mm diameter. The Ui Rated insulation voltage is 500VAC. The Uimp Rated impulse withstand voltage is 8kV. The Ue rated operational operating voltage is 230VAC (Ph/N), 440VAC (Ph/Ph). The operating frequency is 50Hz or 60Hz. The pollution degree is 3. The Overvoltage category is III. According to IEC/EN 60947-1 standard the dielectric withstand is 2500VAC. The core cross section is 35mm2. The dimensions are (H) 85mm x (W) 36mm x (D) 50,5mm. The weight is 163g. The operating temperature is -25°C to + 55°C. It complies with IEC/EN 60947-7-1 and IEC/EN 61439-1 & 2 standards.
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy DS |
| Product or component type | Distribution block |
| Mounting support | DIN rail |
| Range compatibility | Prisma G, Prisma P, Prisma PH, Spacial, TeSys |
| Product compatibility | Spacial enclosures |
| Poles description | 1P |
| Distribution block outgoers | 14 holes |
| [Ue] rated operational voltage | 230 V AC Ph/N, 440 V AC Ph/Ph |
| [Ui] rated insulation voltage | 500 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 250 A at 40 °C |
| [Icw] rated short-time withstand current | 14.4 kA for 1 s |
| [Ipk] rated peak withstand current | 60 kA |
| Connections - terminals | Distribution: screw terminal 4 cable(s) 1.5…16 mm² rigid, Distribution: screw terminal 4 cable(s) 1.5…10 mm² flexible with cable end, Distribution: screw terminal 8 cable(s) 2.5…25 mm² rigid, Distribution: screw terminal 8 cable(s) 1.5…16 mm² flexible with cable end, Supply: screw terminal 1 cable(s) 35…120 mm² rigid, Supply: screw terminal 1 cable(s) 23…95 mm² flexible with cable end, Distribution: screw terminal 1 cable(s) 1.5…50 mm² rigid, Distribution: screw terminal 1 cable(s) 1.5…35 mm² flexible with cable end |
| Tightening torque | Distribution: 2 N.m flat screwdriver 7.5 mm, Distribution: 2 N.m PZ2 screwdriver 7.5 mm, Supply: 10 N.m flat screwdriver 15.3 mm, Supply: 10 N.m PZ2 screwdriver 15.3 mm, Distribution: 4 N.m flat screwdriver 10 mm, Distribution: 4 N.m PZ2 screwdriver 10 mm, Distribution: 2 N.m flat screwdriver 6 mm, Distribution: 2 N.m PZ2 screwdriver 6 mm |
| 9 mm pitches | 5 |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 50.5 mm |
| Net weight | 0.252 kg |
| Colour | White (RAL 9003) |
| Pollution degree | 3 |
| Overvoltage category | III |
| Dielectric strength | 2500 V |
| Standards | EN/IEC 60947-7-1, EN/IEC 61439-1 |
| Ambient air temperature for operation | -25…55 °C |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 5.500 cm × 5.000 cm (L × W × H), 253.000 g |
| Package 2 | 40 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.670 kg |
| Package 3 | 320 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 95.500 kg |
