Spacial SF/SFP Parts

Schneider Electric

Linergy - additional Neutral bar for screw distri block - 125 A - 15 connections

Schneider Electric

Linergy - additional Neutral bar for screw distri block - 125 A - 12 connections

Schneider Electric

Linergy - additional Neutral bar for screw distrib block - 100 A - 7 connections

Schneider Electric

Linergy DS - screw distribution block 4P - 160A - 48 holes

Schneider Electric

Linergy DS - screw distribution block 4P - 125A - 60 holes

Schneider Electric

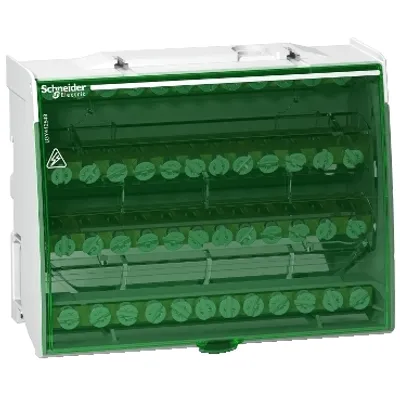

Linergy DS - screw distribution block 4P - 125A - 48 holes

Schneider Electric

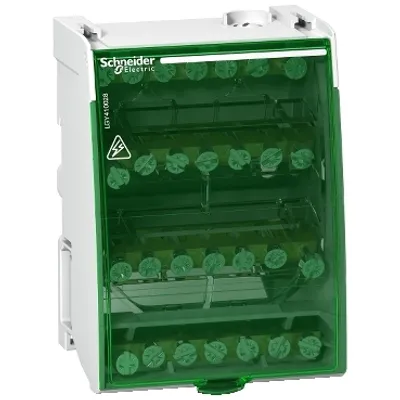

Linergy DS - screw distribution block 4P - 100A - 28 holes

Schneider Electric

Linergy DS - screw distribution block 1P - 250A - 14 holes

Schneider Electric

Linergy DS - screw distribution block 1P - 160A - 13 holes

Schneider Electric

Linergy DS - screw distribution block 1P - 125A - 10 holes

Compare Spacial SF/SFP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Distribution block outgoers	[Ipk] rated peak withstand current	9 mm pitches	Width	Net weight
LGYN12515	15 holes	20 kA	17	155 mm	149 g
LGYN12512	12 holes	20 kA	14	125 mm	111 g
LGYN1007	7 holes	20 kA	7	70 mm	63 g
LGY416048	4 x 12 holes	36 kA	18	162 mm	0.557 kg
LGY412560	4 x 15 holes	28 kA	20	174 mm	0.562 kg
LGY412548	4 x 12 holes	26 kA	14	126 mm	0.386 kg
LGY410028	4 x 7 holes	24 kA	8	71 mm	0.21 kg
LGY125014	14 holes	60 kA	5	45 mm	0.252 kg
LGY116013	13 holes	36 kA	4	36 mm	0.168 kg
LGY112510	10 holes	25 kA	3	27 mm	0.127 kg

Range	Linergy
Product name	Linergy DS
[Ui] rated insulation voltage	500 V AC
Pollution degree	3
Overvoltage category	III
Dielectric strength	2500 V
Ambient air temperature for operation	-25…55 °C
Colour	White (RAL 9003)
