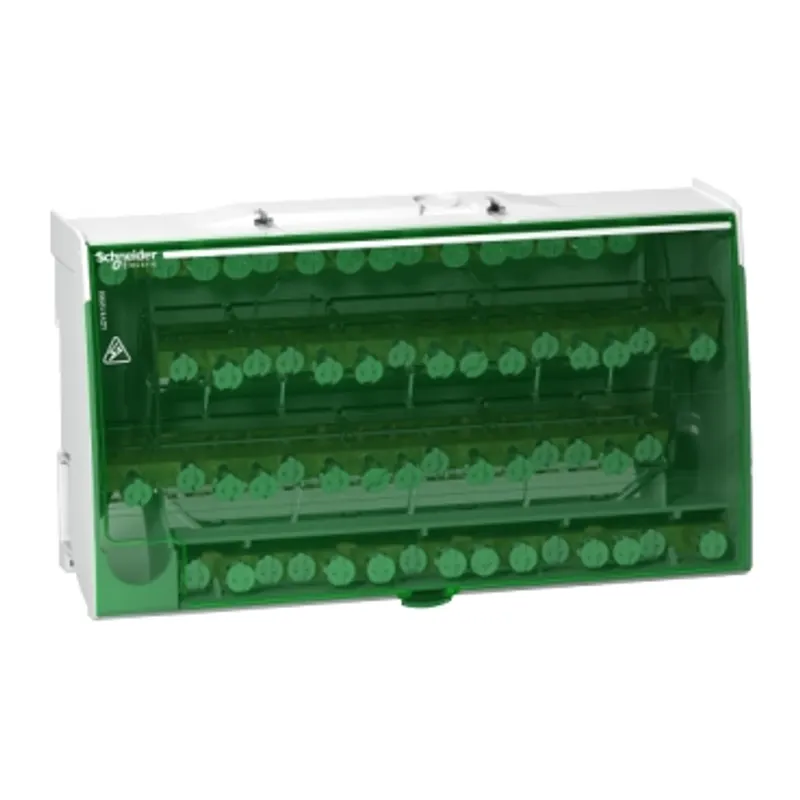

Schneider Electric LGY412560

Linergy DS - screw distribution block 4P - 125A - 60 holes

MPN
LGY412560
EAN
3606480542107
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LGY412560?

This Linergy DS screw distribution blocks can be installed on a standard Din rail or on a mounting plate. It is dedicated to 4P installations. The number of poles is 4. The total connection capacity is 60 holes (4x15). The Ie rated operational current is 125A. The Rated peak withstand current Ipk/60ms is 18kÂ, Ipk/6ms is 28kÂ. The Icw rated short-line withstand current according to IEC/EN 60947-7-1 is 4.2kA ms/1s. The width in 9mm pitches is 20. The terminal capacity is 1x9mm diameter, 3x8.5mm diameter, 4x6.5mm diameter. The Ui Rated insulation voltage is 500VAC. The Uimp Rated impulse withstand voltage is 8kV. The Ue rated operational operating voltage is 230VAC (Ph/N), 440VAC (Ph/Ph). The operating frequency is 50Hz or 60Hz. The pollution degree is 3. The Overvoltage category is III. According to IEC/EN 60947-1 standard the dielectric withstand is 2500VAC. The core cross section is 35mm2. The dimensions are (H) 100mm x (W) 162mm x (D) 50,5mm. The weight is 559g. The operating temperature is -25°C to + 55°C. It complies with IEC/EN 60947-7-1 and IEC/EN 61439-1 & 2 standards.

Specifications

Specifications

RangeLinergy
Product nameLinergy DS
Product or component typeDistribution block
Mounting supportDIN rail
Range compatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys, ComPact
Product compatibilitySpacial enclosures
Poles description4P
Distribution block outgoers4 x 15 holes
[Ue] rated operational voltage230 V AC Ph/N, 440 V AC Ph/Ph
[Ui] rated insulation voltage500 V AC
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational current125 A at 40 °C
[Icw] rated short-time withstand current4.2 kA for 1 s
[Ipk] rated peak withstand current28 kA
Connections - terminalsSupply: screw terminal 1 cable(s) 10…35 mm² rigid, Supply: screw terminal 1 cable(s) 6…35 mm² flexible with cable end, Distribution: screw terminal 3 cable(s) 6…35 mm² rigid, Distribution: screw terminal 3 cable(s) 4…25 mm² flexible with cable end, Distribution: screw terminal 11 cable(s) 1.5…16 mm² rigid, Distribution: screw terminal 11 cable(s) 1.5…10 mm² flexible with cable end
Tightening torqueDistribution: 2 N.m flat screwdriver 6.5 mm, Distribution: 2 N.m PZ2 screwdriver 6.5 mm, Supply: 2.5 N.m flat screwdriver 9.5 mm, Supply: 2.5 N.m PZ2 screwdriver 9.5 mm, Distribution: 2 N.m flat screwdriver 8.5 mm, Distribution: 2 N.m PZ2 screwdriver 8.5 mm
9 mm pitches20
Height100 mm
Width174 mm
Depth50.5 mm
Net weight0.562 kg
ColourWhite (RAL 9003)
Pollution degree3
Overvoltage categoryIII
Dielectric strength2500 V
StandardsEN/IEC 60947-7-1, EN/IEC 61439-1
Ambient air temperature for operation-25…55 °C

Packaging

Package 11 PCE, 18.000 cm × 10.500 cm × 5.500 cm (L × W × H), 603.000 g
Package 215 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 9.502 kg
Package 3120 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 90.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LGY412560: frequently asked questions

When can LGY412560 be shipped?

LGY412560 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LGY412560 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LGY412560 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LGY412560, subject to availability and destination.
