Schneider Electric HMISTU655

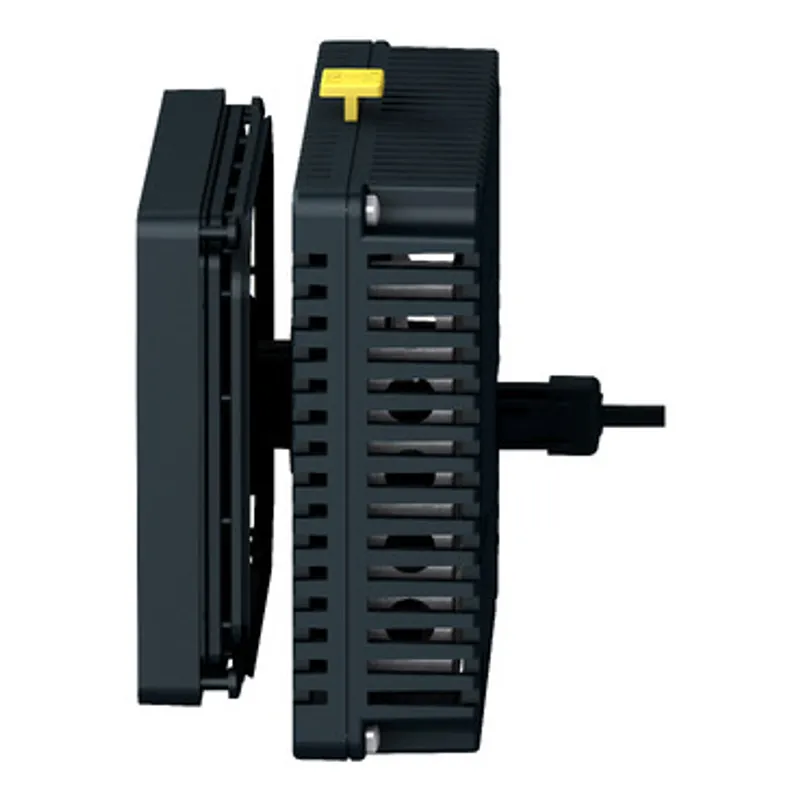

Colour touch panel screen, Harmony STO & STU, 3.5inch wide

MPN
HMISTU655
EAN
3606489909482
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMISTU655?

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Specifications

Specifications

Range of productHarmony STO & STU
Product or component typeTouch panel screen
Software packageVijeo Designer
Processor nameARM926EJ-S
Display size3.5 inch
Display typeQVGA TFT colour touchscreen
Display colour65536 colours
Display resolution320 x 240 pixels QVGA
Touch panelAnalogue
Backlight lifespan50000 hours
Brightness16 levels
Character fontChinese (simplified Chinese), Japanese (ANK, Kanji), ASCII, Korean, Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits20.4…28.8 V
Inrush current30 A
Power consumption in W6.5 W
Number of pagesLimited by internal memory capacity
Memory descriptionApplication memory 16 MB, Back up of data 64 kB
Integrated connection type1 USB 2.0 type mini B, 1 USB 2.0 type A, COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s), power supply - removable screw terminal block, 1 Ethernet - RJ45
Realtime clockAccess to the PLC real-time clock
Downloadable protocolsModbus TCP/IP, Modbus, Uni-TE, Third party protocols
Fixing modeØ 22 mm hole
Enclosure materialPC/PBT
MarkingWith Schneider logo, CE
Height98.15 mm
Width118 mm
Depth55.3 mm
Immunity to microbreaks10 ms
StandardsIEC 61000-6-2, IEC 61131-2, UL 1604, UL 508, FCC Class A
Product certificationscULus, C-Tick, Marine, UL class 1 Div2 T4A ou T5, UKCA
Ambient air temperature for operation0…50 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
Operating altitude<= 2000 m
IP degree of protectionIP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (indoor use)
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6, 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3

Packaging

Package 11 PCE, 18.500 cm × 13.500 cm × 7.000 cm (L × W × H), 563.000 g
Package 216 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 9.713 kg
