Schneider Electric HMISTU855W

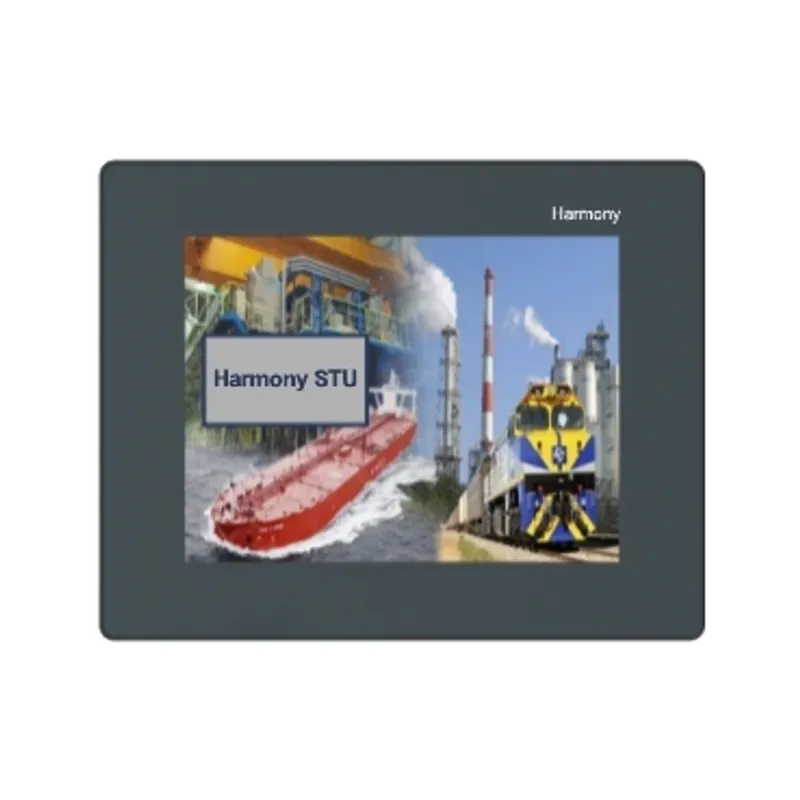

Colour touch panel screen, Harmony STO & STU, 5.7inch wide, without Schneider logo

MPN
HMISTU855W
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMISTU855W?

The touch panel screen features 5.7inch TFT color display, supports 320 x 240 pixels QVGA resolution. It is equipped with 1 USB 2.0 type mini B, 1 USB 2.0 type A, removable screw terminal block for power supply and COM1 serial link (female RJ45, RS232C/RS485 integrated). The screen supports Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean and ASCII character fonts. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It is an IP20/IP65 and NEMA 4X rated product. The enclosure is made of PC/PBT and PPA. Its dimensions are 163mm (width) x 56.5mm (depth) x 129.15mm (height). It is suitable for simple machines and infrastructure applications. This product is certified by CULus, C-Tick, UL class 1 Div2 T4A or T5 and Marine. It meets IEC 61000-6-2, UL 508, UL 1604, EN 61131-2 and FCC Class A standards. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.

Specifications

Specifications

Range of productHarmony STO & STU
Product or component typeTouch panel screen
Processor nameCPU ARM9
Display size5.7 inch
Display typeQVGA TFT colour touchscreen
Display colour65536 colours
Display resolution320 x 240 pixels QVGA
Touch panelAnalogue
Backlight lifespan50000 hours
Brightness16 levels
Character fontASCII, Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits20.4…28.8 V
Inrush current30 A
Power consumption in W6.8 W
Number of pagesLimited by internal memory capacity
Processor frequency333 MHz
Memory descriptionApplication memory 16 MB, Back up of data 64 kB
Integrated connection type1 USB 2.0 type mini B, 1 USB 2.0 type A, COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s), power supply - removable screw terminal block, 1 Ethernet - RJ45
Realtime clockAccess to the PLC real-time clock
Downloadable protocolsThird party protocols, Uni-TE, Modbus, Modbus TCP/IP
Fixing modeØ 22 mm hole
Enclosure materialPC/PBT and PAA
MarkingCE, Without Schneider logo
Height129.15 mm
Width163 mm
Depth56.5 mm
Net weight0.871 kg
Immunity to microbreaks7 ms
StandardsIEC 61000-6-2, UL 508, UL 1604, IEC 61131-2, FCC Class A
Product certificationscULus, C-Tick, UL class 1 Div2 T4A ou T5, Marine, UKCA
Ambient air temperature for operation0…50 °C
Ambient air temperature for storage-20…60 °C
Relative humidity0…85 % without condensation
Operating altitude<= 2000 m
IP degree of protectionIP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (indoor use)
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6, 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3

Packaging

Package 11 PCE, 27.000 cm × 19.000 cm × 7.500 cm (L × W × H), 912.000 g
Package 28 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.037 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

HMISTU855W: frequently asked questions

When can HMISTU855W be shipped?

HMISTU855W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HMISTU855W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HMISTU855W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMISTU855W, subject to availability and destination.
