Schneider Electric EMS59000

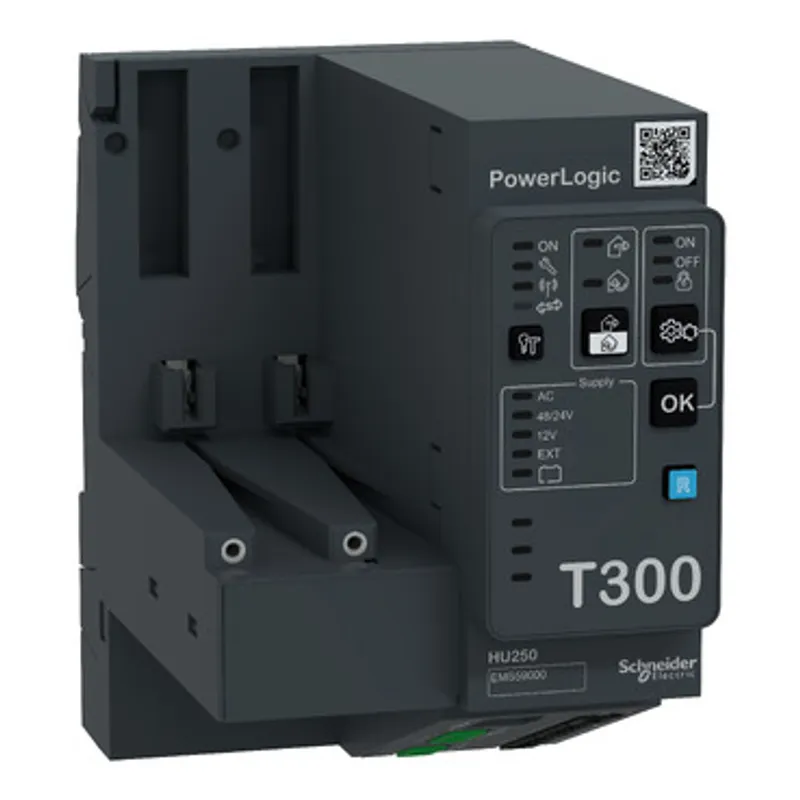

PowerLogic HU250: Head Unit communication gateway with cyber security management
- MPN
- EMS59000
- EAN
- 3606480802676
- Category
- PowerLogic™ T300
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric EMS59000?
Head unit communication gateway with cyber security management. It include for communication port: 5 RJ45 for Ethernet, 1 RJ45 for modbus, 1 RJ45 for USB, 1 RJ45 for RS and RS232, and 1 SMA for 3G and 4G. The number of digital inputs is 6 for multi purpose and 2 for remote control. And number of digital outputs is 2 for multi purpose. This product can be clip in DIN rail. Supply voltage can range from 12 to 48 VDC. The degree of protection is IP2x for body and IP4x in the front. It complies with CE certificat. Mechanical dimensions are 140 mm in height, 90 mm in width and 140 mm in length.
Specifications
Specifications
| Range of product | PowerLogic T300 |
| Range | PowerLogic |
| Product name | PowerLogic T300 |
| Device short name | HU250 |
| Product or component type | Communication gateway |
| Communication port protocol | DNP3 serial and TCP master station/outstation, Modbus serial and TCP client/server, Modbus RTU client/server, IEC 61850-8-1 controlling/controlled station, IEC 60870-5-104 controlling/controlled station, IEC 60870-5-101 controlled station |
| Communication port support | ETHERNET 4 RJ45, RS485/RS232 1 RJ45, 3G/4G 1 SMA |
| Data recording | Event logs, 4 data logs, 1 ms time stamps, 500000 events, Sequence of event recording |
| Memory capacity | 16 MB |
| Time synchronisation protocol | NTP, SNTP, GPS |
| Synchronisation time between inputs | 1 ms |
| Control type | Illuminated push-button status: |
| Communication service | Web server local WiFi:, Web server local Ethernet:, Web server remote WAN: |
| web services | Event log, Alarm, Operating/Status report, Assistance in commissioning and operating the installation, Security/authority verification, Reports and diagrams |
| Programming language | Calculation formula, ST (structured text), IL (instruction list), LD (ladder), FBD (function block diagram), SFC (sequential function chart) |
| Number of inputs | 8 digital multi-purpose conforming to IEC 61131-2 type 3, 2 digital remote control, 1 analog measure temperature |
| Number of outputs | 2 digital (relay) multi-purpose: |
| [Us] rated supply voltage | 12...48 V DC +/- 20 % |
| Power consumption in VA | 3 VA |
| User language | Multi-language |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4, Conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, Conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16, 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12, Radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3, Immunity to voltage dips criteria A conforming to IEC 61000-4-29, Electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2, Surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, Magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, Conducted and radiated emissions class A conforming to EN 55022 |
| Fixing mode | Clip-in (DIN rail) |
| Type of installation | Indoor, Outdoor in cabinet |
| IP degree of protection | IP2X body: conforming to IEC 60529, IP4X front: conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Relative humidity | 5…95 % conforming to IEC 60068-2-30 |
| Mechanical robustness | Vibrations 10…2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6, Bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29, Shocks 11 ms 3 pulses in operation conforming to IEC 60068-2-27 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| Operating altitude | 2000 m |
| Product certifications | CE |
| Standards | IEC 60255-27 |
| Height | 140 mm |
| Width | 90 mm |
| Depth | 140 mm |
| Net weight | 0.55 kg |
Packaging
| Package 1 | 1 PCE, 19.800 cm × 19.100 cm × 11.900 cm (L × W × H), 765.000 g |
| Package 2 | 9 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 7.277 kg |
