Schneider Electric EMS59202
PowerLogic SC150 CT-CAPA: Switch controller, 1/5 A, VPIS/VDS/PPACS sensors
- MPN
- EMS59202
- EAN
- 3606480802942
- Category
- PowerLogic™ T300
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric EMS59202?

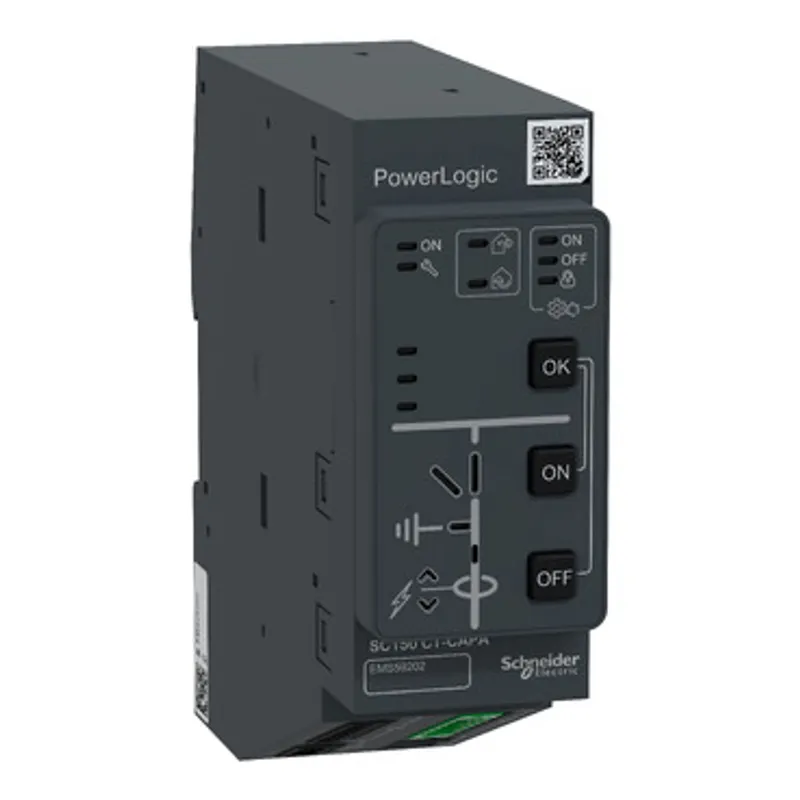

The PowerLogic SC150 module offers many high-performance features needed to measure and detect a fault current on the MV line. The switch controller are designed for clip in DIN rail. The measurement voltage range from 0…30 VAC VPIS and from 0…30 VAC PPACS. It include 8 digital inputs, 2 digital relay switch, and 2 RJ45 communication port. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 140 mm in height, 45 mm in width and 140 mm in depth.
Specifications
Specifications
| Range of product | PowerLogic T300 |
| Device short name | SC150 |
| Product or component type | MV switch controller |
| protection or fault passage indication function | ANSI 50/51 : overcurrent, ANSI 50N/51N : earth fault, ANSI 67 : directional phase overcurrent, ANSI 67N : directional earth fault, ANSI 47 : negative sequence overvoltage, ANSI 27 : undervoltage, ANSI 59 : overvoltage, ANSI 59N : neutral voltage displacement, ANSI 37 : phase undercurrent |
| power measurement | Voltage, Frequency, Current |
| measurement accuracy | Current: class 0.5, Voltage: class 0.5 |
| Data recording | Counter, Current value before fault, Sequence of event recording, Event logs, Demand values |
| Memory capacity | 4 MB |
| Synchronisation time between inputs | 1 ms |
| Control type | Illuminated push-button status: |
| web services | Alarm, Event log, Assistance in commissioning and operating the installation, Security/authority verification, Reports and diagrams, Operating/Status report |
| [Us] rated supply voltage | 12...48 V DC +/- 20 % |
| Power consumption in VA | 2 VA |
| Communication port protocol | IEC 60870-5-104 |
| Communication port support | ETHERNET 2 RJ45 |
| Number of inputs | 8 digital conforming to IEC 61131-2 type 3 |
| Measurement current | 1 A, 5 A |
| Analogue input type | Current 0.01...35 A (impedance 0.001 Ohm)4 x |
| Measurement voltage | : 0…30 V VPIS AC at 50/60 Hz (single or three phases), : 0…30 V VDS LRM AC at 50/60 Hz (single or three phases), : 0…30 V PPACS AC at 50/60 Hz (single or three phases) |
| Number of outputs | 2 digital (relay) switch: |
| Maximum switching voltage | 440 V AC |
| rated motor mechanism voltage | 12...127 V DC motor:, 90...220 V AC motor: |
| Continuous output current | 8 A |
| breaking capacity | 2000 VA |
| Irms rated making capacity | 15 A during 4 s |
| Fixing mode | Clip-in (DIN rail) |
| Type of installation | Indoor, Outdoor in cabinet |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4, Conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, Conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16, 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12, Radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3, Immunity to voltage dips criteria A conforming to IEC 61000-4-29, Electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2, Surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, Magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, Conducted and radiated emissions class A conforming to EN 55022 |
| IP degree of protection | IP2X body: conforming to IEC 60529, IP4X front: conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Relative humidity | 5…95 % conforming to IEC 60068-2-30 |
| Mechanical robustness | Vibrations 10…2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6, Bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29, Shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| Operating altitude | 2000 m |
| Product certifications | CE |
| Standards | IEC 60255-27, IEC 61557-12, IEC 62586-1, IEC 61000-4-30:class S, IEC 61850 |
| Height | 140 mm |
| Width | 45 mm |
| Depth | 140 mm |
| Net weight | 0.515 kg |
Packaging
| Package 1 | 1 PCE, 20.0 cm × 19.0 cm × 8.0 cm (L × W × H), 668.0 g |
| Package 2 | 8 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 5.794 kg |
