Schneider Electric EMS58188

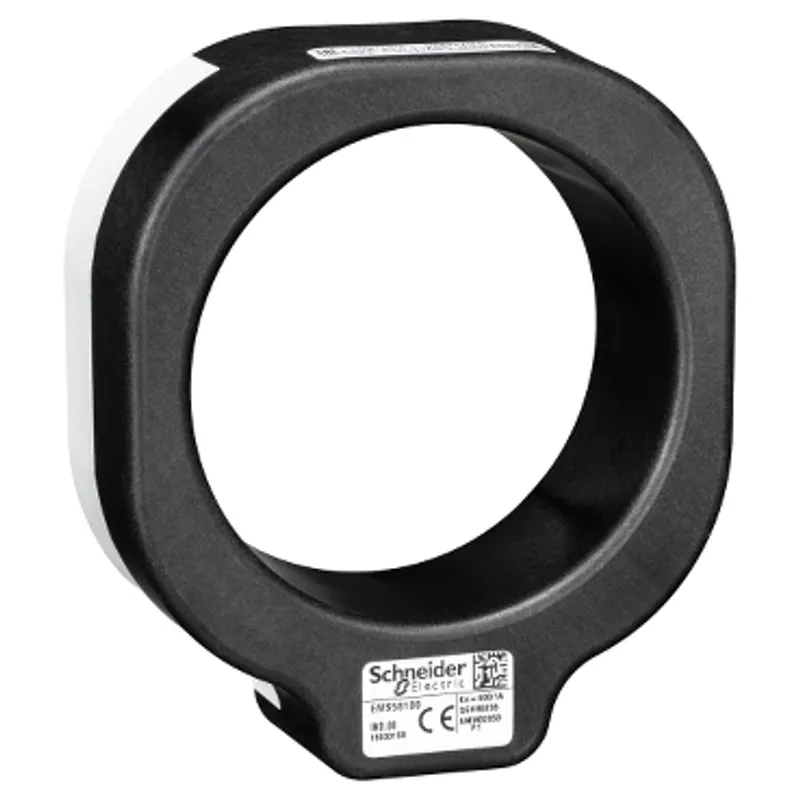

Kit of 3 PowerLogic CTR500-C05 class 0.5 solid-core 500/1 CTs for RM6 bushings
- MPN
- EMS58188
- EAN
- 3606489523350
- Category
- PowerLogic™ T300
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric EMS58188?
Schneider Electric Kit of 3 PowerLogic CTR500-C05 class 0.5 solid-core 500/1 CTs for RM6 bushings, manufacturer part number EMS58188. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | PowerLogic T300 |
| Device short name | CTR500-C05 |
| Product or component type | Current transformer |
| Current transformer type | Solid core |
| primary current | 500 A |
| Secondary current | 1 A |
| Current transformer ratio | 500/1 |
| Network frequency | 50/60 Hz |
| Accuracy class | Class 0.5 |
| Standards | IEC 61869 |
| Connector type | AMP connector |
| [Ith] conventional free air thermal current | 50 kA for 1 s |
| Dynamic withstand current | 2.5 x Ith |
| [Ithe] conventional enclosed thermal current | 600 A |
| Safety factor | 6 |
| rated output | 1.5 VA |
| rated burden | 1.5 Ohm |
| highest voltage for equipment | < 720 V |
| [Ui] rated insulation voltage | 4 kV for 1 min |
| rated lightning impulse level | 5 kV |
| [Uoc] open circuit voltage | 1 kV RMS voltage, 3 kV peak |
| Protection type | Surge arrester |
| Mounting support | RM6 bushing |
| Product compatibility | EMS58130, EMS58131, EMS58132, EMS58133, EMS58134, EMS58135, EMS58136, EMS58137 |
| Height | 36 mm |
| Diameter | 122 mm outer: |
| Net weight | 1.6 kg |
| IP degree of protection | IP46 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Relative humidity | 0…95 % for 24 hours, 0…90 % for 1 month |
| Ambient air temperature for operation | -40…70 °C |
| Environmental characteristic | 3C1 conforming to IEC 60721-3-3 |
Packaging
| Package 1 | 1 PCE, 25.0 cm × 23.5 cm × 7.5 cm (L × W × H), 1.634 kg |
| Package 2 | 5 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 8.17 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
EMS58188: frequently asked questions
When can EMS58188 be shipped?
EMS58188 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EMS58188 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EMS58188 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EMS58188, subject to availability and destination.
