Schneider Electric EMS58175

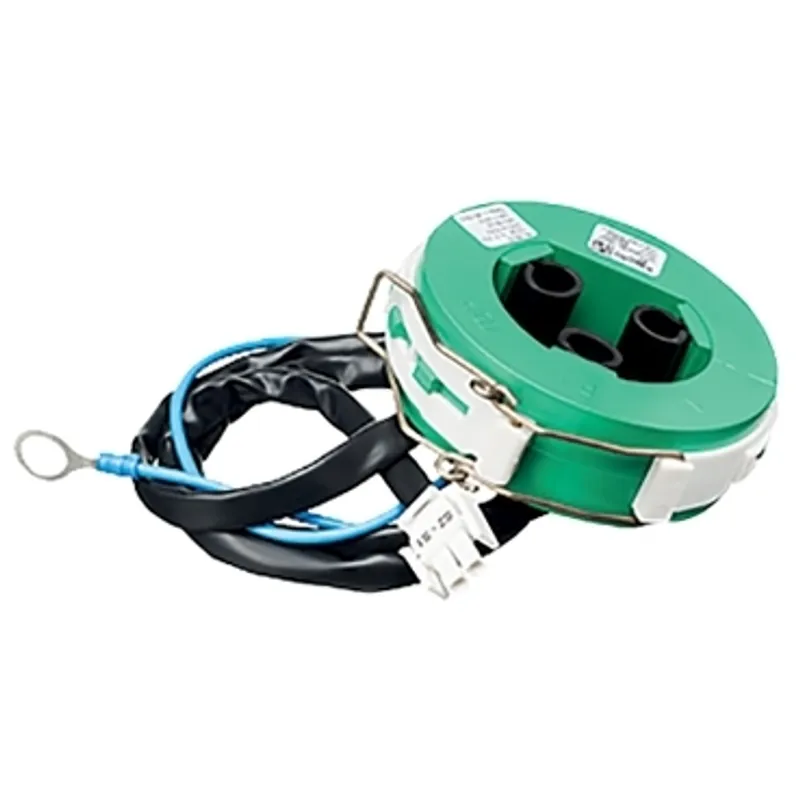

Kit 3 PowerLogic SCTR500-1 500/1 class 3 Current Transformers (KSCTR500-1)
- MPN
- EMS58175
- EAN
- 3606480675904
- Category
- PowerLogic™ T300
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric EMS58175?
This current transformer, has a line rated current of 500 A and a secondary current rating of 1 A. This current transformer allow a maximum cable outer diameter of 110 mm. rated power and accuracy class as follows: class 3 rated power: 1.5 VA.
Specifications
Specifications
| Range of product | Easergy ITI3, Easergy Flair 5xx, PowerLogic T300 |
| Device short name | SCTR500-1 |
| Product or component type | Current transformer |
| Current transformer type | Split core |
| primary current | 500 A |
| Secondary current | 1 A |
| Current transformer ratio | 500/1 |
| Network frequency | 50/60 Hz |
| Accuracy class | Class 3 |
| Standards | IEC 61869 |
| Connector type | AMP connector |
| [Ith] conventional free air thermal current | 50 kA for 1 s |
| Dynamic withstand current | 2.5 x Ith |
| [Ithe] conventional enclosed thermal current | 600 A |
| Safety factor | 7 |
| rated output | 1.5 VA |
| rated burden | 1.5 Ohm |
| highest voltage for equipment | < 720 V |
| [Ui] rated insulation voltage | 4 kV for 1 min |
| rated lightning impulse level | 5 kV |
| [Uoc] open circuit voltage | 1 kV RMS voltage, 5 kV peak |
| Maximum number of turns | 491 |
| Protection type | Surge arrester |
| Mounting support | Cables |
| Product compatibility | EMS58130, EMS58131, EMS58132, EMS58133, EMS58134, EMS58135, EMS58136, EMS58137 |
| Height | 35 mm |
| Diameter | 110 mm outer: |
| Cable outer diameter | 30…40 mm |
| IP degree of protection | IP30 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Relative humidity | 0…95 % for 24 hours, 0…90 % for 1 month |
| Ambient air temperature for operation | -40…70 °C |
| Environmental characteristic | 3C1 conforming to IEC 60721-3-3 |
Packaging
| Package 1 | 1 PCE, 25.000 cm × 24.000 cm × 7.500 cm (L × W × H), 2.428 kg |
| Package 2 | 5 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 12.538 kg |
