Schneider Electric CCT15367

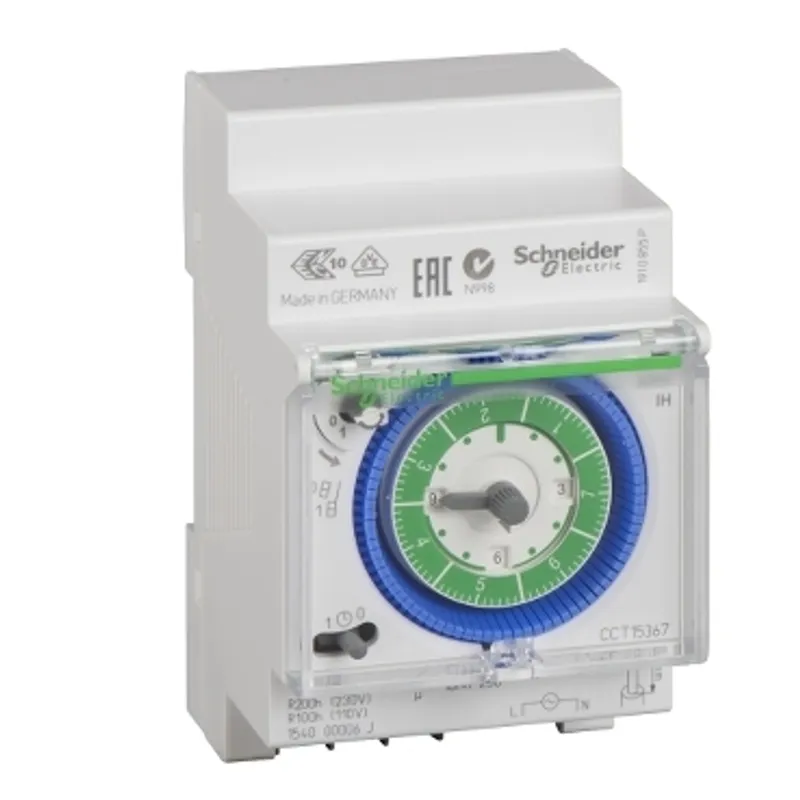

Acti9 - IH - mechanical time switch - 7 days - 150 h memory
- MPN
- CCT15367
- EAN
- 3606480179594
- Category
- IH
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric CCT15367?
Acti 9 Mechanical time switch IH 7j 1c ARM. Automatically switch On and Off loads according to the program entered by the user they operate on an weekly cycle. The same program is repeated week after week (IH 7j). The program can be overriden On. Voltage rating (Ue): 110-230 V AC, +10 %,-15 %, 50/60 Hz. Consumption 2.5 VA. Operating temperature -20°C to +55°C. Width (9 mm modules): 6. Degree of protection: IP20B. Output contact rating 250 V: 16 A cos Phi 1. 4 A cos Phi 0.6. Number of switching operations: 42 On - 42 Off. Switching accuracy: ±1 s per day at 20°C. Programming by Captive segments: 84.
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Device application | Building |
| Load type | 230 V AC halogen lamp 1000 W, 230 V AC incandescent lamp 1100 W, 230 V AC fluocompact lamp 600 VA, Parallel-corrected fluorescent tube 2 x electronic ballast 40 W 12 µF, Compact fluorescent lampelectronic ballast 25 W, LED lamp < 2 W 20 W, LED lamp > 2 W 180 W |
| Cycle duration | 7 days |
| Maximum number of switchings | 42 on - 42 off |
| Minimum interval duration | 2 h |
| Type of setting | Manual time changeover |
| Measurement accuracy | +/- 1 s/day 20 °C |
| Power consumption in W | 0.5 W |
| Maximum switching current | 16 A - 250 V AC pf = 1, 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 110...230 V AC at 50...60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Battery life | 6 year(s) |
| Backup time | 150 h time and program saving 230 V AC, 75 h time and program saving 110 V AC |
| Mounting support | DIN rail |
| 9 mm pitches | 6 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screwless terminals |
| Clamping connection capacity | 2 x 0.5...2 .5 mm² |
| Width | 54 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Net weight | 0.2 kg |
| Standards | EN 60730-1 |
| Ambient air temperature for operation | -20…55 °C |
| IP degree of protection | IP20 conforming to EN 60529 |
Packaging
| Package 1 | 1 PCE, 10.500 cm × 6.500 cm × 7.800 cm (L × W × H), 152.000 g |
| Package 2 | 36 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.016 kg |
