Schneider Electric CCT15553

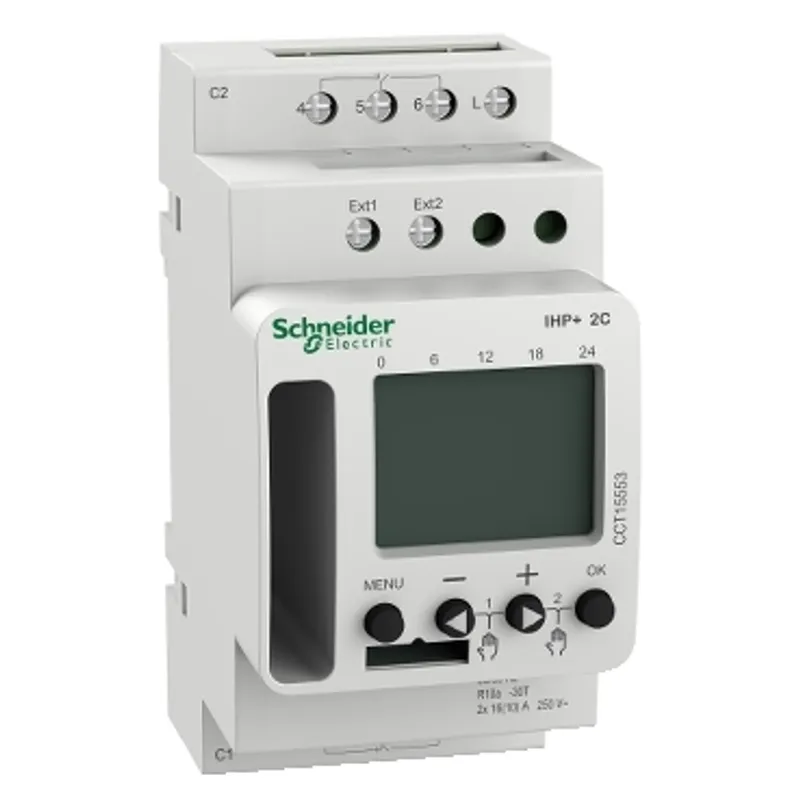

Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch

MPN
CCT15553
EAN
3606489524500
Category
IHP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric CCT15553?

IHP+ SMART digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible 2 channel output Programming could be done also with memory key and PC software User manual holder on product left side allows to reach document easily

Specifications

Specifications

range of productActi9
Product nameActi9 IHP
Device short nameIHP+
Product or component typeProgrammable digital time switch
Device applicationBuilding
Number of channels2
Available equipmentMemory stick
User languageEnglish, French, German, Dutch, Italian, Spanish, Portuguese, Danish, Norwegian, Swedish, Finnish
Load typeIncandescent lamp: 2600 W, halogen lamp: 2600 W, non-corrected fluorescent tube: 2600 VA, serial-compensated fluorescent tube: 2600 VA, parallel compensated fluorescent lamp: 400 VA (48 µF), compact fluorescent lamp: 400 W, < 2 W LED lamp: 25 W, > 2 W LED lamp: 200 W
Maximum power consumption in W0.5 W standby
Maximum switching current10 A - 250 V AC pf = 0.6, 16 A - 250 V AC pf = 1
Minimum switching current10 mA 230 V AC, 100 mA 24 V AC/DC
[Ue] rated operational voltage230 V AC +10 % -15 % at 50/60 Hz
Electrical insulation classClass II
Output typeDry contact
Accuracy+/- 0.25 s/day 25 °C
contacts typeC/O
Cycle duration24 hours + 7 days
Maximum number of switchings84
Minimum interval duration1 s
Function availableExternal input for override per channel, Code lock function, Holiday schedules, Automatic winter/summer time changeover, On/off switching times, Pulse programming, Cycle programming, Switch preselection
Control button type4 push-buttons
Display typeBacklit LCD
Information displayedOperating time counter
Backup time10 years time and program saving
Type of settingWeekly programming, Random program 2
Connections - terminals2 x 0.5…2.5 mm² screw terminals solid or flexible, 1 x 2.5 mm² screw terminals solid or flexible with sleeve
Mounting supportTH35 DIN rail conforming to EN 60715
Width45 mm
Height92.6 mm
Depth66.7 mm
Net weight141 g
MarkingCE
Overvoltage categoryClass 3
FunctionPulse programming, random function, external input for override
Absence for holidaysYes
Time changeoverAutomatic
Updated byNone
StandardsEN 60730-2-7:2010
Ambient air temperature for operation-30…55 °C
ambient air temp for storage/transportation-30…70 °C
Relative humidity90 %, non-condensing
IP degree of protectionIP20

Packaging

Package 11 PCE, 13.000 cm × 8.000 cm × 6.600 cm (L × W × H), 184.000 g
Package 240 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.852 kg
