Schneider Electric CCT15365

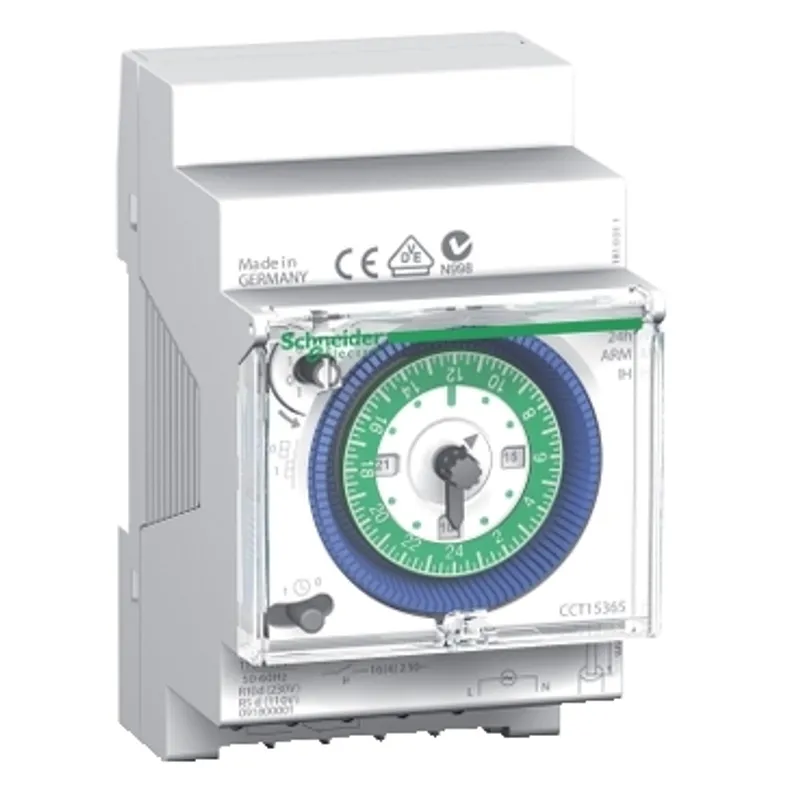

Acti9 - IH - mechanical time switch - 24 h - 150 h memory
- MPN
- CCT15365
- EAN
- 3606480179587
- Category
- IH
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric CCT15365?
IH mechanical time switch Width of 54mm (6 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on daily level Swiching cycle is 24 h (daily) The minimum time between 2 switching operations is 15 minutes with the number of 48 On and 48 Off Savings on mains cut off with battery reserve: 200 hours Manual override is possible 1 channel output
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Device application | Building |
| Load type | 230 V AC halogen lamp 1000 W, 230 V AC incandescent lamp 1100 W, 230 V AC fluocompact lamp 600 VA, Parallel-corrected fluorescent tube 2 x electronic ballast 40 W 12 µF, Compact fluorescent lampelectronic ballast 25 W, LED lamp < 2 W 20 W, LED lamp > 2 W 180 W |
| Cycle duration | 24 h |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 15 min |
| Type of setting | Manual time changeover |
| Measurement accuracy | +/- 1 s/day 20 °C |
| Power consumption in W | 0.5 W |
| Maximum switching current | 16 A - 250 V AC pf = 1, 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 110...230 V AC at 50...60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Battery life | 6 year(s) |
| Backup time | 150 h time and program saving 230 V AC, 75 h time and program saving 110 V AC |
| Mounting support | DIN rail |
| 9 mm pitches | 6 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screwless terminals |
| Clamping connection capacity | 2 x 0.5...2 .5 mm² |
| Width | 54 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Net weight | 0.198 kg |
| Standards | EN 60730-1 |
| Ambient air temperature for operation | -20…55 °C |
| Pollution degree | 2 |
| IP degree of protection | IP20 conforming to EN 60529 |
Packaging
| Package 1 | 1 PCE, 10.500 cm × 6.500 cm × 7.500 cm (L × W × H), 152.000 g |
| Package 2 | 36 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.947 kg |
| Package 3 | 288 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 59.580 kg |
