Schneider Electric CCT15338

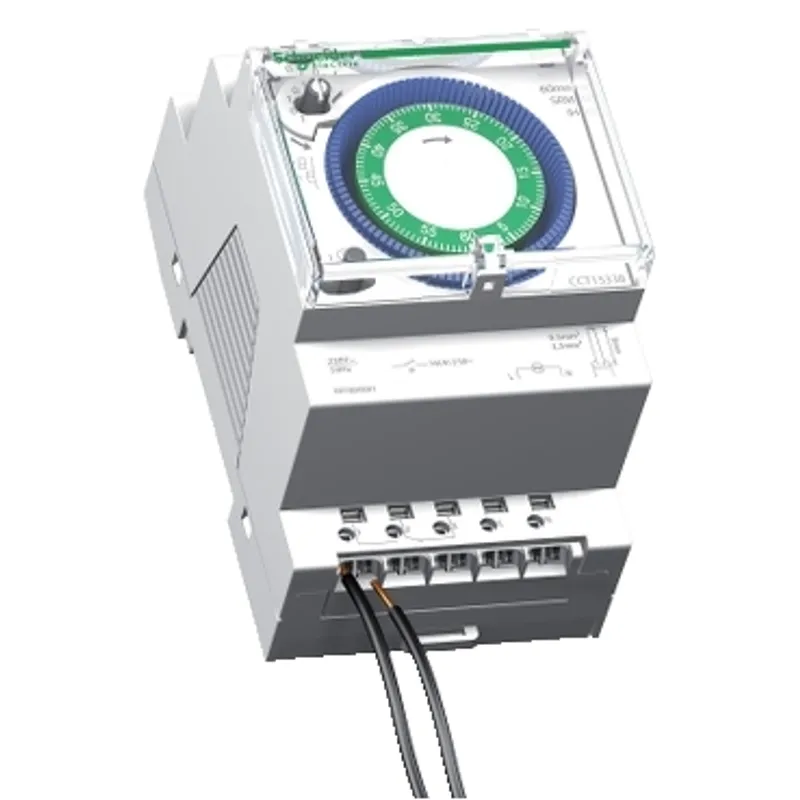

Acti9 - IH - mechanical time switch - 60 min - without memory
- MPN
- CCT15338
- EAN
- 3606480179563
- Category
- IH
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric CCT15338?
Acti 9 Mechanical time switch IH 60mn 1c SRM. Automatically switch On and Off loads according to the program entered by the user they operate on an hourly cycle. The same program is repeated hour after hour (IH 60mn). The program can be overriden On. Voltage rating (Ue): 230 V AC, +10 %,-15 %, 50/60 Hz. Consumption 1 VA. Operating temperature -20°C to +55°C. Width (9 mm modules): 6. Degree of protection: IP20B. Output contact rating 250 V: 16 A cos Phi 1. 4 A cos Phi 0.6. Number of switching operations: 48 On - 48 Off. Switching accuracy: ±1 s per day at 20°C. Programming by Captive segments: 96.
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Device application | Building |
| Load type | 230 V AC halogen lamp 1000 W, 230 V AC incandescent lamp 1100 W, 230 V AC fluocompact lamp 600 VA, Parallel-corrected fluorescent tube 2 x electronic ballast 40 W 12 µF, Compact fluorescent lampelectronic ballast 25 W, LED lamp < 2 W 20 W, LED lamp 2...8 W 180 W |
| Cycle duration | 60 min |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 37.5 s |
| Type of setting | Manual time changeover |
| Power consumption in W | 0.9 W |
| Maximum switching current | 10 A - 250 V AC pf = 1, 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230 V AC - 15...10 % at 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Mounting support | DIN rail |
| 9 mm pitches | 6 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screwless terminals |
| Clamping connection capacity | 2 x 0.5...2 .5 mm² |
| Width | 54 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Net weight | 0.184 kg |
| Standards | EN 60730-1 |
| Ambient air temperature for operation | -20…55 °C |
| Pollution degree | 2 |
| IP degree of protection | IP20 conforming to EN 60529 |
Packaging
| Package 1 | 1 PCE, 10.300 cm × 7.900 cm × 6.700 cm (L × W × H), 143.000 g |
| Package 2 | 36 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.676 kg |
